| Prod Model: |
K series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Enter Attribute Here (e.g.: Size): |
Enter Value Here (e.g.: 12 Inches) |
| Type: |
Professional Amplifier |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Post Amplifier |
| Element Number: |
Push-Pull Amplifier |
| Conductive Mode: |
AB |
| Usage: |
Lvie Concert, Touring, Stadium and Disco etc. |
| Sound Channel: |
2 Channels, 4 Channels |
| Output Number: |
8ohm, 2ohm, 4ohm |
| Voltage: |
Customized |
Product Description
Product Overview:

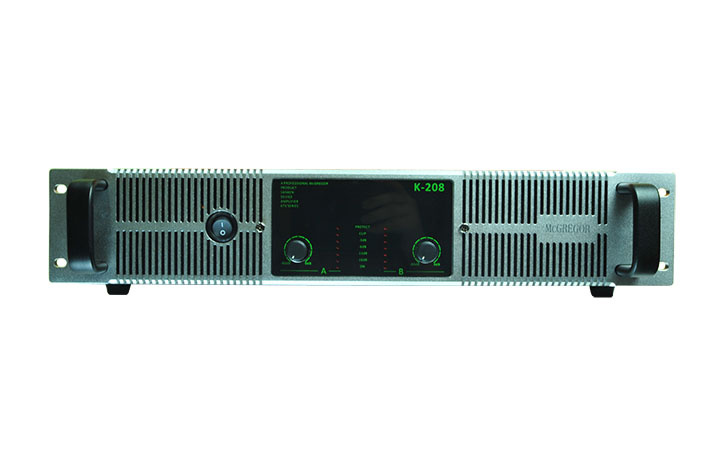

K series is perfect and special design for speech application, strongly recommend for KTV using, There are 3 models with power from 400-800W at 8ohms and perfectly match the speaker from 10-15''.
Application: church, conference, public audio application like the airport, train station, hospital and school etc...
The latest SANKEN devices has equipped in our K series which brought high HFE at the high current output and flat frequency response Therefore, it can drive on very hard load and provide very low non-linear distortion. That is why we can get the finest audio response in our K series.
Huge size capacitance tank and high current rectifier to be guaranteed the power what the speaker required. No matter what program you are playing. The tank is always here ready to output and under control.
Simple input functions with less components to achieve the solid, reliability, valuable amplifier. Save your money and satisfy for all of your requirement.
Technical Specfications:
| Item | Model | K208 | K206 | K204 |
| Controls | Power
Level
Mode
Sensitivity
Limiter
Filter
Ground Lift
30Hz Low Cut |
On-Off, On Front Panel
-80dB~0dB, On Front Panel
N/A
N/A
N/A
N/A
N/A
N/A |
Indicators | | Green LED on the front panel
Green LED on the front panel
Red LED on the front panel
Red LED on the front panel
N/A |
| Input& Outputs | Input Connects
Input Impedance
Output Connectors
Output DC Offset | XLR-F, XLR-M
10kΩ unbalanced, 20kΩ balanced
Speakon
3mV |
| Protection | Clip Limiter, Short Circuit, Thermal, DC Voltage, Soft Start, EMI Filter, Subsonic Signal |
| Frequency Response | 20Hz~20kHz, +/-0.5dB |
| S/N Ratio, Unweighted | | 97dB | 95dB | 92dB |
| THD (At Half Rated Power) | 0.06% |
| Damping Factor (8 ohm20-400Hz): | >1000 |
| Crosstalk(Below -3dB Rated Power) | 80db |
Gain (at max. Level, 0.775V,
+/-5%) | 37.7dB 36.3dB |
| SlewRate(Below -3dB Rated Power) | 20V/Us |
| Output power | 8 ohm Dual 750W 550W 350W
4 ohm Dual 1230W 900W 570W
2 ohm Dual 1650W 1220W 770W
8 ohm Bridge 2460W 1800W 1140W
4 ohm Bridge 3300W 2440W 1540W |
| Required AC Mains | 220Vac 50~60Hz |
