| Prod Model: |
FP series |
| Markets: |
Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Professional Amplifier |
| Usage: |
Lvie Concert, Touring, Stadium and Disco etc. |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Pre-amplifier |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Conductive Mode: |
AB |
Product Description
Product overview:
Hi-fidelity acoustic performance amplifier, with class AB circuit and precision MOSFET output devices, these amplifiers have been selling over 20 years and engineered in UK by McGregor, pure British product.

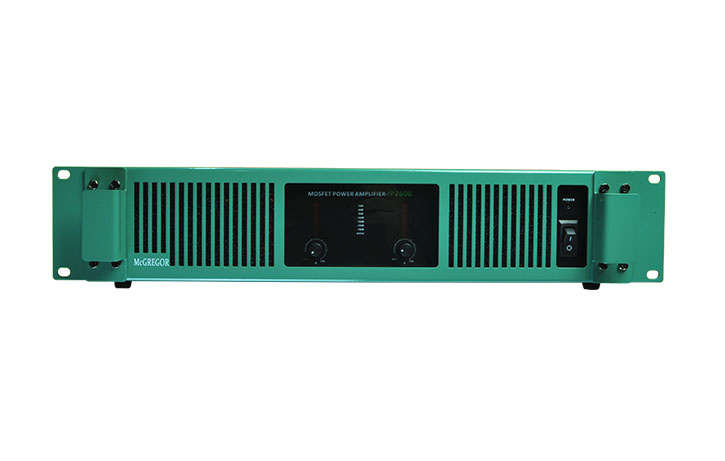

FP housed in 2U rack mount chassis with perfect toriodal transformer, power from 588w to 840w at 2ohms with 2 models.
FP will meet any application where it needs high acoustic performance, like high-class bar, coffee shop and restaurant, small live concept, digital cinema, church etc.
The FP Series amps feature Automatic Clip Limiting (ACL) to protect connected drivers;; tunnel-cooled, high efficiency cooling and variable-speed DC fans to limit the operating temperature and extend amplifier life.
International standard copper be instead of recycled copper and perfect metal sheet to build the important components- toriodal transformer, it is the heart of the amplifier and it is where the power source. We had spent a few years to get the perfect parameter for audio application.
Supper linear output devices produce extreme good high frequency performance and deep bass.
Very simple circuit design base on the 40 years experience to select the most suitable parts and PCB layout for 100% perfect design
Technical Specifications
|
Item | FP2600 | FP2400 |
| Frequency Response | 20Hz~20KHz,+/-0.5dB |
| S/N Ratio, Unweighted | 97dB | 97dB |
| THD (At Half Rated Power) | 0.08% | 0.08% |
| Damping Factor (8 ohm20-400Hz) | >1000 |
| Crosstalk(Below -3dB Rated Power) | 85dB |
| Gain (at max. Level,0.775V,+/-5%) | 38.2dB | 36.7dB |
| SlewRate(Below -3dB Rated Power) | 20V/Us |
| Output power | 8 ohm Dual | 500W | 350W |
| 4 ohm Dual | 700W | 490W |
| 2 ohm Dual | 840W | 588W |
| 8 ohm Bridge | NA | NA |
| 4 ohm Bridge | NA | NA |
| Required AC Mains | 220Vac 50~60Hz |
|
| Dissipation Power At Idle | <20W |
|
| Controls | Power | On-Off, On Front Panel |
| Level | -80dB~0dB, On Front Panel |
| Mode | N/A |
| Sensitivity | N/A |
| Limiter | Built-in |
| Filter | N/A |
| Ground Lift | N/A |
| 30Hz Low Cut | N/A |
| Indicators | Power | Green LED on the front panel |
| Signal | Green LED on the front panel |
| Protection | Red LED on the front panel |
| Clip | Red LED on the front panel |
| Bridge | N/A |
| Input& Outputs | Input Connects | XLR-F, XLR-M |
| Input Impedance | 10KΩ unbalanced, 20KΩ balanced |
| Output Connectors | Speakon |
| Output DC Offset | 3mV |
| Protection | Clip Limiter, Short Circuit, Thermal, DC Voltage, Soft Start, EMI Filter, Subsonic Signal |
| Contruction | Material | Steel Chassis |
| Cooling | Force-Cooling System, One Variable Speed Fans, One extra for PSU |
| Unit Dimensions | 483*89*320mm |
| Packing Dimensions | 590*420*160mm |
| Net Weight | 16.0KG | 14KG |
| Shipping Weight | 17.5KG | 15.5KG |
| AC Fuse |
| T10A250Vac | T10A250Vac
|
McGregor Amplifier China, we are the manufacturer had made profession amplifier more than ten years export experience.
In 2012, we got the famous professional amplifier brand McGregor Amplification in UK(founded in 1974s) authorize the only factory can produce their amplifier in China and sell amplifiers all over the world. All the production will be tested qualified by McGregor.
Now, we have 7 series of amplifiers, EPC, MA, ST, SP, FP, Ci, K series, MA and ST are big power items, SP, FP, Ci Series are perfect sound AMP from British.
We also accept OEM and ODM, we made OEM for OHM. UK., BELL. DE, AD-SYSTEM. DE, Studio Master.
We can guarantee the quality, promise offering good quality for you.
