| Prod Model: |
TF43014B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LCD Drive Mode: |
Multiplex Drive LCD Module |
| Touch Screen Type: |
Resistive |
| Digital LCD Module Type: |
Timing Module |
| Type: |
Graphic |
| Display Technology: |
TFT |
| Usage: |
Small-sized LCM |
| Viewing Angle: |
TN＋FILM |
| Response Time: |
25ms |
| Customized: |
Customized |
Product Description

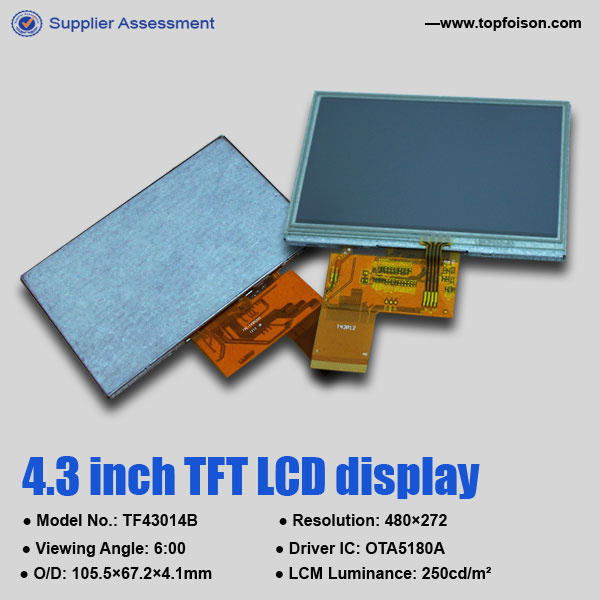

4.3'' TFT LCD display 480*272 with resisitive touch panel
The TF43014B-WXIT model is a color TFT LCM and with touch panel. This module has a 4.3 inch diagonally measured active area with WQVGA(480 horizontal by 272 vertical pixel array). Each pixel is divided into red, green, blue dots which are arranged in vertical stripe.
Specifications:
Size: 4.3"
Resolution: 480× 272
Connect Type: Plug-in Type
Viewing Direction: 6: 00
Outside Dimensions:
105.5mm(W)× 67.2mm(H)× 4.1mm(D)
Active Area: 95.04mm(W)× 53.86mm(H)
TP Active Area: 99.3mm(W)× 57.6mm
Driver IC: ILI6480
PIN No.: 40
LED Connect Type: 10LEDs
BL Luminance: 5000 CD/M²
LCM Luminance: 300-350 CD/M²
Input signals: 24 Bit compatible RGB I/F
We are professional TFT LCD manufacturer with our own factory in Shenzhen China. We have our own professional R&D groups specialized in a wide range from TN/STN/FSTN/OLED/Capacitive touch panel&Resistive touch panel/Plastic moulding customization. All the products produced in our company enjoys the most advanced production craft and technology as well as the strictly ISO quality management system which widely used in the mobile phone, car, industrial products, medical treatments and consumer area and so on.
