| Prod Model: |
TF35021A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 2.8 Inch TFT Screen: |
240*320 LCD Display Module |
| Type: |
TFT |
| Application: |
Indoor |
| Aspect Ratio: |
4:3 |
| Widescreen: |
Widescreen |
| Response Time: |
30ms |
| 3D: |
Not 3D |
| Feature: |
IPS LCD Display |
| Optimum Resolution: |
320*480 |
| Screen Size: |
3.5inch |
| Interface Type: |
16 Bit Compatible 8080 I/F |
Product Description

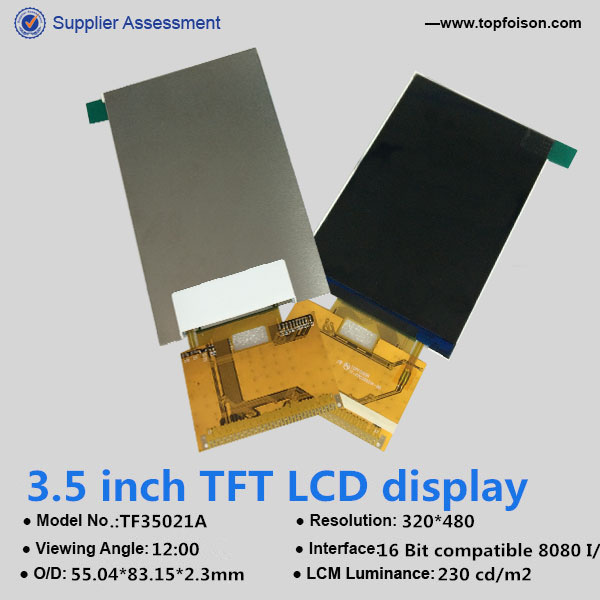

Item: 3.5inch LCD panel display with 320*480 TFT lcd module
Resolution: 320*480
Inserting Mode: Put-in Type
Viewing Angle: 12: 00
Interface: 16 Bit compatible 8080 I/F
Outline Dimension: 55.04mm(W)× 83.15mm(H)× 2.3mm(D)(Typ)
Active Area: LCD--- 48.96mm(W) × 73.44mm(H)
Driver IC: ---ILI9488
PIN Nos.: 37
LED Connect Mode: 6LEDs in series
Operating Voltage: -0.3~4.6V
Operating temperature: -20~70° C
Storage temperature -30~80° C
Backlight Luminance: 4500 CD/M2
LCM Luminance: 230 CD/M2
LCM Brightness Uniformity: 80
More details, pls contact www.topfoison.com and we will send you datesheets.
We are professional TFT LCD manufacturer with our own factory in Shenzhen China. We have our own professional R&D groups specialized in a wide range from TN/STN/FSTN/OLED/Capacitive touch panel&Resistive touch panel/Plastic moulding customization. All the products produced in our company enjoys the most advanced production craft and technology as well as the strictly ISO quality management system which widely used in the mobile phone, car, industrial products, medical treatments and consumer area and so on.
