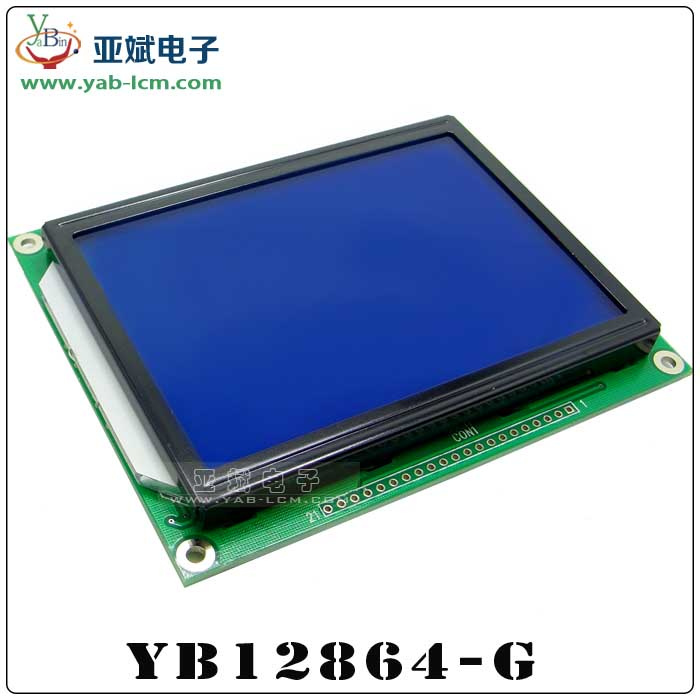

Yb12864G Display Module Optional Lattice Screen 4.2 Inches

Yb12864G Display Module Optional Lattice Screen 4.2 Inches
Price: US $ 10.55-12.38/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T,Paypal
Prod Model: YB12864G
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Working Voltage: 5vand3.3V
Usage: Small-sized LCM
Digital LCD Module Type: Counting Module
Touch Screen Type: Resistive
Type: LCM
Response Time: 1ms
Display Technology: STN
DOT-Matrix Graphic LCD Module Type: Row/Column-Driven
LCD Drive Mode: Static Drive LCD Module
Customized: Customized
Viewing Angle: 6:00

Product Description

12864G





Gross Weight (kg)

ManufacturerYaBin
Series NumberYB12864G
Display Format128*64 Dots
Outline Dimension107.0*85.0*12.0mm
Visual Area88.0*60.0mm
Active Area83.15*54.35mm
Diagonal Size4.19 inch
Dot (Pixel) Size0.6*0.8mm
Dot (Pixel) Pitch0.65*0.85mm
IC PackageCOB
IC or EquivalentKS0107/S6B0107/SBN6400 or EQV
Interface6800 8-bit Parallel
Display TypeSTN/FSTN
Sunlight ReadableNo
Touch Panel OptionalNo
Contrast Ratio(Typ)No
Viewing Direction6:00
LED Backlight ColorBlue /Yellow Green /Gray
AppearanceWhite on Blue/Black on Yellow Green/White on Gray
Power Supply(Typ)5V
Backlight Current (Typ)75mA
Operating Temp-20ºC~70ºC
Storage Temperature-30ºC~80ºC
If accept customizedYes
RoHS ComplianceYes

12864G















1VDD5.0V,5.0V
2VSS0V

3VO

LCD()
4RSH/L  :  :
5R/WH/L/      :     :
6EH.H→L

7-14DBO-DB7H/L

15CS1L1,,64×64
16CS2L2,,64×64
17/RSTL,
18Vout



19LEDA5.0V



20LEDK0V
21ON/OFF

H:EL backlight on
L:EL backlight off
When LED backlight are
not used
