Prod Model: YB19264A
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Display Format: 192X64 Dots
Outline Dimension: 130*65.0*12.5mm
Visual Area: 104*39.0mm
Active Area: 97.486*32.462mm
Diagonal Size: 4.37 Inch
IC Package: COB
IC Or Equivalent: Ks0107/S6b0107/Sbn6400 or Eqv
Appearance: Blue/Yellow Green/Grey
Power Supply(Typ): 3.3V/5V
Backlight Current (Typ): 75mA
Usage: Small-sized LCM
Digital LCD Module Type: Counting Module
Type: LCM
Response Time: 2ms
Display Technology: COB
LCD Drive Mode: Static Drive LCD Module
Customized: Customized

Product Description

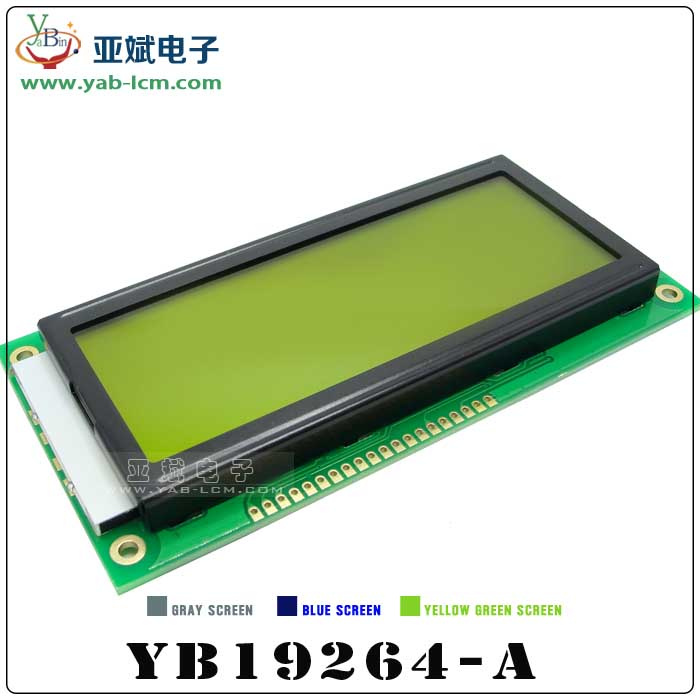

graphic 192X64 lcd display


1.Product Description

ManufacturerYaBin
Series NumberYB19264A
Display Format192x64 Dots
Outline Dimension130*65.0*12.5mm
Visual Area104*39.0mm
Active Area97.486*32.462mm
Diagonal Size4.37'
Dot (Pixel) Size0.458*0.458mm
Dot (Pixel) Pitch0.51*0.51mm
IC PackageCOB
IC or EquivalentKS0107/S6B0107/SBN6400 or EQV
Interface6800 8-bit Parallel
InterfaceParallel
Display TypeSTN/FSTN
Sunlight ReadableNo
Touch Panel OptionalNo
Contrast Ratio(Typ)No
Viewing Direction6:00
LED Backlight ColorBlue /Yellow Green /Gray
AppearanceWhite on Blue/Black on Yellow Green/White on Gray
Power Supply(Typ)3.3V/5V
Backlight Current (Typ)75mA
Operating Temp-20ºC~70ºC
Storage Temperature-30ºC~80ºC
If accept customizedYes
RoHS Compliance
Yes
