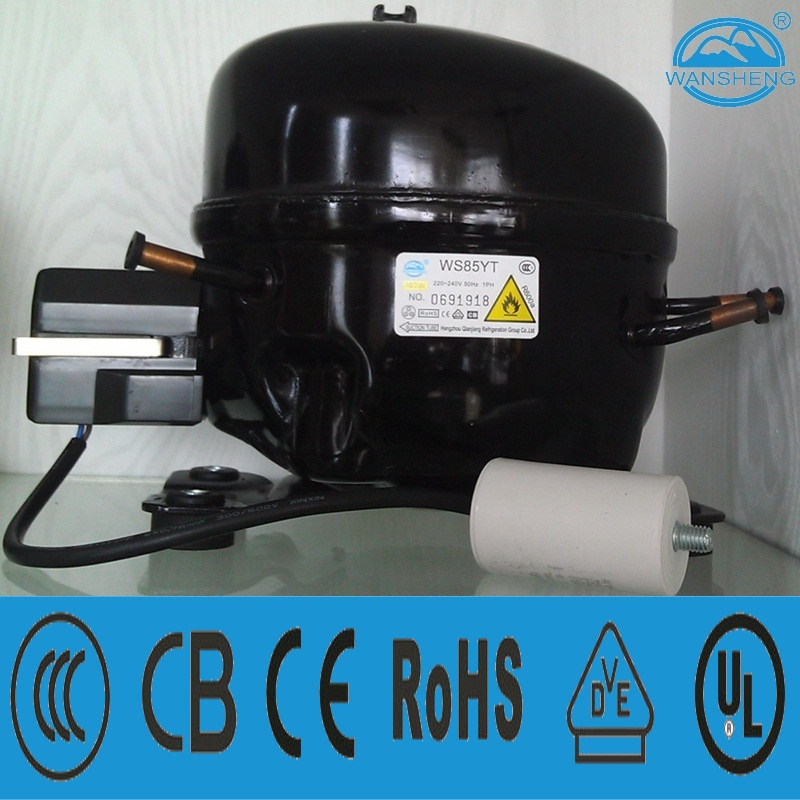

Ws85yt R600A Refrigeration Compressor for Refrigerator
| Price: |
US $ 1-100/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
WS85YT-6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Piston |
| Performance: |
Low Noise |
| Drive Mode: |
Electric |
| Power Source: |
AC Power |
| Configuration: |
Stationary |
| Material: |
Copper |
| Piston Type: |
Closed |
| Lubrication Style: |
Lubricated |
| Application: |
Low Back Pressure Type |
| Mute: |
Not Mute |
Product Description
- Starting device is PTC
- WT series WS85YT application in refrigerators, freezers, display cabinets, wine chests, etc.
- Especially suit for wine chests
- WS85YT has passed CCC/CB/CE/VDE certification
- COP 1.8
- Motor Type is RSCR
- Use R600a refrigerant
- Compressor working condition: Wansheng R600a series compressors can start and run under the 0.25Mpa(gauge) balance pressure and 85% rated voltage; under special conditions voltage low to 165V and high to 242 is allowable.
- Strictly processed refrigerant oil has been authorized by Wansheng Compressor to add into R600a compressor. It is not allowed to pour out or add randomly, otherwise all technical assurance would be invalid.
- High efficiency
- High stability
- High reliability
- Good start-up performance
- Low vibration
- Low noise
- WS85YT voltage application from 220 to 240V
- Frequency only for 50HZ
- Low Back Pressure
| R600a WANSHENG Low Back Pressure (LBP) Compressor |
| WANSHENG Low Back Pressure (LBP) Compressor | Test Conditions | LBP ASHRAE | Subcooling Temp.: 32.2°C |
| Evap. Temp.: -23.3°C | Cond. Temp.: 54.4°C |
| Amb. Temp.: 32.2°C | Suction Temp.: 32.2°C |
Model |
Power Supply
(V/Hz) | Displacement
(cm³) | Rated Power (W) |
Nominal Power
(HP) |
Cooling Capacity
(W) |
COP Power Efficiency
COP (W/W) |
Motor Type |
Starting Device |
Starting Capacitor
(μF) |
Running Capacitor
(μF) |
Cooling Type |
WS85YT
(WT) | 220-240V~50Hz | 8.5 | 81 | 1/9 | 145 | 1.8 | RSCR | e-PTC | / | 4 | S |
Founded in December 1994, Hangzhou Qianjiang Compressor Co., Ltd., is specialized in producing hermetic compressors for refrigerators, freezers and various household appliances. Due to attaching great importance to technical innovation and development of new products, the company owns a technical team to pursue the excellent and constant self-development.
