| Prod Model: |
WS98YV-7 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
1. High efficiency
2. High stability
3. High reliability
4. Good start-up performance
5. Low noise and vibration
6. Voltage application from 220 to 240V
7. Frequency: 50Hz
8. Use R600a refrigerant
9. WS series compressor use R600a and R134a refrigerants, work within a widely voltage range (220 to 240V/50Hz, 110 to 120V/60Hz) that meet the needs of different customers
10.WS98YV has passed CCC/CB/CE/VDE certification
11. RSCR motor
12. Application in refrigerators, freezers, display cabinets, wine chests and more
13. Compressor suitable for Cold room

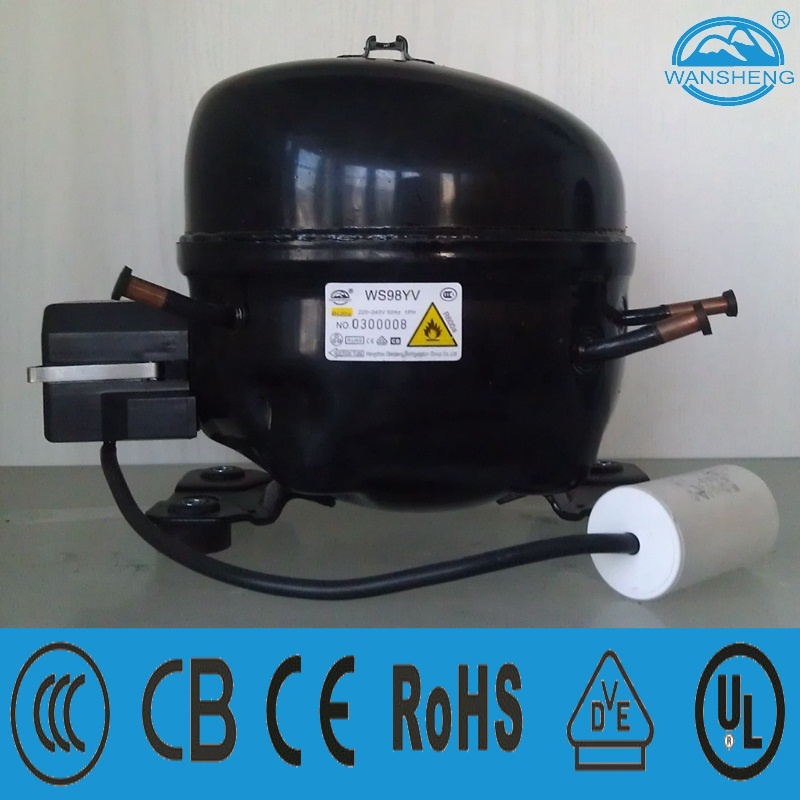

R600a WANSHENG Low Back Pressure (LBP) Compressor |
| R600a WANSHENG Low Back Pressure (LBP) Compressor | Test Conditions | Evap. Temp.: -23.3°C |
|
| Cond. Temp.: 54.4°C |
|
|
|
| Amb. Temp.: 32.2°C |
|
| Suction. Temp.: 32.2°C |
|
|
|
| Subcooling Temp.: 32.2°C |
|
| LBP ASHRAE |
|
|
|
| Model | Displacement
(cm³) | Cooling Capacity (W) | Rated Power (W) | Nominal power (HP) | COP (W/W) | Motor Type | Starting Capacitor
(μF) | Running Capacitor
(μF) | Starting Relay | Cooling Type |
| WS series220-240V~50Hz |
| WS98YV | 9.8 | 170 | 100 | 1/7 | 1.7 | RSCR | / | 4 | PTC | S |
Founded in December 1994, Hangzhou Qianjiang Compressor Co., Ltd., is specialized in producing hermetic compressors for refrigerators, freezers and various household appliances. Due to attaching great importance to technical innovation and development of new products, the company owns a technical team to pursue the excellent and constant self-development.
