| Prod Model: |
BM-8210 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Signal Transmission: |
Wireless |
| Application: |
Voice |

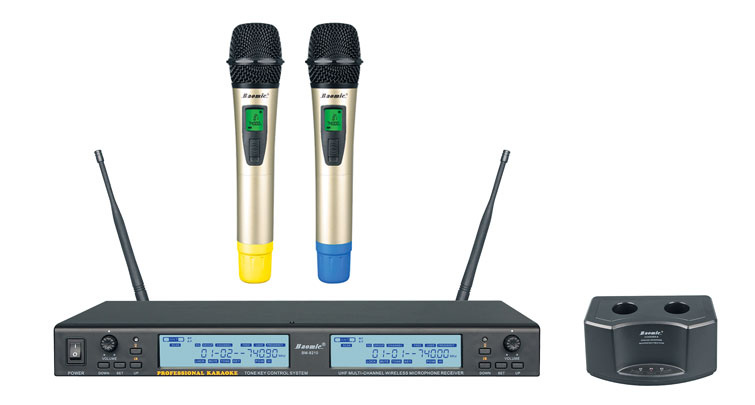

Product Description
MAIN FEATURES
Using UHF 700-870 Mhz band to avert interferencing frequency
Adopt advanced digital pilot technology, preset 30 group frequencies,
8 frequencies in each group, it can ensure 200 sets use together without interference
Automatic frequency scan feature searches for available frequencies
PLL system. Preset 99 non-interfered channels, adjustable 600 free frequencies
SMT technology
Splendid LCD display, shows the RF level, AF level, and microphone battery voltage
It can adjust the transmitter power (High/Low) from the receiver
Handheld microphone rechargeable design
Ideal distance, 40m
Designed for KTV rooms and stage use
SPECIFICATION
Comprehensive Performance
Carrier Frequency: UHF700-870MHz
Frequency Stabilization: <± 30ppm
Dynamic Range: >100dB
Total Harmonic Distortion: <0.5%
Frequency Response: 40Hz-15Hz± 3dB
Audio Output Level: Balance 400mV
Unbalance 400mV
Receiver
Power Supply: DC15-17V
Consume Power: 3 WATT
Signal/Noise Ratio: >95dB
Image&Spurious Rejection: >80dB
Border Upon Channel Rejection: >80dB
Receiving Sensitivity: 5dBuV
De-Emphasis: 50uS
Handheld Microphone
Transmitter Power: 30mW
Modulation Type: FM
Deviation: 40KHz
Spurious Emission: >60dB
Battery Voltage: 3V (2x1.5V AA Battery)
Continuous Using: 8 hours
Our comapny is one of the most powerful microphone supplier in mainland China, and we leads the microphone market & technology; We have developed the first UHF wireless mics, the first true diversity receiver, the first LCD display, and the first auto-scan system etc.
We have acquired mature technical skills, abundant working experience, advanced manufacturing instruments( such as HP vector analyzer & communication testing instrument, Motorola high frequency testing instrument, SMT technology and so on), and modernized management. And for those reasons, our products are very popular and well-accepted in the whole world, our monthly average export amount has achieved 12, 000PCS last year.
