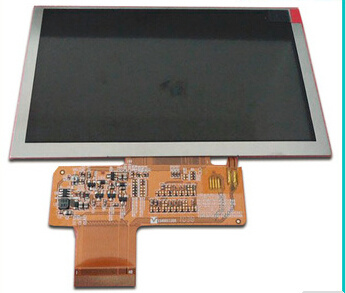

Tianma TM050rvhg01 800X480 Resolution 5.0 Inch TFT LCD Display with Tp Touch Panel for Portable GPS&Laptop

Tianma TM050rvhg01 800X480 Resolution 5.0 Inch TFT LCD Display with Tp Touch Panel for Portable GPS&Laptop
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 100/Piece
Pay Type: T/T
Prod Model: TM050RVHG01
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inch: 5inch
Application: Graphic Design
Feature: LED Backlight Display
Type: TN
Widescreen: Widescreen
Response Time: 20ms
3D: Not 3D
Interface Type: VGA
Screen Size: 5inch
Aspect Ratio: 15:9
Optimum Resolution: 800*480

Product Description


Applications : Portable navigation systems, handheld computers
Working temperature : -20 ~ 70 ° C
Storage temperature : -30 ~ 80 ° C
Panel size: 5.0 inches

Point Resolution : 800 (RGB) × 480 (WVGA)
Pixel density : 188 PPI
Pixel arrangement : RGB vertical stripe
Aspect Ratio : 15: 9 ( width: height )
Physical shape: flat rectangular display
Dot pitch : 0.045 × 0.135 mm ( horizontal * vertical )
Pixel pitch : 0.135 × 0.135 mm ( horizontal * vertical )
Surface treatment : Hard coating (6H)
Display area : 108.0 × 64.8 mm ( horizontal * vertical )
Viewable area : 109.0 × 65.8 mm ( horizontal * vertical )
Dimensions : 123.26 × 80.06 mm ( horizontal * vertical )
Dimensions : 4.75 ± 0.5 mm ( thickness )
Touch Screen: ( projected capacitive ) with touch screen

Surface protection: with cover

Display Mode : TN, often white display , transmissive
Panel Brightness : 300 cd / m2 (Typ.)
Contrast Ratio : 600: (. Typ) 1 ( transmission )
Display Color : 16.7M (8-bit)
Response time : 20 (. Typ) (Tr + Td) (ms)
Viewing angle : (. Typ) 70/70/50/70 (CR≥10) ( left / right / up / down )
Best viewing angle : 12 o'clock
White field change : 1.25 / 1.33 (Typ / Max..) (9 points)

Scanning Frequency : 60Hz
Driver IC : already bonding HX8264-D + HX8664-B
Lamp Location : side- light
Light source type : WLED
Interface Type: included in the panel signal interface

Signal categories : Parallel RGB
Signal categories : Parallel RGB (1 ch, 8-bit)
Panel Voltage : 3.3V (Typ.)


Specification Language : English
Specification version : Pre Ver1.0
Specifications Date: 2011--11--22
Screen Library Last updated: 2015-03-18 14:15





Yaosheng provide total solutions for LCD panels and modules. We support both monochrome STNs and full-color TFT LCDs. We provide full customized monochrome STN, and semi-customized TFT modules. We are supplying a wide variety of LCD modules to meet the ever-growing demands.

Yaosheng Solutions get strong support from Tianma, Truly, and Innolux, we provide flexible support to our customers, fast delivery, flexible MOQ, and competitive cost.

Please check the following website to find the products supported by us.

Our products include LCD panels of TN, STN, FSTN; LCMs with COG, COB, TAB; And TFT LCD modules.

Custom LCD Panels: Segment, icon, chracter, and mixed

Custom / Standard Character: 16X1, 16X2, 16X4, 20X2, 20X4, 24X2, 40X2, 40X4

Custom / Standard Graphic: 128X64, 128X128, 160X128, X160X160, 240X128, 240X64, 320X240

Semi-custom / Standard TFT Modules: 2.8", 3.5", 4.3", 4.7", 5.0", 7.0", 10.4"

All of our displays are RoHS compliant, which have been used in wide range of applications: Communication, Medical, Instrumentation, Metering, and Industrial applications.

We endeavour to serve our customers with Quality Products, Competitive Cost, Excelled Service, and Fast Delivery.
