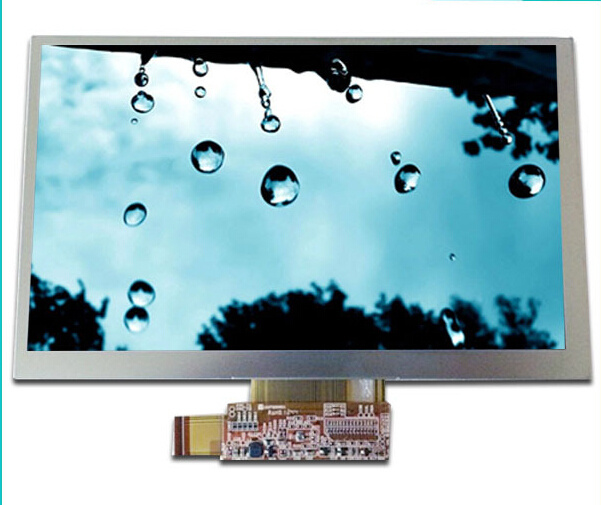

Tianma 7 Inch TFT LCD Display TM070rdh13 with Lower Price

Tianma 7 Inch TFT LCD Display TM070rdh13 with Lower Price
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 100/Piece
Pay Type: T/T
Prod Model: TM070RDH13
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
TM070rdh13: 7.0 Inch
Application: Indoor
Aspect Ratio: 16:9
Feature: Touch Display
Optimum Resolution: 1024x768
Type: TFT
Widescreen: Not Widescreen
Screen Size: 7.0 Inch

Product Description


Tianma 7 inch tft lcd display TM070RDH13 with lower price:
Features:
1)Surface:anti-glare;
2)Inversion show 360 degree;
3)Original guarantee;
4)Competitive prices;
5)Offer 12 months of warranty;
6)Original technology support.

Specification:

Model

TM070RDH13

Size
7.0"
Resolution (pixel)
800(RGB) x 480

Active Area(mm)

154.08 (W) x 85.92 (H)

Pixel Pitch (mm)

0.1926 (H) x 0.1790(V)

Display Mode

TM with Normally White

Uniformity(%)

75

NTSC(%)

50

Number of Colors

16.7M

Viewing Angle (R/L/U/L)

60/70/70/70

Brightness (cd/m²)
250
Contrast Ratio500:1
Response Time (ms)25(on+off)
Outline Dimension (mm)
164.9x100.0x5.7

Weight (g)

160

Light Source

LED

Temperature Range

operating:  -20 to +70°C
storage:     -30 to +80°C

Humidity

operation: 90  (%RH)
storage:    90  (%RH)

Surface Treatment

Anti-Glare

Electrical  Interface

RGB 24 bits with TCON

ROHS Compliance

ROHS Compliance

Yaosheng provide total solutions for LCD panels and modules. We support both monochrome STNs and full-color TFT LCDs. We provide full customized monochrome STN, and semi-customized TFT modules. We are supplying a wide variety of LCD modules to meet the ever-growing demands.

Yaosheng Solutions get strong support from Tianma, Truly, and Innolux, we provide flexible support to our customers, fast delivery, flexible MOQ, and competitive cost.

Please check the following website to find the products supported by us.

Our products include LCD panels of TN, STN, FSTN; LCMs with COG, COB, TAB; And TFT LCD modules.

Custom LCD Panels: Segment, icon, chracter, and mixed

Custom / Standard Character: 16X1, 16X2, 16X4, 20X2, 20X4, 24X2, 40X2, 40X4

Custom / Standard Graphic: 128X64, 128X128, 160X128, X160X160, 240X128, 240X64, 320X240

Semi-custom / Standard TFT Modules: 2.8", 3.5", 4.3", 4.7", 5.0", 7.0", 10.4"

All of our displays are RoHS compliant, which have been used in wide range of applications: Communication, Medical, Instrumentation, Metering, and Industrial applications.

We endeavour to serve our customers with Quality Products, Competitive Cost, Excelled Service, and Fast Delivery.
