| Prod Model: |
U601TD/U602TD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Amplify |
| Signal Transmission: |
Wireless |
| Directivity: |
Omni-direction |
| Transducer Principle: |
Electromagnetic Microphone |
| Wireless Technology: |
UHF |
| Output Impedance: |
50-1000Ω |
| Style: |
All Type |

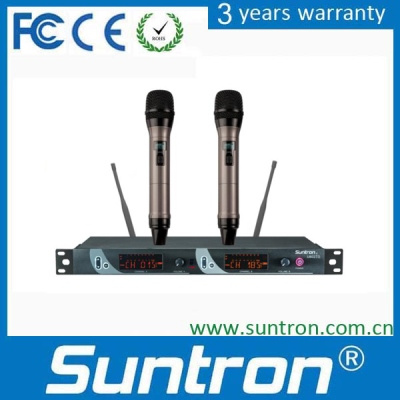

Product Description
The system is true diversity dual receiver, effective receive distance is up to 50-100m, distance is able up to 300m if match antenna amplifier. It supports 12pieces microphone use in one room without mutual interference. 100pieces microphone use in one building without mutual interference.
The series wireless microphone is able to select handheld, clip type, head worm type, conference mic, or mix and match by arbitrary, flexible combination.
Receiver technical parameter
Frequency range: 640-830MHz
Modulation method: Wide band FM
Adjustable range: 25MHz
Information channel quantity: Single channel machine 100pieces, dual channel machine 200 pieces
Information channel interval: 250KHZ
Frequency stability: ≤ ± 0.005%
Dynamic sufferingrange: 100dB
Maximum frequency deviation: ± 45KHZ
Audio response: 80HZ-18KHZ(± 3dB)
Compositive noise rate: >105dB
Compositive distortion: ≤ 0.5%
Working temperature: -10 degree centigrade to 40 degree centigrade
With LCD(dual channel machine with dual display): Display frequency/channel, receive signal electrical level etc.
ACT infrared transmit frequency signal to pocket and handheld microphone.
Receiver method: Quadratic frequency conversion superheterodyne
Middle frequency: The first middle frequency: 110MHZ, the second frequency 10.7MHZ
Wireless interface: BNC/50 ohm
Sensitivity: 12 dBµ V (80dBS/N)
Sensitivity adjust range: 12-32 dBµ V
Stray control: ≥ 75dB
Maximum output electrical level: +10 dBV
Selectable wireless microphone(transmitter): U601TD/U602TD separately select any of 1/2 wireless microphone.
