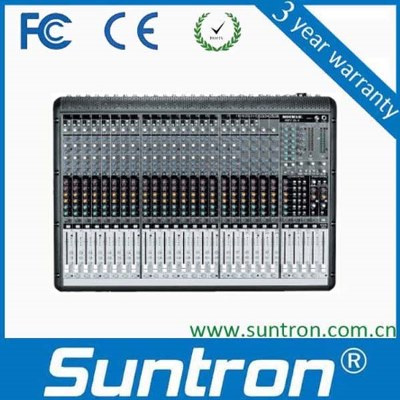

Suntron Dx Series 4 Sub Audio Mixer
| Price: |
US $ 750-1300/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
DX series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Noise: |
<95dB |
| Hi-Fi: |
Hi-Fi |
| Operation Mode: |
Button Control |
| Speaker Material: |
Metal |
| Application: |
Disco |
| Certification: |
FCC |
| THD: |
0.005%-0.01% |
Product Description
DX series audio mixer traits:
1)26 channel(DX34064)or 18 channel(DX26064)10 channel(DX18064)microphone input, 4 channel stereo input;
2) 4 band EQ;
3) 1 channel stereo output, 6 channel Aux output, 4 SUB Output;
4) Phantom power: 48V DC;
5) matrix 6X2.
Technical Specification:
Work Level:
Mic Input: 30dBu
Line Input: 21dBu
All other Input: 22dBu
Rated output:
Main Outs: +4dbu
All other Outs: +4dBu
Maximum Output: 22dBu
Frequency Response:
Mic Input to Main Output:
+0, -1db, <10Hz to 80 KHz
+0, -3db, <10Hz to 120 KHz
Connect Resistance:
Mic Input: < 2k ohms
Line Inputs: > 10k ohms
Outputs: > 100 ohms
Equalizer:
EQ (each band) +-15db
Mono Channel EQ
High: 12 KHz
High Mid sweep: 400Hz to 8 kHz
Low Mid sweep: 100Hz to 2 kHz
Low: 80Hz
Stereo Channel EQ
High: 12 KHz
High Mid: 2.5 KHz
Low Mid: 400Hz
Low: 80Hz
| Model | DX34064 | DX26064 | DX18064 |
| Channel | 26 Mono +4 Stereo | 18 Mono + 4 Stereo | 10 Mono + 4 Stereo |
| Channel EQ | 4 Band | 4 Band | 4 Band |
| AUX output | 6 | 6 | 6 |
| Return | 2 | 2 | 2 |
| Effector | / | / | / |
| Main output | 1 Stereo | 1 Stereo | 1 Stereo |
| SUB output | 4 | 4 | 4 |
| Phantom power | 48V DC | 48V DC | 48V DC |
| Compressor | 1 | 1 | 1 |
| Matrix | 6 X 2 | 6 X 2 | 6 X 2 |
GUANGZHOU SUNTRON ELECTRON Co., Ltd established in 1995, has the brands SUNTRON\VCOMTEK. We aiming to research and develop products of AV intelligent control system and audio public address system for more than 10 years.
Our main products: Conference system(discussion conference system, camera linkage tracking conference system, voting conference system, simultaneous interpretation system), AV centralized control system, matrix switch, AV peripherial interface device, professional audio products.
SUNTRON products are applied to all kinds of fields, such as multimedia audiovisual room, multimedia conference room, training center, multifunctional lobby, international conference center, command center etc, customers include Colleges, Governments, Military, Broadcasters, Public Media, Professional Stereo etc...
"Innovative-Smart-Sure Success" is our concept of product research and development, we always adhere to provide value-added services to partners, provide efficient, , practical, intelligent, innovative products for our users.
Our company adheres to the concept of hiring talented people in order to establish a culture of workplace collaboration. We stick to the concept of technology development and product innovation. We aim to build an innovative and competitive workforce in order to develop an outstanding team and a world renowned brand.
We have our own technical team who has been always researching and developing new products all the time. What is more, they can also solve customers' technical problem at any time, our after-service is in high quality.
In addition, our company has a high quality team of product R&D, sales, technical support. We always stick to the operation philosophy of "Technology first", "Products best", "Respect customers"and "Service upmost". After years of unremitting efforts of all our staff, we have gained the support and trust from our majority of users, our projects have been applied to all over our country and successfully developed the overseas market.
SUNTRON has been a more and more influential brand, we are sure that we can pass positive energy to the development of AV industry.
