Prod Model: |
WS7011H-6 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Color: |
Black |
Status: |
New |
Type: |
Piston |
Performance: |
Low Noise |
Drive Mode: |
Electric |
Power Source: |
AC Power |
Configuration: |
Stationary |
Material: |
Copper |
Piston Type: |
Closed |
Lubrication Style: |
Lubricated |
Product Description

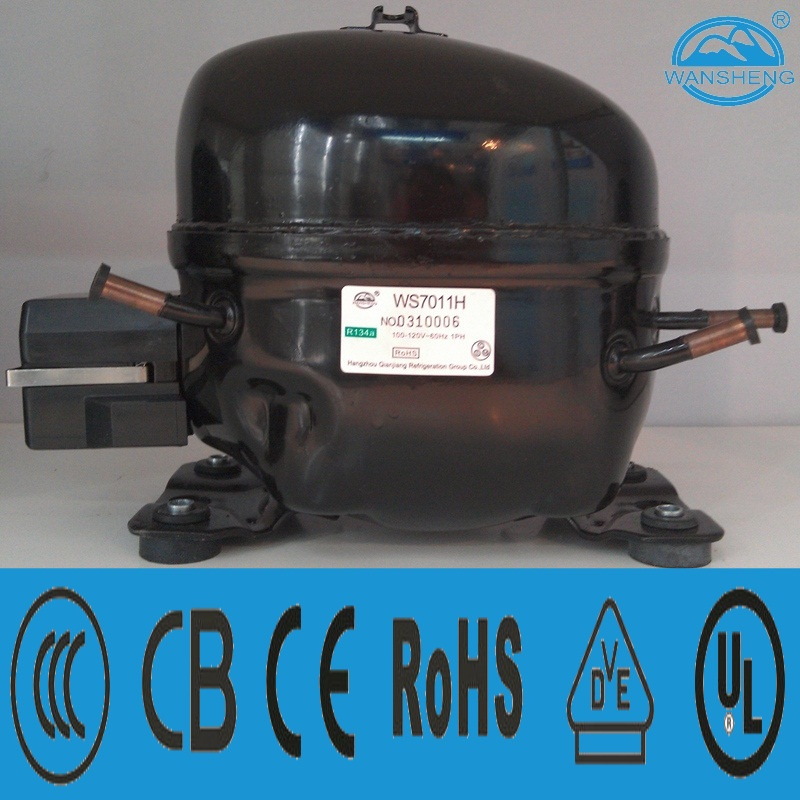

R134a WANSHENG Low Back Pressure (LBP) Compressor |
R134a WANSHENG Low Back Pressure (LBP) Compressor | Test Conditions | Evap. Temp.: -23.3°C | | | Cond. Temp.: 54.4°C | | | |
Amb. Temp.: 32.2°C | | | Suction. Temp.: 32.2°C | | | |
Subcooling Temp.: 32.2°C | | | LBP ASHRAE | | | |
Model | Displacement (cm³) | Cooling Capacity (W) | Rated Power (W) | Nominal power (HP) | COP (W/W) | Motor Type | Starting Capacitor (μF) | Running Capacitor (μF) | Starting Relay | Cooling Type |
WS series 100-120V~60Hz |
WS7011H | 7.0 | 245 | 181 | 1/4 | 1.35 | RSIR | / | / | PTC | S |
1. Frequency: 60HZ
2. Application in Medium-Large size refrigerator, freezer, cabinet, liquor cabinet, vending machine, ice-making machine, etc.
3. Especially suit for super liquor cabinet compressor
4. Low sound and vibration
5. Reliable starting performance, Strong load capacity
6. High efficiency and reliability
7. Delivery time: Within 30 days after the receipt of payment
8.1PC/Carton, 120PCS/Pallet, 2160PCS/FCL(1*20GP)
9. WS7011H has passed CB certification
10. Use R134a refrigerant
11. Low voltage application from 100 to 120V
Founded in December 1994, Hangzhou Qianjiang Compressor Co., Ltd., is specialized in producing hermetic compressors for refrigerators, freezers and various household appliances. Due to attaching great importance to technical innovation and development of new products, the company owns a technical team to pursue the excellent and constant self-development.
