| Prod Model: |
QD65YG-6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Status: |
New |
| Type: |
Piston |
| Performance: |
Low Noise |
| Drive Mode: |
Electric |
| Power Source: |
AC Power |
| Configuration: |
Stationary |
| Material: |
Copper |
| Piston Type: |
Closed |
| Lubrication Style: |
Lubricated |
Product Description
1. Starting device is PTC
2. Frequency only for 50HZ
3. Voltage application from220 to 240V
4. Application in refrigerator, freezer, liquor cabinet, display cabinet and other medium sized refrigeration equipments.
5. A wide range voltage application
6. Small size
7. High efficiency
8. High reliability
9. Good start-up performance
10. Low sound
11. Low vibration
12. COP is 1.45
13. The cooling capacity 100W
14. Nominal power is 1/11 HP
15. RSIR Motor
16. Cooling type Static
17. QD65YG has passed CCC/CE/CB/VDE certification
18. LBP
19. The height of WT series QD65YG is 166MM
20. Compressor should be stored in a dry and drafty place.
21. Compressor should not be tilted or inverted in storage, transportation and installation; Collision should be avoided.
22. The accessories (eg. Starter, thermal protection etc. ) are nor installed into the compressor while delivery, but in the accessory case. Be sure to select the corresponding starter and thermal protection models rightly.

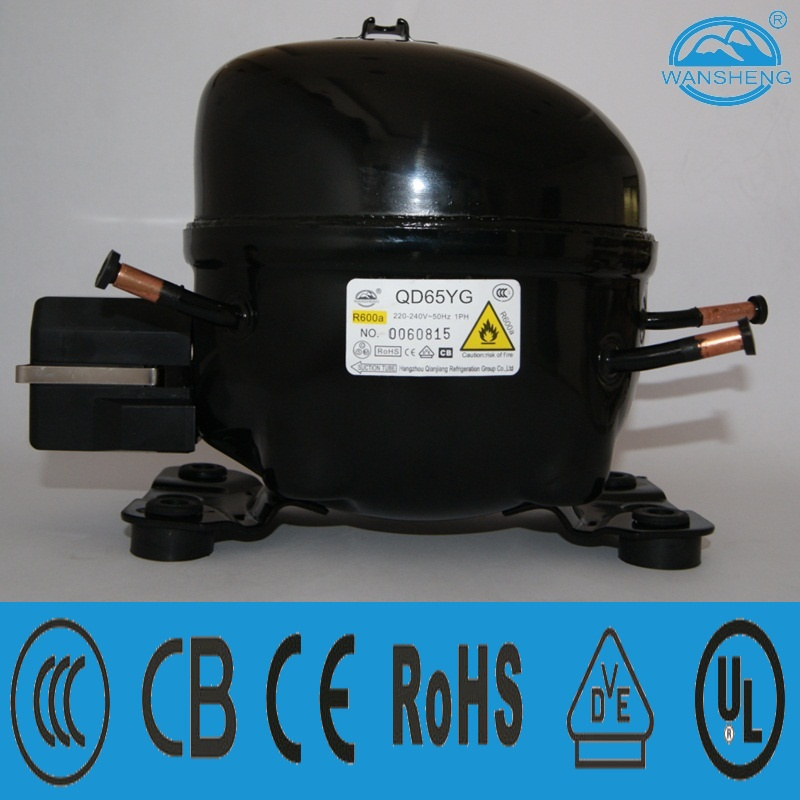

23. R600a refrigeration compressor for sale QD65YG of WT series
24. Use R600a refrigerant
25. OEM is welcome
26. Cheap price provided for the compressor QD65YG makes the customers better choice
27. Experienced staff ensure produce of the compressors with good quality
WANSHENG R600a Low Back Pressure (LBP) Compressor |
Test Conditions | LBP ASHRAE | Subcooling Temp.: 32.2°C |
| Evap. Temp.: -23.3°C | Cond. Temp.: 54.4°C |
| Amb. Temp.: 32.2°C | Suction Temp.: 32.2°C |
| Model | Nominal Power
(HP) | Cooling Capacity
(W) | COP Power Efficiency
COP (W/W) | Motor Type | Starting Device | Starting Capacitor
(μF) | Running Capacitor
(μF) | Cooling Type |
| WT Series 220-240V~50Hz |
| QD65YG | 1/11 | 100 | 1.45 | RSIR | PTC | / | / | S |
Founded in December 1994, Hangzhou Qianjiang Compressor Co., Ltd., is specialized in producing hermetic compressors for refrigerators, freezers and various household appliances. Due to attaching great importance to technical innovation and development of new products, the company owns a technical team to pursue the excellent and constant self-development.
