P16 Full Color LED Display

P16 Full Color LED Display
Price: US $ 650-1050/Square Meter
Trade Terms: FOB,CFR,CIF
Min Order: 1/Square Meter
Pay Type: L/C,T/T,Money Gram,Western Union
Prod Model: P16
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cabinet Size Is Custom Made: 1024X768mm, 768X768mm, 1024X1024mm
Tube Chip Color: Full Color
IP Rating: IP65
Pixel Configuration: 1R, 1G, 1B
Pixel Pitch: 16mm
Display Function: Video Display
Scanning Mode: Static Scan
Certification: CCC
Pixel Density: 3906
Average Power Consumption: 390

Product Description

Outdoor LED display - this is the most prestigious, efficient, forward-looking and high-tech kind of advertising that used successfully in outdoor advertising all over the world. The advantage of LED displays is that you have a possibility to show a wide range of advertising media: Video, slides, animation, text, etc. This allows you to maximize audience reach and significantly increase sales of the advertised product. You will never reach such results with traditional marketing materials.

Key features

Viewing angle(H/V) 120/60 deg.;
High brightness and high contrast
IP rating(Front/Rear) IP65/IP54;
Operating temperature: -20+50C;
Low Power consumption.
Graphics and color effects, text and images;
Videos and slide shows advertising;
Online videos, sporting events, satellite and internet TV;
Timely information about the date, time, traffic and weather;
Exchange rates and emergency situations.

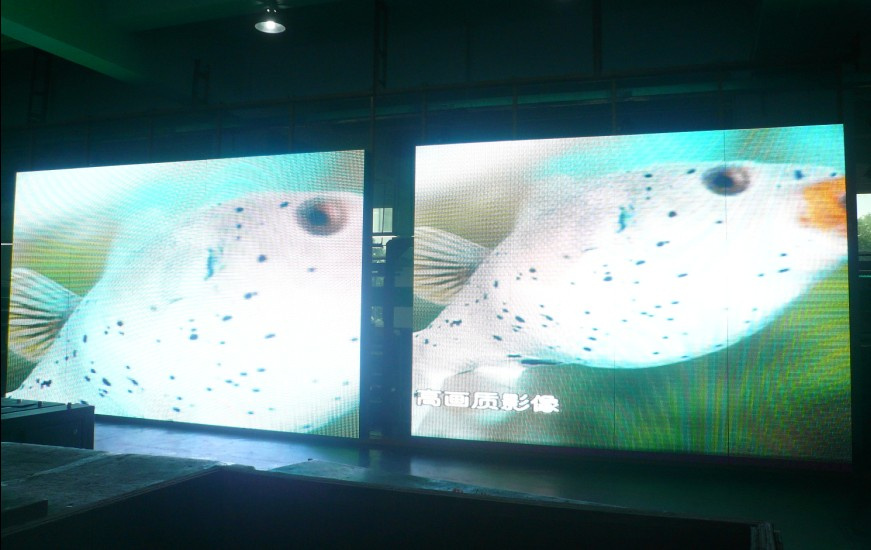

P16 outdoor full-color high-contrast LED display
Item Details Parameters
Pixel Physical 16mm
Pixel Configuration 1R1G1B
Module Module resolution 16*16 pixels
Module Size 256*256mm
Cabinet Physical resolution 64*64 pixels
Cabinet Size 1024*1024mm HxW
Physical density 4096 pixels/cabinet
Module quantity 16pcs=4(h)*4(w)
Material steel
Weight 55 kg Approx
Power supply(5V60A) Quantity 4 pcs
Average power consumption 410W
Max power consumption 1220W
Electricity
parameter
Brightness 9000 nits
Brightness adjusted 100 grade by software or by Auto-optic induced
Color processing 8 bits
Display color 16 millions
Color temperature(k) 7200k
Physical density 3906 pixels/per square meter
Whole display flatness ≤ 1.2mm Juncture
Best view distance 9-65m
Best viewing angle H≥100°    V≥50°
Storage temperature 40 degree -5 degree
Working temperature 20 degree -50 degree
Driving Method Constant driving current   Scan: static
Refresh frequency up to 300Hz
Frame rate 75Hz
Humidity(RH) 10%-90%
Protection grade Front IP65, Rear IP54 if not specified
Working voltage DC 5V
Power supply AC 110V ±10% / 220V ±10%
Average power consumption 400W/M2
Max power consumption 1200W/M2
MTBF 8,000 hours
Screen lifetime 100,000 hours
Control
System
Control System Linsn
Signal Interface DVI
Communication distance CAT5cable:≤100m   Fiber Cable:≥500m
Signal transfer mode dot to dot synchronized with computer monitor

About Hivision

Guilin Hivision Technology Co., Ltd. Was founded in 1994, starting as a spin-off of a Bank Database System with LED display project at Computer Science department of Guilin Electronic Engineering University. Through the years, Hivision has grown from a small startup to a full-fledge LED sign and light manufacturer.

Hivision is an ISO9001 certified LED manufacturer with extensive in-house R&D capabilities.

Why choose Hivisi?

In-house LED package ability

We complete the entire LED manufacturing process in-house. Our fully automated LED production process includes from die and wire bonding to package, populating, wave soldering and so on.

Three-step QC process with 1st class inspection equipments

Our strict QC process involves 3-step:

1. Incoming Quality Assurance -BOM

2. Inspection Process Quality Control -Producing

3. Final Quality Assurance - Finished product

Throughout these process, we conduct brightness, white balance, vibration and turning-in tests starting with modules, then panels and completed displays. Once finished, we perform high-pressure water resistance assessments to conform to IP65 standards.

Lastly, we assemble the LED cabinets for video aging and on-site simulations, as well as aesthetic inspections on cabinets and internal components. And prior to shipment, all spare parts are evaluated one last time.

Backed by heavy investment and a strong R&D team composed of 20 professionals with average ten years' experience covering software, firmware, hardware, and mechanical engineering, we are able to provide to you customized need.

Aftersales service

When you receive your shipment, you will find an array of materials to assist you with installation and operation. Documentation and user manuals, as well as software will provide you with all the information that you need to get your LED displays up and running.

Technical support

Free training for operation, maintenance and trouble shooting before the shipment in factory

Life-long free Technical support through Skype and Teamviewer (remote operating your computer).

We strive to understand, inspire and enable our customers and partners to turn their large image dreams into results with known outcomes. We are keeping the aim to add value, through our industry leading competence, with a complete range of high impact screens for permanent installations as well as the rental and staging markets. If you are looking for a reliable partner to realize your project, Hivisi is the right man for the job.
