Guilin Hivision Technology Co., Ltd. >> LED Display

LED Display

LED Display
Price: US $ 500-800/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Money Gram,Western Union
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
High Brightess: 10000 Nits, Customized Brightness Is Availble
Driving IC: Mbi 5020, Mbi 5024, Mbi5026 or Mbi5041, Mbi 5042
Refresh Rate: >600 Hz
Control System: Asynchronous or Synchronous
Warranty: 2 Years Warranty
Technical Support: Life Long Technical Support
Training: in House Factory Training or on Site Training
Pixel Configuration: 1r, 1g, 1b
Tube Chip Color: Full Color
IP Rating: IP65
Pixel Pitch: 16mm
Pixel Configuration: 1R, 1G, 1B
Display Function: Video Display
Scanning Mode: Static Scan
Display Type: LED Video Display
Certification: CCC
Average Power Consumption: 390
Pixel Density: 3906 Pixels/M2

Product Description

Outdoof full color led display

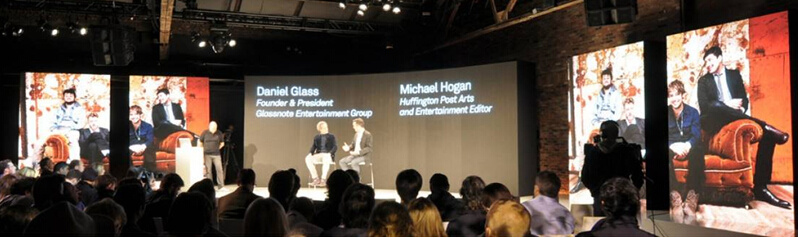

Indoor and outdoor Full Color LED Display Screen, usually used for Plaza, shopping mall, street side, high way, school, stadium, shows, entertainments etc with different commercial advertising purpose to attract more eye catching.

1. Focus on and only focus on LED display and modules more than 15 years;
2. Customized LED Display and modules in irregular size and specifications, such as bus sign;
3.1R1G1B as one pixel with top LED such as Silan, Epistar etc;
4. Bigger modules, more flatness of screen surface;
5. Best Color Uniformity and white balance; Color vividly, strong visual impact;
6. Good heat dissipation, anti-shock with multi-layers PCB design;
7. Constant current and static driver manner with longer life, low light decay;
8. High brightness: More than 2000 nits per square meter for indoor display, and more than 8000 nits per square meter for outdoor display;
9. Total black mask with high contrast ratio;
10. On line free training for how to assemble LED display modules to cabinets, cabinets to screens, How to operate software, how to maintain etc.





Partner for Guangzhou Asian Games, Shanghai World Expo, Beijing Olympic Games, China-Asian Expo and Boao Asian Forum.




P16 outdoor full-color high-contrast LED display
ItemDetailsParameters
PixelPhysical16mm
Pixel Configuration1R1G1B
ModuleModule resolution16*16 pixels
Module Size256*256mm
CabinetPhysical resolution64*64 pixels
Cabinet Size1024*1024mm HxW
Physical density4096 pixels/cabinet
Module quantity16pcs=4(h)*4(w)
Materialsteel
Weight55 kg Approx
Power supply(5V60A) Quantity4 pcs
Average power consumption410W
Max power consumption1220W
Electricity
parameter
Brightness9000 nits
Brightness adjusted100 grade by software or by Auto-optic induced
Color processing8 bits
Display color16 millions
Color temperature(k)7200k
Physical density3906 pixels/per square meter
Whole display flatness≤ 1.2mm Juncture
Best view distance9-65m
Best viewing angleH≥100°    V≥50°
Storage temperature40 degree -5 degree
Working temperature20 degree -50 degree
Driving MethodConstant driving current   Scan: static
Refresh frequencyup to 300Hz
Frame rate75Hz
Humidity(RH)10%-90%
Protection gradeFront IP65, Rear IP54 if not specified
Working voltageDC 5V
Power supplyAC 110V ±10% / 220V ±10%
Average power consumption400W/M2
Max power consumption1200W/M2
MTBF8,000 hours
Screen lifetime100,000 hours
Control
System
Control SystemLinsn
Signal InterfaceDVI
Communication distanceCAT5cable:≤100m   Fiber Cable:≥500m
Signal transfer modedot to dot synchronized with computer monitor

About Hivision

Guilin Hivision Technology Co., Ltd. Was founded in 1994, starting as a spin-off of a Bank Database System with LED display project at Computer Science department of Guilin Electronic Engineering University. Through the years, Hivision has grown from a small startup to a full-fledge LED sign and light manufacturer.

Hivision is an ISO9001 certified LED manufacturer with extensive in-house R&D capabilities.

Why choose Hivisi?

In-house LED package ability

We complete the entire LED manufacturing process in-house. Our fully automated LED production process includes from die and wire bonding to package, populating, wave soldering and so on.

Three-step QC process with 1st class inspection equipments

Our strict QC process involves 3-step:

1. Incoming Quality Assurance -BOM

2. Inspection Process Quality Control -Producing

3. Final Quality Assurance - Finished product

Throughout these process, we conduct brightness, white balance, vibration and turning-in tests starting with modules, then panels and completed displays. Once finished, we perform high-pressure water resistance assessments to conform to IP65 standards.

Lastly, we assemble the LED cabinets for video aging and on-site simulations, as well as aesthetic inspections on cabinets and internal components. And prior to shipment, all spare parts are evaluated one last time.

Backed by heavy investment and a strong R&D team composed of 20 professionals with average ten years' experience covering software, firmware, hardware, and mechanical engineering, we are able to provide to you customized need.

Aftersales service

When you receive your shipment, you will find an array of materials to assist you with installation and operation. Documentation and user manuals, as well as software will provide you with all the information that you need to get your LED displays up and running.

Technical support

Free training for operation, maintenance and trouble shooting before the shipment in factory

Life-long free Technical support through Skype and Teamviewer (remote operating your computer).

We strive to understand, inspire and enable our customers and partners to turn their large image dreams into results with known outcomes. We are keeping the aim to add value, through our industry leading competence, with a complete range of high impact screens for permanent installations as well as the rental and staging markets. If you are looking for a reliable partner to realize your project, Hivisi is the right man for the job.
