| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
RoHS |
| Voltage: |
AC 110V |
| Type: |
Car TV/TV Receiver Box |
| Video Output: |
HDMI |
| Audio Output: |
Digital Optical Output |
Product Description

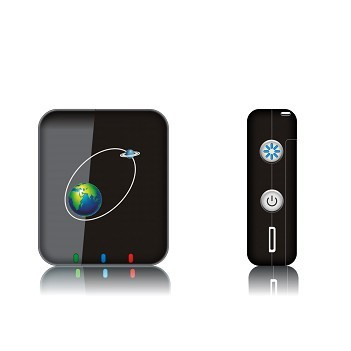

Mini Portable Tracker V520
Mini GPS Personal Tracker with SOS, Call and Position Functions, Measuring 55 x 44 x 16mm
1. GSM module: MTK program, GSM 850, 900, 1, 800 and 1, 900MHz dual or quad band
2. Supports the TCP protocol
3. GPS chipset: Skytraq
4. GPS sensitivity: -161dBm
5. GPS frequency: L1, 1575.42MHz
6. C/A code: 1.023MHz
7. Channels: 65 channel all-in-view tracking
8. Position accuracy: 2.5m, CEP
9. Velocity accuracy: 0.1m/second
10. Time accuracy: 300ns
11. Datum: WGS-84
12. Hot start: 1 second (average)
13. Warm start: 38 seconds (average)
14. Cold start: 42 seconds (average)
15. Altitude limit: 18, 000m (60, 000 feet) (maximum)
16. Velocity limit: 515m/second (1, 000 knots) (maximum)
17. Acceleration limit: Less than 4G
18. Operating temperature: -25 to 70° C
19. Humidity: 5 to 95% RH (non-condensing)
20. Dimension: 50 x 44 x 16mm
21. Voltage: Rechargeable 1, 300mAh battery (3.7V)
22. Charging: Connector 5V DC
Aoli Technology (HongKong) Co., Limited is professional design, production and exportation security products system together in China. Company have rich group professional research and development person, technology resource.
Our company main products are surveillance camera, wireless camera, mini camera, transmitter, recorder and TFT monitor etc. These products hot sell to America, Europe, Australia of all over the world. These security product system widely to be used in the residential area the bank, the super market, the school, also special for the army, reporter, hobby enthusiasts and so on.
Company's goal is providing better quality, better reasonable price, better highly effective service for the general consumers. Therefore, the aoli technology (hongkong)co. Limited is willing to strive together with friends from all over the world to meet the challenges and opportunities brought by the trends of intelligent security system.
