Product Description

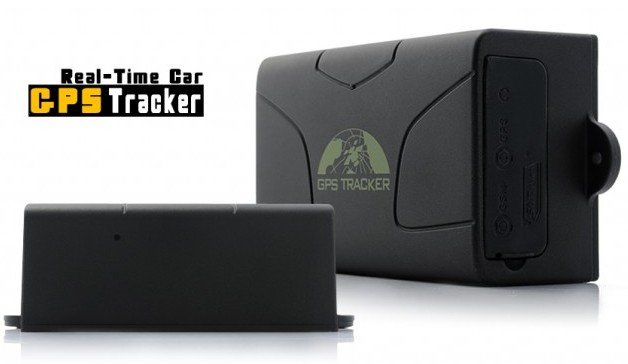

Real-Time Car GPS Tracker (Portable, Weatherproof, Magnet)
Manufacturers Specification
§ Primary Function: Quadband Car GPS Tracker with 6000mAh battery
§ Construction: Hard molded ABS plastic and rubber with magnet base
§ GPS Chip: SIRF III chip
§ Network: GSM / GPRS
§ GSM Frequency: 850 / 900 / 1800 / 1900
§ GSM/GPRS Module: Simcom SIM340
§ GPS Sensitivity: -159 dBm
§ GPS Accuracy: 5 M
§ Time to First Fix:
-Cold status: 45s
-Warm status: 35s
-Hot status: 1s
§ External Power Supply: 12V Automotive Battery / AC Wall Adapter / DC Car Lighter Socket
§ Internal Battery: Built-in Rechargeable 3.7 V 6000mAh Polymer Battery
§ Backup Power Battery Life: 30 days in-use - 60 days standby
§ Working Temperature: -20 to 55 C
§ Humidity: 5% to 95% non-condensing
§ Altitude Limit: 18, 000 meters (60, 000 feet) max
§ Velocity Limit: 515 meters/second (1000 knots) max
§ Acceleration Limit: Less than 4G
§ Dimension: 95 (L) x 60 (W) x 40 (H) mm
Product Notes
§ Great for private use, company car or rental fleet management.
§ Comes with external GSM and GPS antenna for rock solid reception.
§ Comes with detailed instructions for setup and use.
§ This product is not waterproof and therefore is not recommended for outdoor use during heavy rain.
§ PLEASE NOTE: Chinavasion does not provide software or IT support for the real-time GPS monitoring setup. To use the real-time tracking function you will have to open a communication port (of your choice) on your computer. If behind a router you will need to add your IP address and open the port on your router.
§ Each tracker's IMEI number is unique and can only be used to setup the software on one computer once and ONLY ONCE, which means you can only use the software on that computer exclusively after successfully set it up. This is due to the security requirements of the software and the product.
Package Contents
§ GPS Car Tracker
§ SOS button and wiring
§ GPS Antenna
§ GSM Antenna
§ Relay
§ Wiring
§ Software CD
§ English Manual
§ Protective sleeve
§ Wall power adapter 100-240V
§ Car cigarette power adapter
