| Prod Model: |
CMV-V***TA/HR1-B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Room |
| Indoor Machine Noise: |
<23dB |
| Certification: |
CE |
| Cooling/Heating: |
Cooling/Heating |
| Power Source: |
Electrical |
| Power Type: |
AC |
| Condition: |
New |
| Type: |
Ceiling Concealed Duct Type |
| Capacity: |
9000BTU - 24000BTU |
Product Description

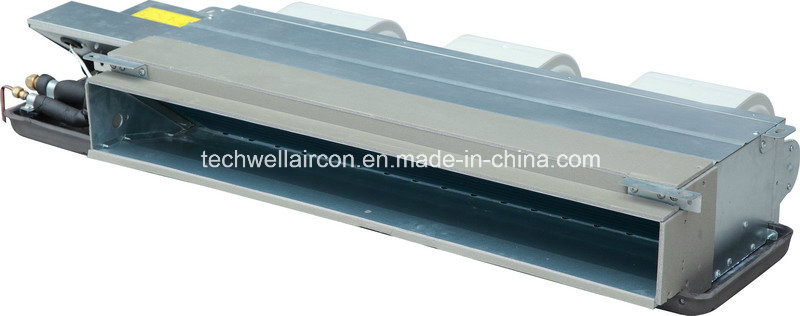

VRF air conditioners low ESP duct type evaporating units
-Power supply: 220~240V/1pH/50Hz, 208~230V/1pH/60Hz
-Cooling capacity: 2.2kw to 7.1kw
-Standard controller: Wired controller
-ESP: 20PA
-Low noise fan
-Slim body, easy to be installed
| Low Static Pressure Ducted Unit |
| Model name | Power type | Capacity | Motor input | Air flow | Sound Level | ESP | Dimension (W×H×D) | Weight | Connecting pipe | Standard controller |
| Cooling | Heating | Packing | Body | packing | Panel | Net | Gross | Gas | Liquid | Drain |
| kW | kBtu/h | kW | kBtu/h | kW | m3/h | CFM | dB(A) | Pa | mm | mm | mm | mm | kg | kg | mm | mm | mm |
| CMV-V22TA/HR1-B | 50Hz | 2.2 | 7.5 | 2.5 | 8.5 | 0.045 | 450 | 260 | 29~36 | 20 | 1055×250×605 | 925×181×510 | / | / | 17 | 20 | Ø9.53 | Ø6.35 | Ø20 | Wired controller |
| CMV-V22TA/HNR1-B | 60Hz |
| CMV-V28TA/HR1-B | 50Hz | 2.8 | 9.5 | 3.2 | 10.9 | 17 | 20 |
| CMV-V28TA/HNR1-B | 60Hz |
| CMV-V32TA/HR1-B | 50Hz | 3.2 | 10.9 | 3.5 | 11.9 | 0.065 | 550 | 320 | 30~37 | 17.5 | 20.5 | Ø12.7 |
| CMV-V32TA/HNR1-B | 60Hz |
| CMV-V36TA/HR1-B | 50Hz | 3.6 | 12.2 | 4 | 13.6 | 17.5 | 20.5 |
| CMV-V36TA/HNR1-B | 60Hz |
| CMV-V45TA/HR1-B | 50Hz | 4.5 | 15.3 | 5 | 17 | 0.075 | 780 | 450 | 32~40 | 1330×250×605 | 1205×181×510 | 21 | 25 |
| CMV-V45TA/HNR1-B | 60Hz |
| CMV-V56TA/HR1-B | 50Hz | 5.6 | 19.1 | 6.3 | 21.4 | 21 | 25 |
| CMV-V56TA/HNR1-B | 60Hz |
| CMV-V71TA/HR1-B | 50Hz | 7.1 | 24.2 | 8 | 27.2 | 0.105 | 1100 | 640 | 35~42 | 1645×250×605 | 1530×181×510 | 26 | 30 | Ø15.9 | Ø9.53 |
| CMV-V71TA/HNR1-B | 60Hz |
