Prod Model: |
TWRT-xxC(H) |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Fresh Air In Take: |
Optional |
Motorized Dampers: |
Optional |
Free Cooling: |
Optonal |
Certification: |
CE |
Type: |
Cabinet Air Conditioner |
Operating Voltage: |
380/400 VAC |
Mounting: |
Floor Standing |
Condition: |
New |
Application Fields: |
Central Air Conditioning |
Product Description

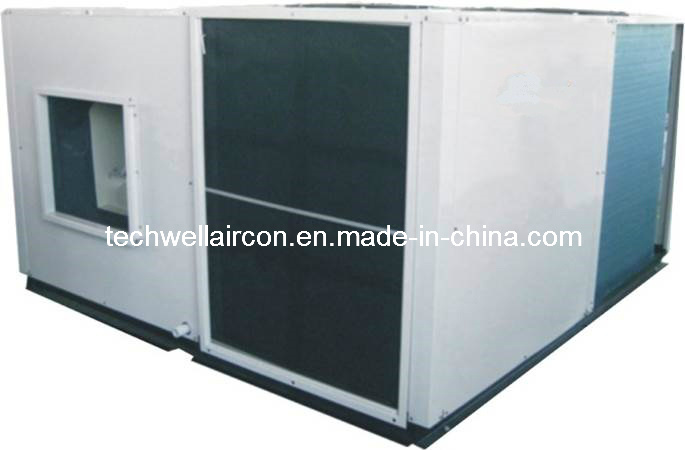

Rooftop Packaged Air Conditionerss
Features:
- Weather-proof, polyester epoxy power electrostatic paint oven-baked finish for sheet metal
and multi epoxy polyester coating for base frame for maximum protection
- Intelligent control- Parameters of unit are monitored and adjusted by microcomputer system.
- High efficiency- High efficiency thanks to the Anti-vibration mounting scroll compressors.
- Immediate operability - Quick start-up is assured once installation is complete.
- Safety and reliability- Complete unit control function, multi protection, safe and reliable operation.
- Quiet Operation- This type are basically constructed and engineered with noise reduction as a first consideration
(low noise mouted fans are used. Fiber glass insulation for evaporator section and compressor are mounted on vibration isolators.)
Model | TWRT036H | TWRT048H | TWRT060H | TWRT072H | TWRT096H | TWRT125H | TWRT168H | TWRT250H | TWRT300H | TWRT360H |
Cooling Capacity | R407c, kW | 9.6 | 12.35 | 15.68 | 19.95 | 26.7 | 31.8 | 42.75 | 66.50 | 80.75 | 99.75 |
R22, kW | 10.1 | 13 | 16.5 | 21 | 28.1 | 33.5 | 45 | 70 | 85 | 105 |
Heating Capacity | R407c, kW | 9.88 | 12.73 | 16.06 | 20.43 | 27.17 | 32.49 | 43.70 | 68.31 | 82.12 | 101.45 |
R22, kW | 10.4 | 13.4 | 16.9 | 21.5 | 28.6 | 34.2 | 46 | 71.9 | 86.45 | 106.79 |
Capacity Circuit | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
Cooling Power (kW) | 3.85 | 5.0 | 6.3 | 8.1 | 11 | 12.6 | 18 | 28 | 34 | 40 |
Heating Power (kW) | 3.61 | 4.7 | 5.95 | 7.9 | 10.5 | 11.5 | 17.2 | 26.8 | 36 | 42 |
Power | V/Ph/Hz | 380/3/50(60) |
Compressor Type | Hermetically Sealed Scroll Compressor |
Refrigerant Type | R22/R407c |
Cond. Fan | Type | Axial |
Drive Type | Direct |
Air Supply Fan | Air Flow (CFM) | 1235 | 1590 | 2000 | 2471 | 3059 | 3530 | 4700 | 7353 | 10000 | 12824 |
Air Flow (m3/h) | 2100 | 2700 | 3400 | 4200 | 5200 | 6000 | 8000 | 10500 | 17000 | 21800 |
Max. ESP (Pa) | 200 | 200 | 200 | 300 | 300 | 300 | 400 | 400 | 800 | 800 |
Type | Centrifugal |
Drive Type | Direct |
Noise | dB(A) | 59 | 59 | 59 | 65 | 65 | 65 | 68 | 72 | 80 | 83 |
Refrigerant Charge (Kg) | 2.5 | 3.1 | 3.8 | 2.7 X 2 | 3.0 X 2 | 4.8 X 2 | 5.3 X 2 | 7.6 X 2 | 13 X 2 | 16 X 2 |
Dim (mm) | Length | 1320 | 1320 | 1320 | 1784 | 1784 | 2110 | 2110 | 2840 | 3650 | 3650 |
Width | 980 | 980 | 980 | 1202 | 1202 | 1280 | 1280 | 2111 | 2170 | 2170 |
Height | 870 | 870 | 870 | 1147 | 1147 | 1270 | 1270 | 1193 | 2150 | 2150 |
Weight (Kg) | 165 | 190 | 210 | 260 | 310 | 384 | 400 | 860 | 1600 | 1700 |
