Shenzhen Yabin Electronics Co., Ltd. >> LCD Display Module RoHS LCD Module 240X128 Graphic LCD

LCD Display Module RoHS LCD Module 240X128 Graphic LCD

LCD Display Module RoHS LCD Module 240X128 Graphic LCD
Price: Negotiable/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 10/Piece
Pay Type: T/T,Paypal
Prod Model: YB240128L
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Display Format: 240X128 Dots
Outline Dimension: 241*125.5*11.2mm
Visual Area: 179.5*101.5mm
Active Area: 167.9*89.5mm
Diagonal Size: 7.5 Inch
IC Package: SMT
IC Or Equivalent: T6963/Ra6963/Uci6963or Eqv
Appearance: Blue/Yellow Green/Grey
Power Supply(Typ): 3.3V/5V
Backlight Current (Typ): 120mA
Type: LCM
Usage: Small-sized LCM
LCD Drive Mode: Static Drive LCD Module
Digital LCD Module Type: Counting Module
Display Technology: COB
Response Time: 2ms
Customized: Customized

Product Description

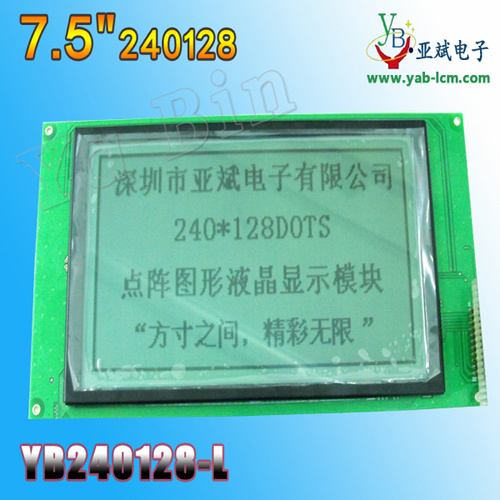

lcd display module Rohs lcd module 240x128 graphic lcd






1.Product Description

ManufacturerYaBin
Series NumberYB240128L
Display Format240x128Dots
Outline Dimension241*125.5*11.2mm
Visual Area179.5*101.5mm
Active Area167.9*89.5mm
Diagonal Size7.5'
Dot (Pixel) Size0.6*0.6mm
Dot (Pixel) Pitch0.7*0.7mm
IC PackageSMT
IC or EquivalentT6963/RA6963/UCi6963or EQV
Interface6800 8-bit/8080 8-bit Parallel
InterfaceParallel
Display TypeSTN/FSTN
Sunlight ReadableNo
Touch Panel OptionalNo
Contrast Ratio(Typ)No
Viewing Direction6:00
LED Backlight ColorBlue /Yellow Green /Gray
AppearanceWhite on Blue/Black on Yellow Green/White on Gray
Power Supply(Typ)3.3V/5V
Backlight Current (Typ)180mA
Operating Temp-20ºC~70ºC
Storage Temperature-30ºC~80ºC
If accept customizedYes
RoHS Compliance
Yes




2.Interface pin connection:

ITEMSYMBOLLEVELFUNCTIONS
1FG-Frame Ground
2VSS0VPower Ground
3VDD+5VPower Supply For Logic
4V0-Negative power output for LCD Driving
5/WRLWrite Signal
6/RDLRead Signal
7/CELChip Enable Signal
8C/DH/LH:Command  L:Data
9NC-No Connection
10/RESTLReset Signal
11-18DB0-DB7H/LData Bus
19FSH/LFont Selection  L:8x8 H:6x8
20VOUT/NC-Output Voltage for LCD Driving/No Connection
21LEDA+5VPower Supply For LED Backlight
22LEDK0V




3.Packaging & Delivery

Packaging Detail:
1>.Cartons, Cupboard, EPE, Blister Tray.
2>.About how many products in one package, it is up to the size of products.
3>.According to customer request.
Delivery Detail:7-10 days


4.Product Range

According to customers' various requests,tft lcd, lcd panel, lcd monitor, lcd screen, TN and STN lcd display module,character and graphic lcd module,industrial lcd,we can match all accessories which inclusive of driver board,LED backlight.
1>.We provide a verity of lcd glass and lcd moudle, Includeing TN LCD,HTN,STN,FSTN,LCD,COB,COG ( 8   Digital LCM )
2>.Character Module:Whole product series for 8x2, 16x1, 16x2,16x4,20x2,20x4,24x2,40x2,40x4 characters
3>.Graphic Module:Including 64x32 dots,122x32 dots,128x32 dots,128x64 dots,144x32dots,192x32 dots,
192x64 dots,160x80 dots,240x128 dots, 320x240 dots series.
4>.LCD Display Module, TFT,OLED.


5.Our advantages

1>.Skilled technology and strict for quality.
2>.Powerful products design and develop.
3>.Experienced sales team
4>.Prompt delivery and service
5>.Low cost solutions and high quality product.
6>.Backlight Replaceable
7>.LED backlight
8>.Wide view angle
9>.High Quality
10>.Produced in our own factory
11>.Reasonable Price


6.OEM Service

OEM is accepted Customized LCD Module we are welcome Various LCD Display Mode Available
Various LED Backlight Color Available Various Temperature Range Available


7.FAQ

1>.Long Term Continuity Supply Warranty

We understand you probably worry whether we still offer the display after your long development time.EastRising gives the promise to every
Customer to every product we sell on this web store.We promise the long terms continuity supply and would never end supply.Some controller
IC may stop the production,we'll try our efforts to find the completely compatible ones.If the equivalent is unavailable, we'll make the new
Tooling and use the most similar IC as replacement.So you don't have to worry even your research time is very long.

2>.What is covered under warranty and for how long?

All products are covered under our limited warranty, which provides all products are free of functional defects for a period of one year from the
Date of shipment and all products are free of visual defects and missing parts for a period of 30 days from the date of shipment.
If a product was damaged during shipping or the order is incorrect, you must notify us within 2 days of receipt.

3>.What is not covered?

Warranty is void and no repair or replacement is granted under the following conditions:
3-1>.Evidence of mechanical stress to parts including but not limited to.
3-2>.Damaged or broken glass or touch screen.
3-3>.Damaged conductors/components.
3-4>.Damaged polarizer.
3-5>.Damaged mounting holes.
3-6>.Parts tamper ed with by grinding, engraving, drilling, cutting or applying coatings of any kind.
3-7>.Addition or removal of components.
3-8>.Evidence of damage caused by applying incorrect voltage.
3-9>.Evidence of damage caused by operating outside of specified temperature range.
3-10>.Evidence of damage caused by electrostatic discharge (ESD).
4>.What if I have a defective product under warranty?
We will, at our option, either (a) repair the product using new or refurbished parts, or (b) replace the product with a new or refurbished product.
"Refurbished" means a component that has been returned to its original specifications.We do not give refunds, credit memos.

5>.How do I make a warranty claim?
For warranty service, you must begin by requesting a Return Material Authorization number (RMA) from our sales.(Please refer to our "Return"policy for more detail.)
Shenzhen YABIN Electronics Co., Ltd., set up in the year of 2008, is a high-tech enterprise specialized in producing LCD and LCM. Our company has more than 1000 square kilometer area, advanced LCD production lines, and a professional team with great strength and rich experience. Moreover, our company has passed ISO9001 certification and specialized in producing all kinds of LCD with the thickness of 1.1mm, 0.7mm, 0.55mm and 0.4mm and the models of TN, HTN, STN and FSTN LCM with COB, TAB, COG, TFT and OLED models.

We are famous for our superior quality, competitive prices, first-class craftwork, safe package and prompt delivery. Therefore, we can fully meet your demands. Apart from our own products, we also provide OEM & ODM services.

The products in our company are widely used in electricity, acoustic equipment, communication, industrial equipment, car acoustic and other fields. Over 60% of our products have been sold to Japan, Korea, Hong Kong and Taiwan area. We always insist on the dealing theory of "excellent quality, and superb service", taking innovative technology and science management very seriously, and strengthening quality, technology, environment and management system. We will keep working hard to achieve success with customers.

Understanding our customers, we care about the future of our business. Up to today, with reasonable price and good quality, all our products sell well in the international marketing. We want to ensure that you get our good service, only high quality and speedy delivery. We sincerely want to supply you with high quality products and perfect service based on our efficient management and professional work teams. Because professional, so trust!
