Indoor LED Signage/Full Color LED Display
| Price: |
US $ 1-2000/Square Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Square Meter |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
P5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cabinet Size: |
Can Be Customized |
| Driving IC: |
Mbi 5020, Mbi5024, Mbi5026, Mbi5041, Mbi5042 etc. |
| Reflesh Rate: |
>600 Hz |
| Control System: |
Asynchronous or Synchronous |
| Warranty: |
2 Years |
| Technical Support: |
Life Long |
| Training: |
in House Factory Training and on Site Training |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Scanning Mode: |
1/8 Scan |
| Application: |
Shopping Guide |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Pitch: |
5mm |
| Certification: |
CCC |
| Pixel Density: |
40,000 dots / m² |
| System Operating Platform: |
WIN XP |
| IP Rating: |
IP31 |
Product Description

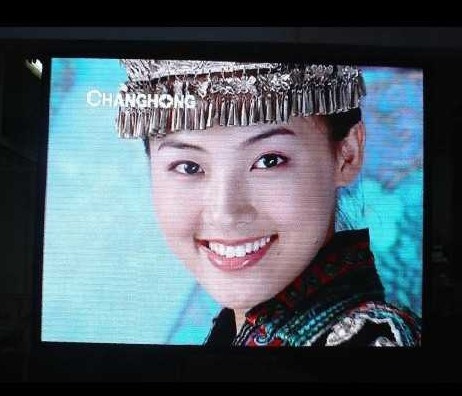

Indoor full color led display
Product Description
Backdrop stage LED screen
1. CE, FCC, RoHS, C-tick, ISO9001: 2009;
2. Brightness: >1700CD/sqm;
3. High Refresh rate: 3000Hz-4800Hz;
4. Viewing angle: 120degree in vertical and 120degree in horizontal;
5. 2 years warranty.
6. long time techical support
INDOOR FULL COLOR LED DISPLAY EXAMPLES:
|
P5 3-in-1 SMD indoor full-color LED display |
|
Item |
Details |
Parameters |
|
|
Physical pixel pitch |
5mm |
|
Pixel |
Pixel Configuration |
RGB 3-in-1 |
|
Module |
Module resolution |
16×32 pixels |
|
Module Size |
80×160 mm |
|
|
Physical resolution |
128×128 pixels |
|
|
Cabinet Size |
640×640 mm |
|
|
Physical density |
16384 pixels/cabinet |
|
|
Module quantity |
32pcs=8(H)×4(W) |
|
Cabinet |
Material |
Steel |
|
|
Weight |
20kg. Approx |
|
|
Power supply (50V40A) Quantity |
3pcs |
|
|
Average power consumption |
250W |
|
|
Max power consumption |
600W |
|
|
Brightness |
4000 nits |
|
|
Brightness adjusted |
100 grade by software, or by Auto-optic induced |
|
|
Color processing |
8-16 bit |
|
|
Display color |
16 million - 281 trillion |
|
|
Color temperature (K) |
6000 - 8000K |
|
|
Physical density (pixel/M2) |
40000 |
|
|
Whole display flatness |
less than 1.2mm juncture |
|
|
Best view distance |
3 - 25m |
|
|
View angle |
Horizontal>160 degree, Vertical>160 degree |
|
|
Storage temperature |
40 degree to 60 degree |
|
Electricity |
Working temperature |
20 degree to 50 degree |
|
parameter |
Driving Method |
Constant driving current, Scan: 1/8 |
|
|
Refresh frequency |
Up to 3000 Hz |
|
|
Frame rate |
75 Hz |
|
|
Relative Humidity |
10% - 90% |
|
|
Protection grade |
IP31 |
|
|
Working voltage |
DC 5V |
|
|
Power supply |
AC 110V±10%/ 220V±10% |
|
|
Average power consumption |
500w/per square meter |
|
|
Max power consumption |
1500w/per square meter |
|
|
MTBF |
10000 hours |
|
|
Screen lifetime |
>50000 hours |
|
|
Control System |
Linsn |
|
Control |
Signal Interface |
DVI |
|
System |
Communication distance |
CAT5 cable<100m, optical/fiber>500m |
|
|
Signal transfer mode |
dot to dot synchronized with computer monitor |
About Hivision
Guilin Hivision Technology Co., Ltd. Was founded in 1994, starting as a spin-off of a Bank Database System with LED display project at Computer Science department of Guilin Electronic Engineering University. Through the years, Hivision has grown from a small startup to a full-fledge LED sign and light manufacturer.
Hivision is an ISO9001 certified LED manufacturer with extensive in-house R&D capabilities.
Why choose Hivisi?
In-house LED package ability
We complete the entire LED manufacturing process in-house. Our fully automated LED production process includes from die and wire bonding to package, populating, wave soldering and so on.
Three-step QC process with 1st class inspection equipments
Our strict QC process involves 3-step:
1. Incoming Quality Assurance -BOM
2. Inspection Process Quality Control -Producing
3. Final Quality Assurance - Finished product
Throughout these process, we conduct brightness, white balance, vibration and turning-in tests starting with modules, then panels and completed displays. Once finished, we perform high-pressure water resistance assessments to conform to IP65 standards.
Lastly, we assemble the LED cabinets for video aging and on-site simulations, as well as aesthetic inspections on cabinets and internal components. And prior to shipment, all spare parts are evaluated one last time.
Backed by heavy investment and a strong R&D team composed of 20 professionals with average ten years' experience covering software, firmware, hardware, and mechanical engineering, we are able to provide to you customized need.
Aftersales service
When you receive your shipment, you will find an array of materials to assist you with installation and operation. Documentation and user manuals, as well as software will provide you with all the information that you need to get your LED displays up and running.
Technical support
Free training for operation, maintenance and trouble shooting before the shipment in factory
Life-long free Technical support through Skype and Teamviewer (remote operating your computer).
We strive to understand, inspire and enable our customers and partners to turn their large image dreams into results with known outcomes. We are keeping the aim to add value, through our industry leading competence, with a complete range of high impact screens for permanent installations as well as the rental and staging markets. If you are looking for a reliable partner to realize your project, Hivisi is the right man for the job.
