Changzhou Forte Power Machinery Co., Ltd. >> High Pressure Blue Absorption Type Solar Water Heater

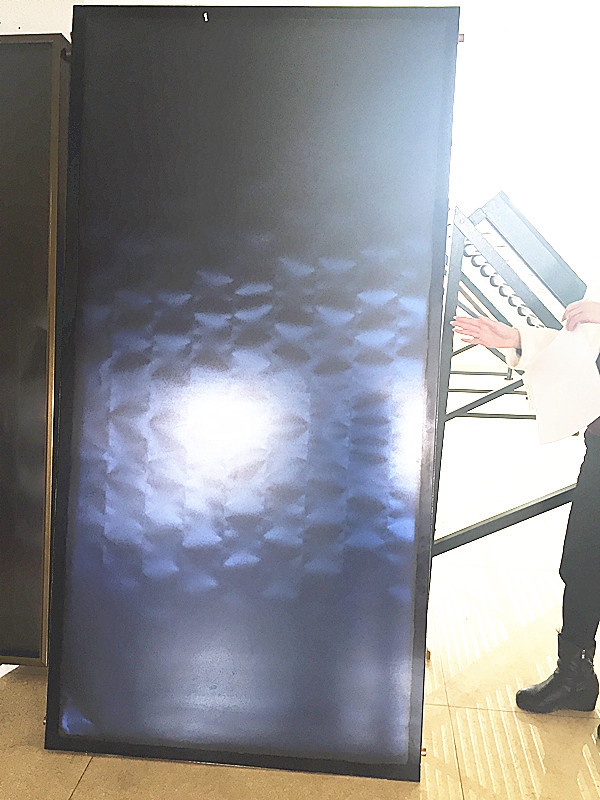

High Pressure Blue Absorption Type Solar Water Heater

High Pressure Blue Absorption Type Solar Water Heater
Price: US $ 120-130/Piece
Min Order: 2/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Working Pressure 6 Bar: Working Pressure 9 Bar
Blue Titianium Absorber: Laser Welding
Splite Collector: Closed Loop
1 Full PC Of Aluminum: Flat Plate
7 Years Warranty: Minimum 15 Years Life
5 Types Of Absorber: Weight 40kgs
Max. Capacity: >200L
Structure: Separate Type
Pressure: Pressurized
Interior Material: Copper
Collector Components: Flat-plate
Composition: Collector
Certification: ISO9001

Product Description

Flat plate  Solar water heater(150L, 200L,250L,300L)
Main Features:
High pressure Working pressure 6 bar , Maximum pressure 9 bar
splite and compact
Roof intergrated
Closed loop
High efficient over 90%
Anti-freeze -40C

Absorber Blue sputtering film  ,imported from Germany,laser welded or ultrosonic welded
5 years warranty
20 years life

Bluetec aluminum or copper absorber collector
laser or ultrasonic welded absorber blue titianium film ,efficient over 93%
pressurized flat  plate Solar collector-maximum  pressure 9 bar ,working pressure 6 bar
High pressure flat plate solar collector,split or compact
Splite solar collector   solar water heating system
Solar Keymark certified
Solar Hoter water heater

Flat Plate Solar Collector  high pressure solar collector
Material
Copper and Aluminum combined solar collector All red copper black Chrome coated collectorAll red copper Blue Tec Absorber collctor Aluminum 1PC black Chrome coated collectorAluminum 1PC aluminum coated Bluetec collector
CoatingAnodized treatmentBlack Chrome coatedGermany imported Selective coatingBlack Chrome coated 1PCGermany imported
Construction type pipe+finpipe+platepipe +platepipe+platepipe+plate
Absorption rate 0.95± 0.03     0.96± 0.03     0.96± 0.02     0.96± 0.03     0.96± 0.02
Emmision rate0.18± 0.050.09± 0.050.05± 0.020.09± 0.050.05± 0.02
Aluminum fin 140x 1855 x 0.15                              7140x 1850 x 0.15               140x 1850 x 0.12                 1925x 925x 0.3                                   1925x 925x 0.3
Header pipe Φ 25 x 0.5 Φ 25 x 0.5 Φ 25 x 0.5 Φ 25 x 0.5 Φ 25 x 0.5
Grid pipeΦ 10 x 0.5Φ 10 x 0.5      7PCSΦ 10 x 0.5      7PCSΦ 10x 0.5        7PCSΦ 10x 0.5        7PCS
Overall size 2000 x 1000 x 762000 x 1000 x 762000 x 1000 x 762000 x 1000 x 762000 x 1000 x 76
Frame thickness  0.85mm  0.85mm  0.85mm  0.85mm  0.85mm
Frame color Silver whitesilver whitesilver whiteSilver whitesilver white
Gross area2m22m22m22m22m2
Absorption area 1.85m21.85m21.85m21.85m21.85m2
Seal Anti-aging PVC Anti-aging PVCAnti-aging PVCAnti-aging PVCAnti-aging PVC
Cover quantity11111
cover material4mm float glass4mm tempered glass 4mm tempered glass 4mm tempered glass4mm tempered glass
transmittance89%89%89%89%89%
bottom cover0.30mm Zinc coated plate0.30mm Zinc coated plate0.30mm Zinc coated plate0.30mm Zinc coated plate0.30mm Zinc coated plate
Insulation(mm)bottom 16K*30 fiber glass                          frame 48K*20 fiber glassbottom 16K*30 fiber glass  frame 48K*20fiber glass bottom 16K*30fiber glass      frame48K*20firber glassbottom16K*30fiber glass  frame 48K*20 fiber glassbottom 16K*30fiber glass      frame48K*20fiber glass
Maximum pressure0.6MPa0.6MPa0.6MPa0.6MPa0.6MPa
Weight34kg35kg35kg35kg35kg
Warranty   3 years3 years3 years3 years3 years
OUR MISSION:

SUPPLY YOU MOST COMPORTABLE & ECONOMIC&INTELLIGENT SOLUTION FOR DOMESTIC AND PROJECT WATER HEATING

OUTLINE:

The Forte Group is one of the leading international manufacturers of water heating systems. Founded in 2003, our company maintains a staff of over 120 employees and generates roughly 50 millions USD in annual turnover.

Forte is an internationally orientated company. With 90% of total Forte value exports to Germany, Italy, Spain, Mexico, Vietnam, Mauritius, Korea and other 80 countries.

Comprehensive product range for all types and areas of application

Whether for single or two-family homes, large residential complexes, commercial and industrial buildings or local heating networks, Forte has the right system solution with Solar heating

Forte's comprehensive product portfolio includes single domestic vacuum tube and flat plate solar water heaters from 100L to 300L, 500L and even 750L and 1000L, but also big project systems for schools hospitals and swimming pools

Comprehensive range of services

Forte offers its trade partners a comprehensive range of services to considerably simplify their daily work. The diverse range includes assistance from its Technical Service department, demand-driven software for instance for planning heating systems, support in the form of advertising and sales promotions, and a user-friendly information and ordering system available around the clock on the internet.

Our Advantage

Technical support: Experience of over 10 years experience in designing, researching, producing and exporting solar water heating systems, always supply you customer oriented solutions.

QC&QA

All main parts 100% checked and tested before delivery

Every water tnk, manifold loop, were strictly tested against leakage and corrosion

After sale service

Upon delivery, main parts will carry a trackable number, customer only need to report convincable proofs so that we will carry the service

Guarantee priod:

All the tanks we delivered will have 7 years guarantee period

OUR ADVANTAGE

TECHNICAL SUPPORT: EXPERIENCE OF MORE THAN 10 YEARS DESIGNING, RESEARCHING, PRODUCING AND EXPORTING OF WATER HEATING SYSTEMS, ALWAYS SUPPLY YOU CUSTOMER ORIENTED HEATING SOLUTIONS

QC & QA

ALL THE MAIN PARTS 100% TESTED AND CHECKED.

EVERY WATER TANK, MANIFOLD LOOP, WERE STRICTLY TESTED AGAINST LEAKAGE AND CORROSION

AFTER SALE SERVICE

UPON DELIVERY, MAIN PARTS WILL CARRY A TRACKABLE NUMBER, CUSTOMER ONLY NEED TO REPORT CONVINCIBLE PROOFS SO THAT WE WILL CARRY THE SERVICE

GARANTEE PERIOD:

ALL THE TANKS WILL HAVE A 7 YEARS GARANTEE PERIOD

We would be pleased to work with all the distributers on a win-win base to grow up together.

With Forte Energy, we go for further journey!
