Shenzhen Snowell Refrigeration Equipment Co., Ltd. >> Freezing Fish Pofessional Fresh Water 1t Flake Ice Maker with Ice Storage Room

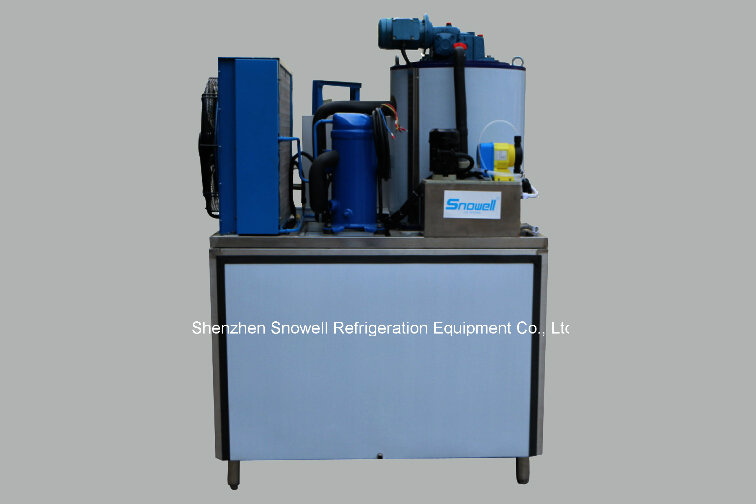

Freezing Fish Pofessional Fresh Water 1t Flake Ice Maker with Ice Storage Room

Freezing Fish Pofessional Fresh Water 1t Flake Ice Maker with Ice Storage Room
Price: US $ 7500/Set
Trade Terms: FOB
Min Order: 1/Set
Pay Type: T/T,Western Union
Prod Model: SF1T-R4A
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name: Fresh Water 1t Per Day Flake Ice Maker
Compressor Brand: Copeland
The Expansion Valves Of Flake Ice Maker: Danfoss Ect
Electrical Parts: Schneider or LG Ect
Design Ambient Temp: 25°c
Thickness Of Flake Ice: 1.5-2.2mm
Condensing Temp.: 45°c
Evaperator Meterial: SUS 304
Ice Shape: Flake Ice
Certification: CE
Condition: New

Product Description

Description



Freezing Fish Pofessional Fresh Water 1T Flake Ice Maker with Ice Storage Room



The flake ice maker can be used in Fishing Boats, Restaurants, Farms, Cooling Room, Factories. Cooling fish ,meat, vegetables, fruits ect for preservation purpose.





 Advantages over other supplier



*The flake ice maker Adopts the newest international ice machine making technology. Equipped with world famous components like Bitzer Compressor, Danfoss Expansion Valve, and so on.



* The equipment structure is designed for resistance to high load ,Superb Stability and long life span. According to our test, our ice machine can produce quality ice and stand over 29,515 hours of operation without breakdown.



* User-friendly design,intellectualized PLC touch-screen control system, which is very convenient for operator.



* The intellectualized historical failure record,running time setting function



* Function and guidance of trouble shooting makes easier and simple operation and maintenance.



* Saving energy and Low maintenance and operation cost for the flake ice maker machine



*Super performance offers trouble-free operation, with much less maintenance probability



1000kg Per Day Flake Ice Maekr Technical Paremeters



NoDescriptionSpecification
1Design Capacity1000Kg/24h
2Refrigeration Capacity6 KW
3RefrigerantR404A
4Total Input3.8KW
5Power Supply380V/50Hz/3P or else
6Nominal Current10A
7Cooling ModeAir Cooling
8Evaporator StructureSpiral Groove
9Evaporating Temp.-22°C
10Condensing Temp.45°C
11Flake Ice Temp.-5°C
12Thickness of Flake Ice1.5-2.2mm
13Water Feeding Pressure0.1 Mpa--0.5Mpa
14Design Water Inlet Temp.25°C
15Design Ambient Temp.18°C
16Unit Weight230KG
17Product Name1T Fresh Water Per Day Flake ice maker machine

Company Profile

Shenzhen Snowell Refrigeration Equipment Co., Ltd is founded in May, 2006, with registration capital 25 million in US Dollar. As one 10 years experienced manufacturer of refrigeration equipments in China, SNOWELL has been dedicated into researching and developing refrigeration technology. We mainly design and manufacture ice flake machine, ice tube machine, ice block machine ect. Snowell products have passed CE, UL, ISO9001, ISO14000 certificate.


Frequent Asked Questions(FAQ)

Q1: What is the delivery time?

A1:
   1).The ice making machine type. Our main product line includes Flake Ice Machine,Tube Ice Machine,Block Ice Machine. The manufacturing is totally different. So the time and affort spent on these machines varies. Normally the flake ice machine is fastest under the same ice daily capacity
   2). Different Ice Daily Capacity: we have 1T,2T,5T,10T,20T,25T,30T,40T,50T ice making machines. For small capacity ice making machines(like1-5 tons), it needs about 10-15 working days. For larger capacity ice machines, it needs around 20-30 working days).

Q2.: What is the payment terms and trder terms?
A2: Normally, we accept T/T,  30% Deposit and 70% balance paid before delivery.
      Trade Terms: FOB Shenzhen

Q3: Do I need to install the ice machine by myself?

For small ice machine, we ship it as a whole unit. So you just need to prepare power and water to run the machine.
For some larger ice machine plant, we need to keep some components seperate for shipping convenience. But no worris about that. An installation brochure will be sent to you,it's very to install the machine.

Q4: For Water Cooled and Air cooled Machine, Which one is better?
A4: It depends. If the electricity is more abundant and cheaper than water, air cooled one is recommended. Likewise, you can choose the water cooled one according to the situation.


Shenzhen Snowell Refrigeration Equipment Co., Ltd is founded in May, 2006, with registration capital 25 million in US Dollar. As one experienced manufacturer of refrigeration equipments in China, SNOWELL has been dedicated into researching and developing refrigeration technology. We mainly design and manufacture ice flake machine, ice tube machine, ice cube machine, ice block machine, ice plate machine, water chiller, concrete cooling system, automatic ice storage system, dynamic ice storage system and all kinds of cold rooms.

Headquartered in Shenzhen, Snowell has 3 Industrial Parks. Marketing network has been extended to many domestic cities, such as Beijing, Shanghai, Guangzhou, Qingdao, Dalian and Wuhan, and abroad, such as Middle East, Southeast Asia, Europe, Australia, America, Africa and so on.

Snowell attracts numbers of excellent and professional talents and has scientific and research and talents cooperation with many Chinese famous colleges and universities. We have achieved several national patents and get the pressure vessel manufacture license. Snowell products have passed CE, UL, ISO9001, ISO14000 certificate.

After almost 10 years of development, Snowell has become the most competitive manufacturer of ice making system and other refrigeration equipments.
