Shenzhen Snowell Refrigeration Equipment Co., Ltd. >> Ice Tube Making Maker with Daily Productive Capacity of 10tpd

Ice Tube Making Maker with Daily Productive Capacity of 10tpd

Ice Tube Making Maker with Daily Productive Capacity of 10tpd
Price: US $ 38500/Set
Min Order: 1/Set
Pay Type: T/T,Western Union
Prod Model: ST10T-R4W
Refrigeration Capacity: 51.7 Kw
Refrigerant: R22, R404A Ect
Condensing Capacity: 105 Kw
Power Supply: 380V/50Hz/3p
Operating Power: 29.8kw
Cooling Mode: Water Cooling
Evaporating Temp.: -10°c
Tube Ice Temperature: -5°c
Design Water Inlet Temp.: 25°c
Design Ambient Temp.: 35°c
Certification: CE
Condition: New
Ice Shape: Tube Ice

Product Description

Detailes Description:


10T Ice Production Tube Ice Machine for sale


As the name implies,tube ice machine makes tube ice,which is a kind of hollow cylindrical ice with external diameter normal Φ29mm and length 25-42mm,. the hole diameter usually 5-10mm and it can be adjusted according to ice making time.

Tube ice can be white color or crystal. Compare with flake ice,tube ice has longer melting time.



Tube ice machine features

1. Perfect design: this tube ice machine adopts 3D simulation assembly, compact structure, easily operate and maintain.

2. Our tube ice machine adopts the newest international ice machine making technology. Equipped with world famous components like Bitzer Compressor, Danfoss Expansion Valve, and so on.

3.User-friendly design for the tube ice maker,very convenient for operator.


4.Saving energy and low maintenance and operation cost. After the tube ice is off, the water of low tempreture is used for ice making,increasing the volumn of production fo ice.


6.All the material of the tube ice machine meets the HACCP request. CE, ISO Certificate approved. The use of stainless steel SUS304, aluminium alloy plate type evaporator,accords with the health and safety requuiments.



Application of tube ice machine

1. Freezing drinks, mix wines. cool foodstuffs, make ice pastries and keep fresh.

2. Widely used in hotel, bar , restaurant, catering, supemarket, ballroom, etc.

3. Food production process.

4. Chemical industry process, etc

5. Fish industry

6.Slaughterhouses and related packing industries



Features of the 10T tube ice maker

Following diameter is just for reference. Any different request,please let me know. We will manufacture the machine accordingly.


10T/24hrs Tube Ice Machine Parameters
NoDescriptionSpecification
1Design Production Capacity10T/24hrs
2Refrigeration Capacity51.7 kw
3RefrigerantR22,R404A ect
4Operating Power29.8kw
5Inner Diameter of ice tube3mm-15mm

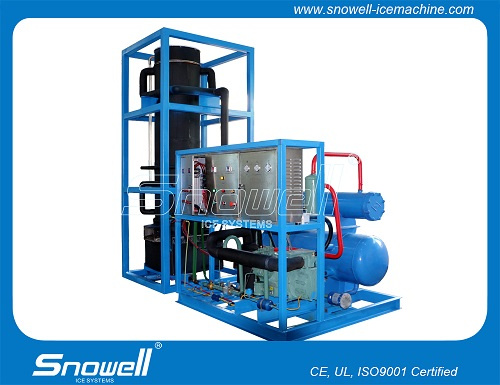

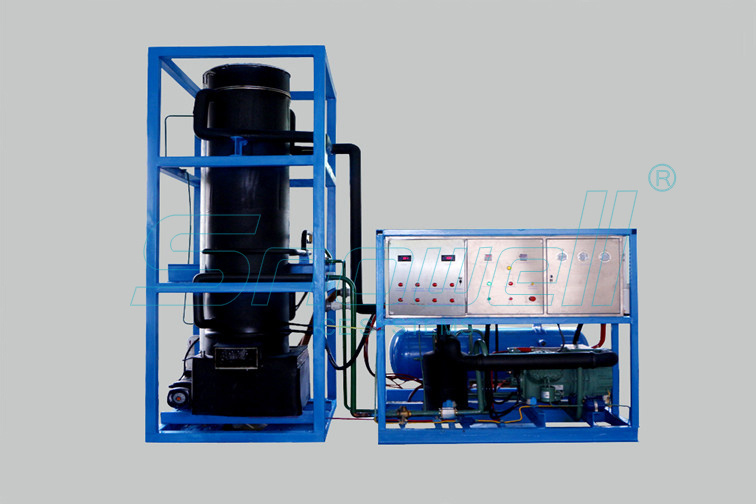

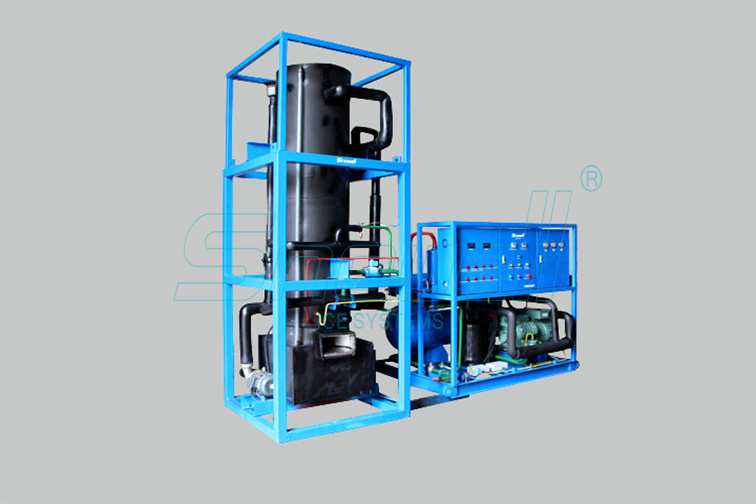

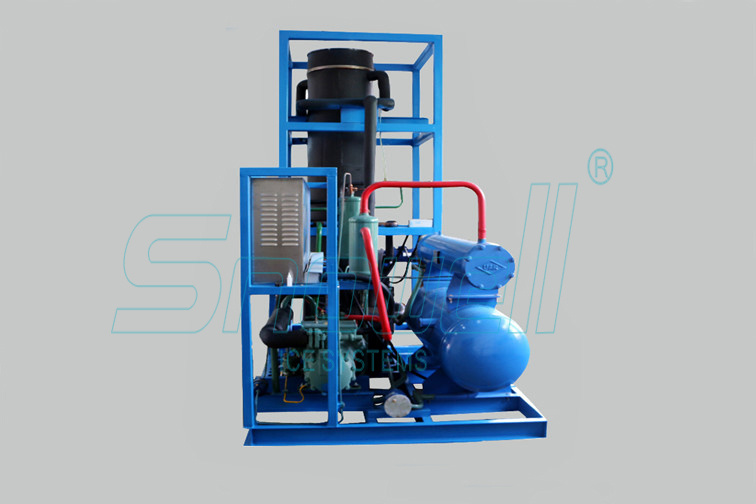

 Images for the tube ice machine





After-sales Service

1. Two years warranty

2. Offer Spare parts free of charge within the warranty period.

3. Technical Documents


When beyond the warranty, Snowell will supply the parts and service only for factory price.


Company Profile

Shenzhen Snowell Refrigeration Equipment Co., Ltd is founded in May, 2006, with registration capital 25 million in US Dollar. As one 10 years experienced manufacturer of refrigeration equipments in China, SNOWELL has been dedicated into researching and developing refrigeration technology. We mainly design and manufacture ice flake machine, ice tube machine, ice block machine ect. Snowell products have passed CE, UL, ISO9001, ISO14000 certificate.


Frequent Asked Questions(FAQ)

Q1: What is the delivery time?

A1:
   1).The ice making machine type. Our main product line includes Flake Ice Machine, Tube Ice Machine, and Block Ice Machine. The manufacturing is totally different. So the time and effort spent on these machines varies. Normally the flake ice machine is fastest under the same ice daily capacity

   2). Different Ice Daily Capacity: we have 1T, 2T, 5T, 10T, 20T, 25T, 30T, 40T, 50T ice making machines. For small capacity ice making machines(like1-5 tons), it needs about 10-15 working days. For larger capacity ice machines, it needs around 20-30 working days).

Q2. What is the payment terms and trade terms?

A2: Normally, we accept T/T, 30% Deposit and 70% balance paid before delivery.
      Trade Terms: FOB Shenzhen


Q3: Do I need to install the ice machine by myself?

For small ice machine, we ship it as a whole unit. So you just need to prepare power and water to run the machine.

For some larger ice machine plant, we need to keep some components separate for shipping convenience. But no worries about that. An installation brochure will be sent to you, it's very to install the machine.


Q4: For Water Cooled and Air cooled Machine, Which one is better?

A4: It depends. If the electricity is more abundant and cheaper than water, air cooled one is recommended. Likewise, you can choose the water cooled one according to the situation.

Shenzhen Snowell Refrigeration Equipment Co., Ltd is founded in May, 2006, with registration capital 25 million in US Dollar. As one experienced manufacturer of refrigeration equipments in China, SNOWELL has been dedicated into researching and developing refrigeration technology. We mainly design and manufacture ice flake machine, ice tube machine, ice cube machine, ice block machine, ice plate machine, water chiller, concrete cooling system, automatic ice storage system, dynamic ice storage system and all kinds of cold rooms.

Headquartered in Shenzhen, Snowell has 3 Industrial Parks. Marketing network has been extended to many domestic cities, such as Beijing, Shanghai, Guangzhou, Qingdao, Dalian and Wuhan, and abroad, such as Middle East, Southeast Asia, Europe, Australia, America, Africa and so on.

Snowell attracts numbers of excellent and professional talents and has scientific and research and talents cooperation with many Chinese famous colleges and universities. We have achieved several national patents and get the pressure vessel manufacture license. Snowell products have passed CE, UL, ISO9001, ISO14000 certificate.

After almost 10 years of development, Snowell has become the most competitive manufacturer of ice making system and other refrigeration equipments.
