Shenzhen Yabin Electronics Co., Ltd. >> 240160 Graphic DOT Matrix LCD Screens Beauty Instrument Display Screen

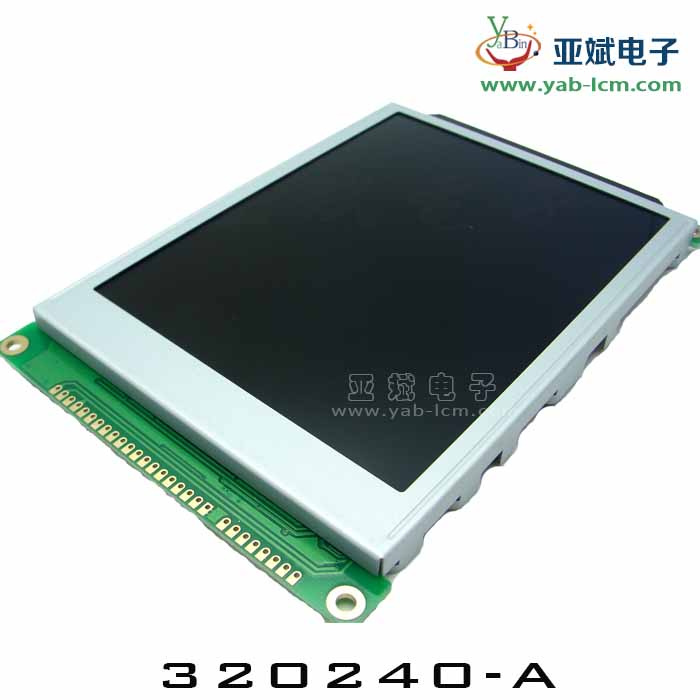

240160 Graphic DOT Matrix LCD Screens Beauty Instrument Display Screen

240160 Graphic DOT Matrix LCD Screens Beauty Instrument Display Screen
Price: US $ 32/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal
Prod Model: YB240160A
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Working Voltage: 5vand3.3V
Usage: Small-sized LCM
Digital LCD Module Type: Counting Module
Touch Screen Type: Resistive
Type: LCM
Response Time: 1ms
Display Technology: STN
DOT-Matrix Graphic LCD Module Type: Row/Column-Driven
LCD Drive Mode: Static Drive LCD Module
Customized: Customized
Viewing Angle: 6:00

Product Description

240160A





Gross Weight (kg)

ManufacturerYaBin
Series NumberYB240160A
Display Format240*160 Dots
Outline Dimension97.4X58.4X9.5mm
Visual Area75X46.5mm
Active Area67.18X42.385mm
Diagonal Size3.1inch
Dot (Pixel) Size0.265X0.25mm
Dot (Pixel) Pitch0.28X0.265mm
IC PackageSMT
IC or EquivalentRA8806 or Equivalent
InterfaceSupport 4/8-bits of 6800/8080 MPU interface
Display TypeSTN/FSTN
Touch Panel OptionalYes
Contrast Ratio(Typ)No
Viewing Direction6:00
LED Backlight ColorWhite
AppearanceWhite on grey,White on blue
Power Supply(Typ)3.3V/5V
Backlight Current (Typ)95mA
Operating Temp-20ºC~70ºC
Storage Temperature-30ºC~80ºC
If accept customizedYes
RoHS ComplianceYes









240160A





The interface definition
ITEMSYMBOLLEVELFUNCTION
1VSS0VPower Ground
2VDD5.0VPower Supply For Logic
3V0--The screen contrast adjustment
4/WR(R/W)H/LWrite/Read-Write
When MPU I/F is 8080 series,this pin(/WR)is
used as data write,active low.
When MPU I/F is 6800 series,this pin(R/W)is
used as data read/write control.Active high for
read and active low for write
5/RD(EN)H/LEnable/Read Enable
When MPU interface(I/F) is 8080 series,this pin(/RD)is used as data read,active low.
When MPU I/F is 6800 series,this pin(EN)is used as Enable, active high.
6/CSH/LChip Select Input
active only when CS is low
7A0(=RS)H/LCommand/Data Select Input
The pin is used to select command/data cycle.RS=O,data Read/Write cycle is selected.RS=1,status
read/command write cycle is selected.In 8080
interface,usually it connects to"AO"address pin.
8/RSTLReset Signal Input
This active-low input performs a hardware
reset on the RA8806.
9-16DB0-DB7H/LData  Bus
These are data bus for data transfer between
MPU and RA8806.
17BUSYH/LBusy Signal Output
This is a busy output to indicate the RA8806
is in busy state.It could be set to active
high or active high or active low by regis-ter.The RA8806 can't access MPU cycle when BUSY pin is active.
18VEE

positive voltage
19LEDA5.0VPower Supply For LED Backlight
20LEDK0V
6.2.(K5)PIN DESCRIPTION
1-8KOUT[7:0]Key Pad Output
These pins are keypad outputs.
9-16KIN[7:0]Key Pad Input
These pins are keypad inputs.
