2016 Hot Sales Solar Water Heaters (Double Coiler 300Liter)

2016 Hot Sales Solar Water Heaters (Double Coiler 300Liter)
Price: US $ 1056/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: S-30
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material: Stainess Steel or Optional
Capacity: 300L, or Optional
Pre-Heated Solar Water Heater: 1500W, 2000W Optional

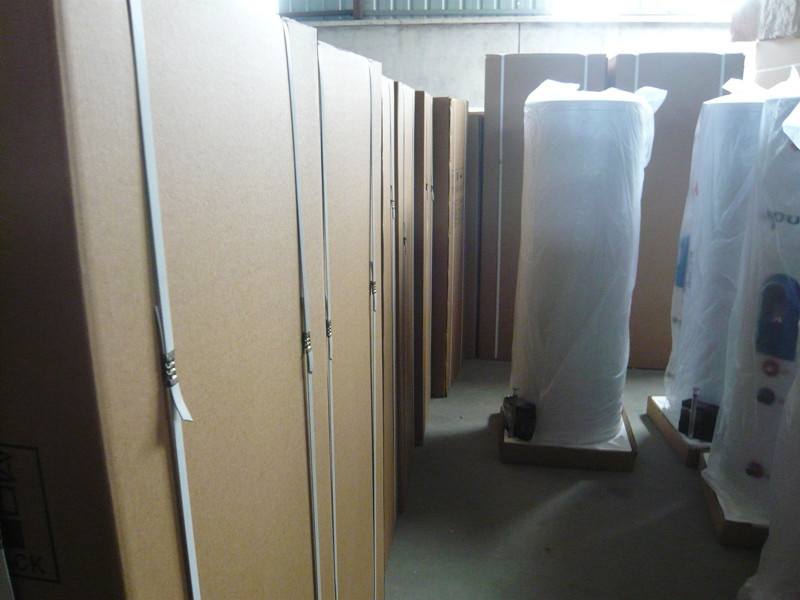

Export Packing: Cartons with Foam Optional
Coils: Copper or Stainless
Max. Capacity: >200L
Structure: Separate Type
Pressure: Pressurized
Interior Material: Stainless Steel
Collector Components: Glass Vacuum Tube
Composition: Collector
Certification: ISO9001

Product Description

Specifications

Solar Water Heaters
Competitive price, good quality
5 years warranty
After sales solution

Solar Water Heaters

Model: S-30

Solar water heaters features,

1. The upright tank can make the water temperature to a high level. It can hot the water instantly.
2. The tank inside the building, the hot water loses less energy than the normal one.
3. The solar collector and the tank of solar water heater is separated, that makes the system combine with the building perfectly, which will reduce the sightseeing for the building and environment around.
4. Back up with electric heater so that in the day without sunshine hot water can also be used.
5. Can be combined with gas or electric heater.
6. Max. Pressure: 12bar; Operating Pressure: 6 bar
7. It can be used for other function, such as warming.

Solar water heaters working principle:

1. The solar collector absorbs solar energy and transmits it to the solar water heater tank through circulation.
2. When the temperature of the collector reaches the set value, the controller starts the circulation pump automatically.
3. The circulation pump makes heat-conducting liquid circulate automatically.
4. The heat-conducting liquid transfers heat to water by lower heat exchanger in the water tank.
5. When the temperature difference between solar collector and heat pipe solar water heaters tank doesn't reach the set value, the circulation pump will be shut automatically.
6. In case the temperature of the water tank does not reach Tmax, Electric Heating Element will start to work automatically

Solar water heaters working station component:

1. Operating screen
2. Manometer
3. Pump speed adjust switches
4. Temperature difference circulation pump
5. Flow rate indicator
6. Return circuit connector
7. Safety valve
8. Expansion vessel connector9. Return circuit connector
10. Wall mounting
11. Expansion vessel:8L
12. Pressure resistance: 10 bar pressure for expansion vessel













Item Measured value
Heat conduction coefficient>99%
Axial heat transition auantity0.93-2.49kw/cm²
Heat conduction speed>200mm/s
Axial temperature difference1-2centi-degree/m
Starting temperature20centi-degree
Starting speed2min
Working temperature range30centi-degree~300centi-degree
Resistance to high temperatureNo deformation in 48hours under 250C high temp condition
Resistance to low temperature-35C
Life>10years

DescriptionSplit pressurized solar water heating system
Material of out manifold0.55mm thickness color steel/ fluorine carbon steel
Material of inner tankFood grade  1.5  mm thickness SUS304 stainless steel
Tank insulating layer50 mm 45kg/m³ high-density polyurethane foamed
Max pressure0.6 Mpa
Solar collector tube3.3 Borosilicate glass with N/Al coating
Thickness of glass tube1.6mm
Vacuum tube tightnessP≤0.005 Pa
Absorptionas=0.93-0.96 (AM1.5)
Emission ratioεh=0.04-0.06 (80C±5C)
Idle sunning property parametersY=220~260m2.C/KW
Average heat loss coefficientULT=0.6~0.7W/(m2.C)
Bracket:2.0mm thickness aluminum alloy
Tank capacity300L
Solar collector58x1800x 30  tube solar collector
Absorber area2.875  m²
Heat exchanger length30m

From its early beginnings in 2000 Redao (originally called Alinsidun Technologies) is a designer and manufaturer of solar water heating prodcts in China. All of our products are designed to ensure robust performance over a long lifespan. All Redao products are complied with CE, ISO9001-2008.

With our dedicated and experienced team, our specialised manufacturing base, as well as the continued focus on technical solutions and customer service, we are sure that Redao will remain the supplier of choice for many throughout the coming years.

Redao strives to maximize production outputs and quality using the very lastest in manufacturing techniques, and uses equipment with proven reliability and the flexibility to adapt to fast changing requirements of customers. If you are interested in Redao water heater system, please feel free to call us.

Redao brief profile:

2000>Alinsidun establish, the former name of Redao. Production of solar water heater tank begins.

2001>Alinsidun develop its first solar water heater. Rush production begins.

2002>Alinsidun opened sales and distribution office in Shanghai, China.

2003>Alinsidun was awarded "Observing contract & Valuing Credit Star factory" by Zhejiang Quality Examinations and Appraisal Center.

2004>Export production begins.

2005>Alinsidun observed Good Quality control system by Chinese Product Quality Management center. At the same time, Alinston became the mumber of China Solar water Quality Control System.

2006>Alinsidun was awarded "China Solar Water Heater Most Famous Brand" by China Product Quality Management Center.

2007>Alinsitun complied with the Quality Assurance Requirements of ISO 9001-2000

2011>Redao became the company name instead of Alinston, and Redao solar water heaters complied with CE certification. In Aprial, Redao complied with ISO 9001-2008.

2012>QAL mark registered.
