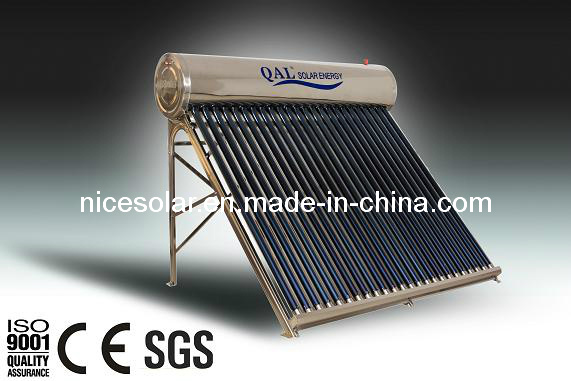

Qal 2016 Non Pressure Solar Water Heater (QAL-BG-24)

Qal 2016 Non Pressure Solar Water Heater (QAL-BG-24)
Price: US $ 174.98-175.85/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 34/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: QAL-BG-24
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inner Materials: SUS304-2b, SUS 316L, SUS 316 or Option
Capacity: 240L, or Optional
Electric Heater: 1500W, 2000W Optional
Export Packing: Cartons with Foam
Outer Material: SUS201/ SUS202 Steel
Angle: 27'-45'
Max. Capacity: >200L
Structure: Compact Type
Pressure: Unpressurized
Interior Material: Stainless Steel
Collector Components: Glass Vacuum Tube
Composition: Bracket
Certification: CCC

Product Description


Solar Water Heating System
.Unpressurized solar water heating system

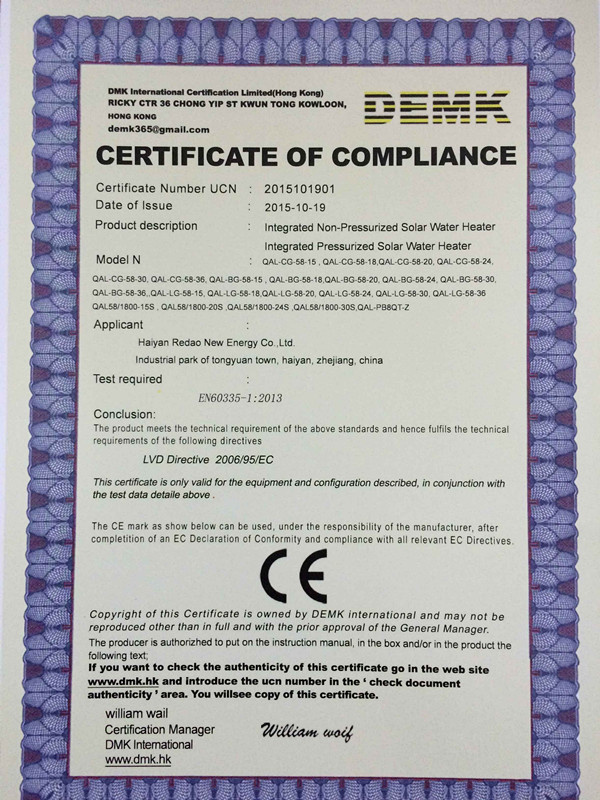

.Certification:CE, ISO9001
.5-15 years warranty


Solar water heating system details
Model: QAL-BG-24

How solar water heating systemworks,

1. Solar water heating system of all glass evacuated tube collector integrated with storage tank, are ideal for use in houses and other applications where cheap, reliable hot  water supply is required. They are simple, economic and practical.
2. As the specific gravities of hot water and cold water are different, cold water goes downward and hot water goes upward.
3. When cold water in evacuated tubes is heated, it becaomes lighter and goes to the water tank, while cold water in the tank goes down to the evacuated tubes.
4. Through this circulation, the cold water in the solar water heating system tank will be gradually heated.

Solar water heating system features

1. Cheap and reliable solution, Simple structure, Easy installation
2. High efficiency
3. Withstands water pressure no more than 0.1MPa
4. Operated without any power supplying
5. Electric heater can be used as back up in rainy days
6. Hot water can be used directly, or can be used as a pre-heated

Solar water heating system optional accessories

1. Assistant tank: 3/5/8/10/12/15/20L
2. Controller
3. Electrical heater: 1.5/2/2.5kw

System information,

DescriptionStainless steel Solar Water Heater
Material of out tank0.4mm SUS202/SUS304 stainless steel
Material of inner tankFood grade 0.4mm thickness SUS304 stainless steel
Tank insulating layer55mm 45kg/m³ high-density polyurethane foamed
Inlet and outlet holeMale G 1/2, 3/4
Max pressure0.05 Mpa
Solar collector tube3.3 Borosilicate glass with N/Al coating
Thickness of glass tube1.6mm
Vacuum tube tightnessP≤0.005 Pa
Absorptionas=0.93-0.96 (AM1.5)
Emission ratioεh=0.04-0.06 (80C±5C)
Idle sunning property parametersY=220~260m2.C/KW
Average heat loss coefficientULT=0.6~0.7W/(m2.C)
Bracket:1.4mm thickness,7cm width SUS201/SUS202 stainless steel
Structure of tank5 holes for air vent,overflow,water inlet and outlet,electric heater
Welding:Argon arc welding
Fastening pieces:Made of  stainless steel screw
Absorber area2.801m²
Tube quantity24tube 58x1,800mm
Tank capacity240L




From its early beginnings in 2000 Redao (originally called Alinsidun Technologies) is a designer and manufaturer of solar water heating prodcts in China. All of our products are designed to ensure robust performance over a long lifespan. All Redao products are complied with CE, ISO9001-2008.

With our dedicated and experienced team, our specialised manufacturing base, as well as the continued focus on technical solutions and customer service, we are sure that Redao will remain the supplier of choice for many throughout the coming years.

Redao strives to maximize production outputs and quality using the very lastest in manufacturing techniques, and uses equipment with proven reliability and the flexibility to adapt to fast changing requirements of customers. If you are interested in Redao water heater system, please feel free to call us.

Redao brief profile:

2000>Alinsidun establish, the former name of Redao. Production of solar water heater tank begins.

2001>Alinsidun develop its first solar water heater. Rush production begins.

2002>Alinsidun opened sales and distribution office in Shanghai, China.

2003>Alinsidun was awarded "Observing contract & Valuing Credit Star factory" by Zhejiang Quality Examinations and Appraisal Center.

2004>Export production begins.

2005>Alinsidun observed Good Quality control system by Chinese Product Quality Management center. At the same time, Alinston became the mumber of China Solar water Quality Control System.

2006>Alinsidun was awarded "China Solar Water Heater Most Famous Brand" by China Product Quality Management Center.

2007>Alinsitun complied with the Quality Assurance Requirements of ISO 9001-2000

2011>Redao became the company name instead of Alinston, and Redao solar water heaters complied with CE certification. In Aprial, Redao complied with ISO 9001-2008.

2012>QAL mark registered.
