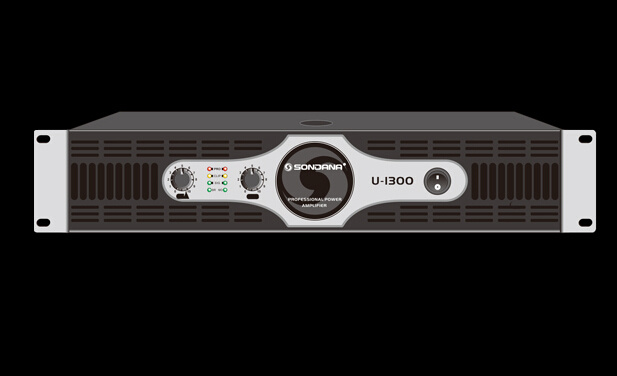

Professional Power Amplifier for U series
| Model | U350 | U500 | U800 | U1100 | U1300 |
| Output Power (EIA 1KHz 1%THD) 8Ω | 350W*2 | 500W*2 | 800W*2 | 1100W*2 | 1300W*2 |
Output Power
(EIA 1KHz 1%THD)4Ω | 525W*2 | 750W*2 | 200W*2 | 1650W*2 | 1950W*2 |
Output Power
(EIA 1KHz 1%THD) bridge | 105W | 1500W | 2400W | 3300W | 3900W |
| Output Interface | binding for stereo&bridge output | binding for stereo&bridge output | binding for stereo&bridge output | binding for stereo&bridge output | binding for stereo&bridge output |
| Frequency Response | 5Hz-30KHz,-1dB | 5Hz-30KHz,-1dB | 5Hz-30KHz,-1dB | 5Hz-30KHz,-1dB | 5Hz-30KHz,-1dB |
| Input Sensitivity | 0.77V,1.0V,32dB | 0.77V,1.0V,32dB | 0.77V,1.0V,32dB | 0.77V,1.0V,32dB | 0.77V,1.0V,32dB |
Balance Input
Impedance | 20KΩ/Balanced,
10KΩ/
un-balanced | 20KΩ/Balanced,
10KΩ/
un-balanced | 20KΩ/Balanced,
10KΩ/
un-balanced | 20KΩ/Balanced,
10KΩ/
un-balanced | 20KΩ/Balanced,
10KΩ/
un-balanced |
| Noise(A weighted) | 100dB | 100dB | 100dB | 100dB | 100dB |
| Distortion | ≤0.03% | ≤0.03% | ≤0.03% | ≤0.03% | ≤0.03% |
Resolution
Output Power (EIA 1KHz 1%THD) 8Ω | 80dB | 80dB | 80dB | 80dB | 80dB |
Damping Factor
8Ω | 1000 | 1000 | 1000 | 1000 | 1000 |
| Slew Rate | 20V/us | 20V/us | 20V/us | 20V/us | 20V/us |
| Protection | soft star,Short Circuit,Limiter,
DC Fault,AC Line Fuse,Thermal Cut | soft star,Short Circuit,Limiter,
DC Fault,AC Line Fuse,Thermal Cut | soft star,Short Circuit,Limiter,
DC Fault,AC Line Fuse,Thermal Cut | soft star,Short Circuit,Limiter,
DC Fault,AC Line Fuse,Thermal Cut | soft star,Short Circuit,Limiter,DC Fault,AC Line Fuse,Thermal Cut |
| Cooling | Two steps speed fan | Two steps speed fan | Two steps speed fan | Two steps speed fan | Two steps speed fan |
| Power supply | AC:22-240V 50Hz | AC:22-240V 50Hz | AC:22-240V 50Hz | AC:22-240V 50Hz | AC:22-240V 50Hz |
| Net weight | 11.8kg | 13.1kg | 15kg | 15.5kg | 16.5kg |
Dimensions
(W*D*H) | 482*301*88mm | 482*301*88mm | 482*301*88mm | 482*301*88mm | 482*301*88mm |
If you need more detail, please let me know ,We are glad to offer our best service in the future.
