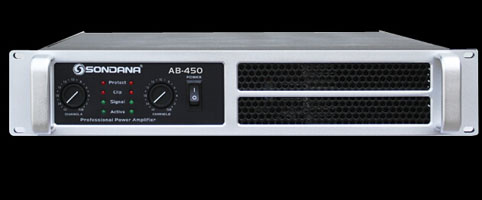

Professional Power Amplifier for AB series
| Model | AB 250 | AB 350 | AB 450 | AB 550 | AB 650 | AB 850 | AB 1250 | AB |
Stereo Mode
(8U) | 250W | 350W | 450W | 550W | 650W | 850W | 1250W | 1500W |
Stereo Mode
(4U) | 375W | 525W | 675W | 825W | 975W | 1275W | 1875W | 2250W |
Bridge mono
Mode(8U) | 750W | 1050W | 1350W | 1650W | 1950W | 2550W | 2550W | 4500W |
FREQUENCY
RESPONSE | 20Hz-20KHz | 20Hz-20KHz | 20Hz-20KHz | 20Hz-20KHz | 20Hz-20KHz | 20Hz-20KHz | 20Hz-20KHz | 20Hz-20KHz |
THD+N(RATED
Power) | <0.03%
| <0.03% | <0.03% | <0.03% | <0.03% | <0.03% | <0.03% | <0.03% |
| Input SENSITIVITY | 0.775V/1.0V/1.4V | 0.775V/1.0V/1.4V | 0.775V/1.0V/1.4V | 0.775V/1.0V/1.4V | 0.775V/1.0V/1.4V | 0.775V/1.0V/1.4V | 0.775V/1.0V/1.4V | 0.775V/1.0V/1.4V |
INPUT
IMPEDANCE | >20K/>10K | >20K/>10K | >20K/>10K | >20K/>10K | >20K/>10K | >20K/>10K | >20K/>10K | >20K/>10K |
| NOISE (A Weighted) | -105dB | -105dB | -105dB | -105dB | -105dB | -105dB | -105dB | -105dB |
| Resolution | >-60dB | >-60dB | >-60dB | >-60dB | >-60dB | >-60dB | >-60dB | >-60dB |
| Work | Class | Class | Class | Class | Class | Class | Class | Class |
| Input connection | XLR | XLR | XLR | XLR | XLR | XLR | XLR | XLR |
| External power supply | 220V-240V,50-60
Hz | 220V-240V,50-60
Hz | 220V-240V,50
-60 Hz | 220V-240V,50-60
Hz | 220V-240V,50
-60 Hz | 220V-240V,50-60
Hz | 220V-240V,50
-60 Hz | 220V-240V,50-60
Hz |
Dimension(W*
D*H) | 88*483*430mm | 88*483*430mm | 88*483*430mm | 88*483*430mm | 88*483*430mm | 88*483*430mm | 88*483*430mm | 88*483*430mm |
| Weighth | 14kg | 16KG | 18kg | 20kg | 22kg | 24kg | 24kg | 33kg |
If you need more detail, please let me know ,We are glad to offer our best service in the future.
