| Prod Model: |
CPR-SERIAL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Heat Pipe Size: |
90mm Instead of 70mm |
| Water Tank Capacity: |
Based on Real Volume |
| Max. Capacity: |
100-200L |
| Structure: |
Compact Type |
| Pressure: |
Pressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Composition: |
Collector |
| Certification: |
ISO9001 |
Product Description
Key Points:
Model : CPR-SERIAL
Vacuum tubes : 58-1800mm,(red tube),15,18,20,24,30 tubes,
Water tank size(inner/outer dia.) : 470/360mm
Heat exchanger : copper or stainless steel
Insulation : 55mm high density polyurethane
Bracket : 1.5mm galvanized steel
Bolts and nuts:SUS304-2B
Asssistant tank: 5L/8L
Working Principle:
The vacuum tubes absorb the sun's rays and turn the rays into energy, heating the water in the tubes. As the temperature of the water is rising, The density turns slightly, then the hot water in the tubes floats into the tank, and the cold water in the tank goes down to the tubes. Keeping natural cycling like this, the water in the tank will be heated.
The vacuum tubes heat the water in the tank, but the users do not use the water in it directly. The cold water comes into the exchanger from one side and the hot water heated by the exchanger, and then the hot water comes out from the other side for use.
Characteristic:
Use the copper coil as the heat exchanger, according with international fashion trend,it is simple to Install and use.
It takes the advantage of the tap water's pressure. more pressure, more comfortable.
It can produce hot water with constant temperature, it is safe and comfortable to use.
The water can be heated rapidly, so it can produce the high quality hot water.
It can produce more hot water than the general types because it isn't.
Advantage:
It takes the advantage of the tap water's pressure, more pressure, more comfortable
Simple to install, if only for hot water you can install the system at any place facing the sun.
Langushingly constant temperature and instant hot-water.
Longer vacuum tubes and thicker insulation layer ensure better efficiency.
Water temperature reach up to 95ºC in 8 hours
Lower working noise and longer life-patent cocentric coil design greatly reduced the damage to the inner tank caused by the shake when water flows though the coil.
Instantaneous heat exchange plentiful hot water-high pressure and fresh hot water runs down simultaneously with tap open.
Our copper coil is specially designed, efficiency is 8% higher than common ones, water difference is less then 3 degree.
The copper coil fixed parts is not welded into the inner tank, and it avoids corrsion, no leakage in the future.
? Perfect insulation performance realized by world advanced high pressure quantitative thermostatic foaming technology and 24 hours slaking time.
? Insulation layer: 55mm thickness gold Foam density in thickness to assure normal use in freezing area.
Feature:

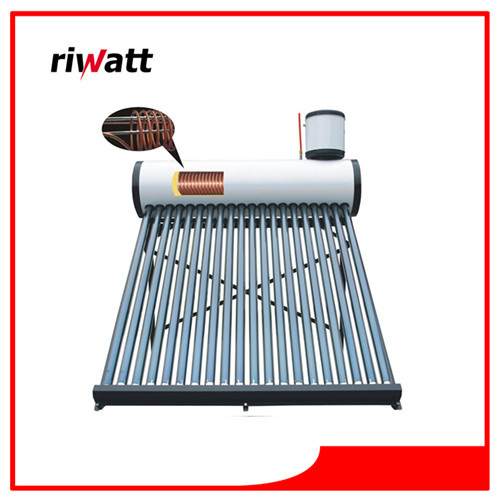

? Riwatt pre-heated solar water heater is a new product,it combines the advantages of Non-pressure solar water heater and Separated pressurized solar water heater together.
? The system is put a copper coil inside the Non-pressure solar water heater water tank, this product improves the problems of traditional solar water heater as limited hot water volume, long heat time, few out water, the worse water quality and so on.
? The "twice heat exchange" technology makes the high temperature,high efficiency and fast & large amount hot water circulation come true.
Key Points:
good water quality
It use tap water directly, live water but not sedimentary water.
pressure endurance
The thick of coil is 0.8mm, which can withstand 6-12 bar.
working automatically
A feed tank on the top, it will supply water automatically. What you need is just to open tap and have a wash.
no scale, high efficiency
Water in the tank wouldn't be used just to heat the coil, the water in the tank will keep hot and no scale.
The vacuum tubes will be kept clean, and system has a higher efficiency than normal system.
