| Prod Model: |
CHR-serial |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Heat Pipe Size: |
90mm Instead of 70mm |
| Water Tank Capacity: |
Based on Real Volume |
| Max. Capacity: |
100-200L |
| Structure: |
Compact Type |
| Pressure: |
Pressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Composition: |
Collector |
| Certification: |
CE |

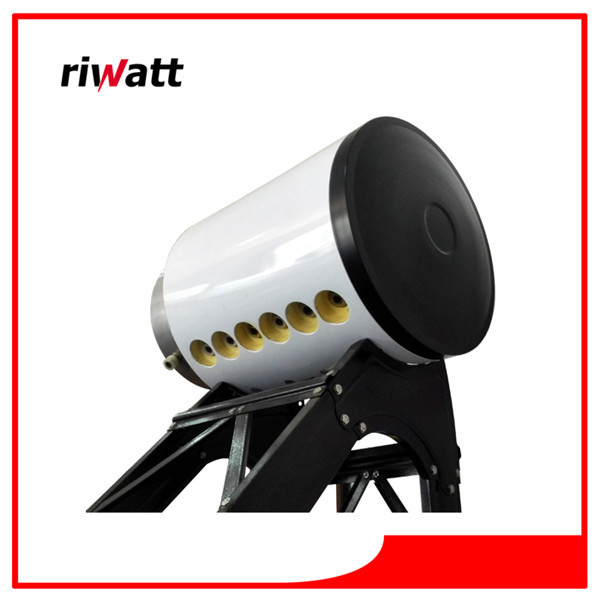

Product Description
Key Points:
Model : CHR-Serial
Vacuum Tubes: 58-1800mm,10,12,15,18,24,30 tubes,
Inner Tank Material & thickness: SUS-304-2B,1.2mm
Outer Tank Shell: high quality color
Water Tank Size(inner/outer dia.) : 470/360mm
Heat Pipe Material: TU1 copper,14*90mm
Working Pressure:0.6Mpa
Testing Pressure: 1.2Mpa
Insulation : 55mm high density polyurethane
Bracket : 1.5mm galvanized steel
Compact PressurizedSolar Water Heater (Heat PIpe) Wrking Principle:
The vacuum tube absorb the solar ray and conduct the heat to HEAT PIPE(inside) by the aluminum slice, because the heat-pipe is connected with the copper connector which in the water tank, so there exists heat exchanging between the heat- pipe and copper connector, when the heat exchanging goes on, the water in the tank will be heated and become hot water.
Compact PressurizedSolar Water Heater (Heat PIpe) Characteristics:
1. Pressurized system ensure to provide strong water flow for shower
2. This type doesn't need any controller, circulation pump, expansion pump. Feeder tank, it also can supplement cold water automatic
3. We use the advanced ring-argon arc welding .ensure the high quality.
4. Thickness of inner tank: 1.2mm-2.0mm food grade SUS304 stainless steel
5. Even there is a tube broken; the system can work in a good condition
6. This type is cheaper and easy install than the separated pressurized solar water heater. i think it will popular and have a good market
Compact PressurizedSolar Water Heater (Heat PIpe) Advantage:
High performance
With the cutting-edge vacuum-tube collecting technology, over 93% of sunshine energy is converted to thermal energy for heating and no circulation loss.
Thicker insulation layer, functioning well in winter, even in minus-37 degree environment.
Free Maintenance
No glycol, simple structure. No annual and periodical check-ups or maintenance is necessary. Blind sleeve design, no pollution, no-leaking heat pipe, easy installation.
No water in vacuum tubes, one broken tube will not affect the function of the whole system.
Year-round Operation
With the freezing-proof technology, the system is designed and installed to operate for all seasons.
Electric heater is optional to use, to ensure plenty hot water in rainy days.
Customer-friendly
Vacuum tubes are directly connected to the tank, low heat loss. Blind sleeve design and SUS316 inner tank is suitable for poor quality water supply area.
Aluminum alloy frame is optional. Install angle(degree): 30/45/60.
High reliability
System is simply working with the city net water, without pumps. Inner tank made by stainless steel SUS304-1.2/1.5/2.0/2.5mm or 316L.
Working with high pressure, directly connected to running water, automatically functioning. With T/P valve and exhaust valve, it protects the tank from shrinking.
Compact PressurizedSolar Water Heater (Heat PIpe) Feature:
Superior heat preservation ensured by 55mm polyurethane foam insulation layer
Designing the immersion heater hole in advance for the cloudy, snowy, and rainy days
Suitable for mains pressure water (up to 0.6MPa)
Material: Stainless steel / Colour sheet
Inner tank material: using pressurized material, the inner tank has the advantages as follows:
No corrosion: can prevent corrosion lead from chlorine ion, sea water, salt water or buck water.
No leakage: applied for special anti-corrosion laye
Sanitary water: the qualities showed above make it possible that waterquality is pure and no twice pollution
Able to be used in all climates
Automatic water supply, could supply water self-acting without any other installation and could able to be pressured.
Compact PressurizedSolar Water Heater (Heat PIpe) Scope of Application:
It suit for the climate where are very hot, it will reach the best efficiency when use it near to the equator.
Compact PressurizedSolar Water Heater (Heat PIpe) Package:
Solar Water tank, Solar Standing Frames, Solar Heat pipe are separately packed in one carton. Cartons can be loaded into container directly.
Notice:
1. The angle of the frame can be changed in the production as the virtual geographical condition of the customers. We can design the suitable angle for the customers.
2. We offer the spare accessories and tubes for your order for free.
3. We can offer the different material of water tank , frame , and tubes according to your request.
Warranty:
riwatt covers failure due to defects for the following warranty time periods.
All-Glass Evacuated Collector Tube Warranty: 15 (FIFTEEN) Years
Water Storage Tank Warranty: 5 (FIVE)Years
Bracket/Support Warranty: 5 (FIVE)Years
Warranty of Other System Components: 1 (ONE) Years
