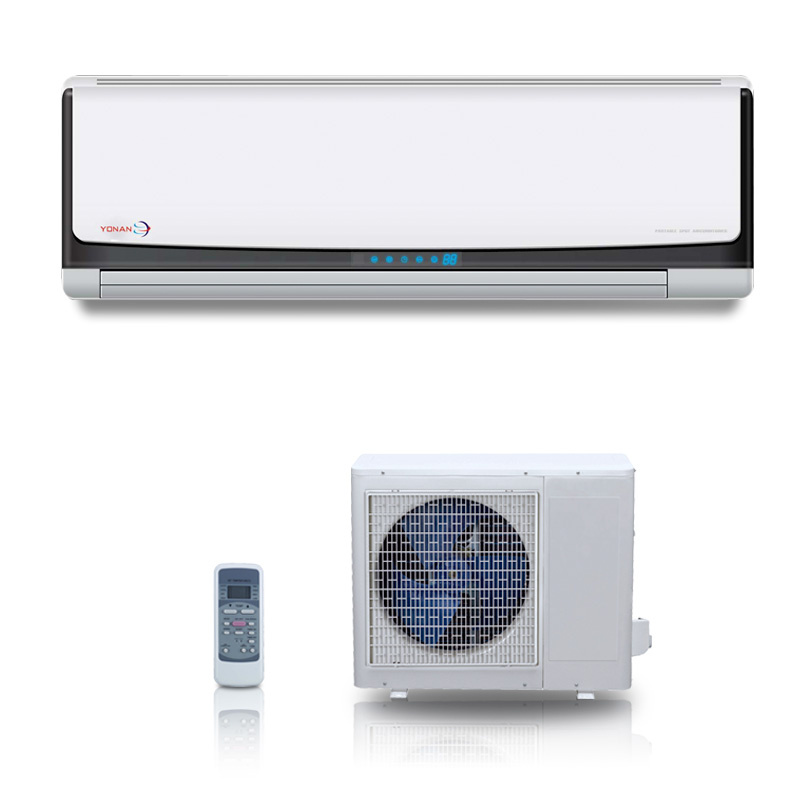

Mini Split Inverter Air Conditioner With High Seer
70000BTU, 8500BTU, 11000BTU, 17000BTU, 24000BTU
Only Cooling, Cooling and heating.
1. Compressor: Toshiba, Mitsubishi, HITACHI, Panasonic
2. Power: 220V-240V/50Hz
3. Gas: R22, R410A, R407C
4. Energy-efficient T3 or T1
5. Low Temperature start, electricity heating
6. English LCD remote control, compact and handy
7. Two control ways: Manual control and remote control
Specification
| Power supply | Ph-V-Hz | 220-240V~ 50Hz, 1Ph |
| Cooling | Capacity | Btu/h | 9000(2050~11800) |
| Input | W | 820(230~1120) |
| Rated current | A | 3.6(1.0~4.7) |
| EER | W/W | 3.22 |
| Heating | Capacity | Btu/h | 10000(3200~13800) |
| Input | W | 810(230~1010) |
| Rated current | A | 3.6(1.0~4.2) |
| COP | W/W | 3.62 |
| Moisture Removal | L/h | 1.0 |
| Max. input consumption | W | 1650 |
| Max. current | A | 7.5 |
| Starting current | A | ---- |
| Compressor | Model | | DA108X1C-23EZ |
| Type | | ROTARY |
| Brand | | TOSHIBA |
| Refrigerant type | | g | R410A/660g |
| Design pressure | | MPa | 4.2/1.5 |
| Refrigerant piping | Liquid side/ Gas side | mm(inch) | Φ6.35/Φ9.52(1/4"/3/8") |
| Max. refrigerant pipe length | m | 20 |
| Max. difference in level | m | 8 |
| Connection wiring | | 1.5(Optional) |
| Plug type | | 1.5 / VDE |
| Thermostat type | | Remote Control |
| Operation temperature | Indoor(cooling/ heating) | ºC | ≥17/≤30 |
| Outdoor(cooling/heating) | ºC | 0~50/-15~34 |
| Application area | m2 | 13-22 |
| Qty'per 20' /40' /40'HQ | | 148/307/340 |
