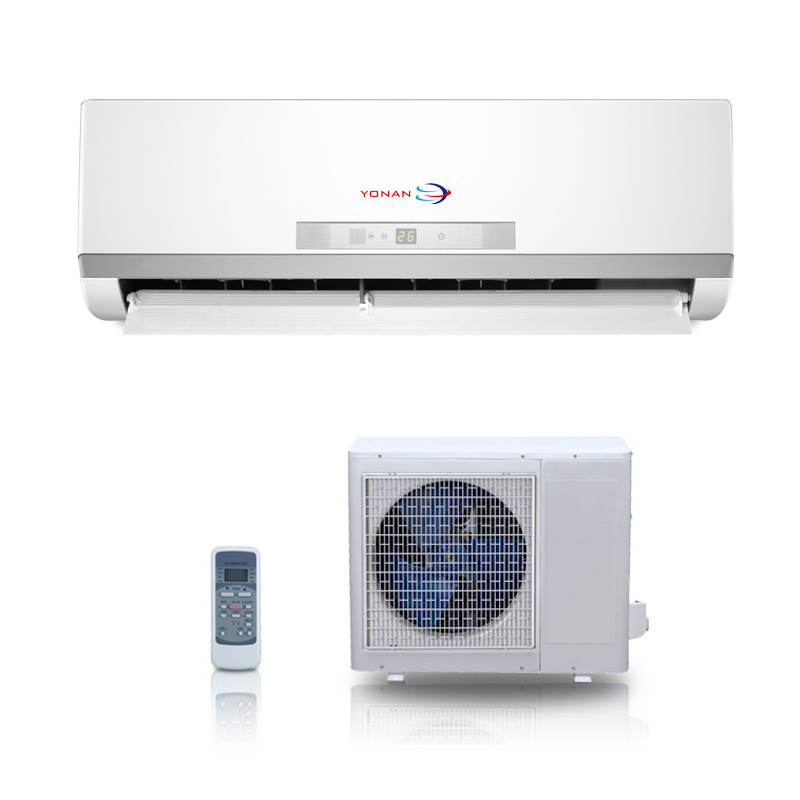

European ERP 3.8 A++ Room Air Conditioner
Feature
1. ERP 3.8 Eropean market room air conditioner
2. Function: Cooling only, Cooling and heating
3. High Efficiency Compressor
4. Hydrophilic Fins & Inner Threads Copper Tube
5. Quiet and Modern design
6. Remote Control
7. Sleep Operation
8. Strong Cooling And Heating
9. Wide Voltage Running
Specification
| Power supply | Ph-V-Hz | 220-240V~ 50Hz, 1Ph |
| Rated Cooling | Capacity | Btu/h | 22000(7710~24640) |
| Cooling Power input | W | 176~2780 |
| Cooling Current | A | 0.77~12.08 |
| Rated Heating | Capacity | Btu/h | 25000(3610~30000) |
| Heating Power input | W | 228~3140 |
| Heating Current | A | 0.99~13.65 |
| Seasonal Cooling | Pdesignc | kW | 6.5 |
| SEER | W/W | 6.4 |
| Energy Efficiency Class | | A++ |
| Heating(Average ) | Pdesignh | kW | 6.5 |
| SCOP | W/W | 3.8 |
| Energy Efficiency Class | | A |
| Tbiv | ºC | -6 |
| Tol | ºC | -15 |
| Moisture Removal | L/h | 2.4 |
| Max. input consumption | W | 2950 |
| Max. current | A | 13.5 |
| Starting current | A | ---- |
| Compressor | Model | | DA150S1C-20FZ |
| Type | | Twin-rotary |
| Brand | | GMCC |
| Refrigerant | Type | | R410A |
| GWP | | 1975 |
| Charged quantity | Kg | 1.95 |
| Design pressure | MPa | 4.2/1.5 |
| Refrigerant piping | Liquid side/ Gas side | mm(inch) | Φ9.52/Φ15.9(3/8"/5/8") |
| Max. refrigerant pipe length | m | 30 |
| Max. difference in level | m | 20 |
| Connection wiring | | 2.5(Optional) |
| Plug type | | -- |
| Thermostat type | | Remote Control |
| Operation temperature | Indoor(cooling/ heating) | ºC | 17~32/0~30 |
| Outdoor(cooling/heating) | ºC | -15~50/-15~30 |
| Application area | m2 | 32-53 |
| Qty'per 20' /40' /40'HQ | | 69/140/160 |

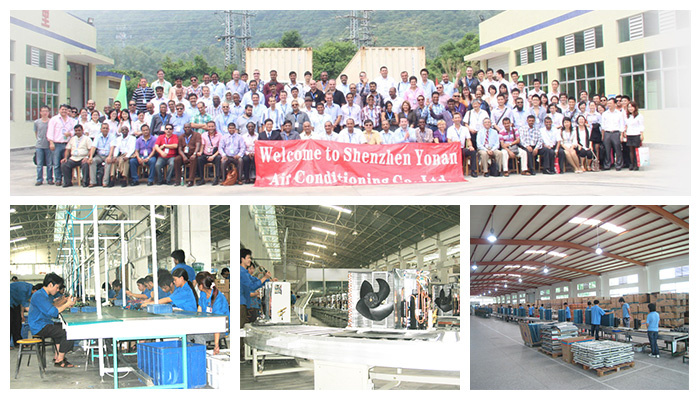

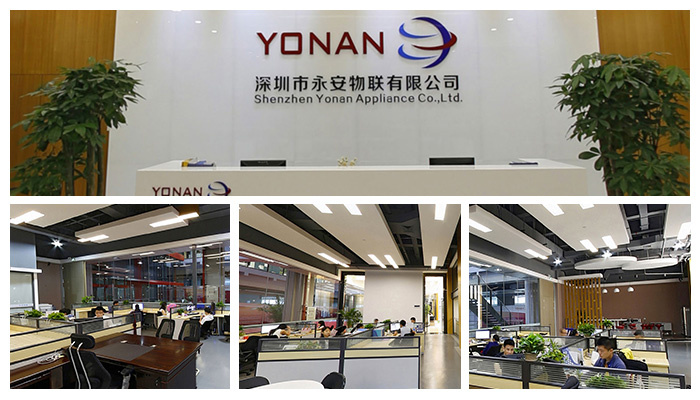

Shenzhen MoreTrade Network Technology Co., Ltd. ( Predecessor is Shenzhen Yonan Appliance Co., Ltd. Found in 2002).
