Main Features

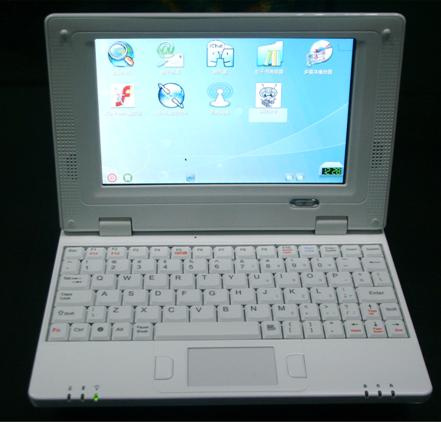

- Super Slim Mini-Laptop
- 7" Touch screen Digital TFT Widescreen Display
- 416MHz CPU, 64MB RAM, 1GB Storage
- WinCE 5.0 net Operation System
- Building Stereo Speakers
- Internet Connect Port
- USB Port & SD/MMC Extend Storage Slot
"- Internal Big Volumn Li-polymer Battery
"- Support external USB standard Mouse & Keyboard
"- Support external VGA
"- Support Electronic secretary, Meeting record with Audio
| Brand | Classmate 2008 |
| Customer model No. | EPC-2008 |
| Safety and regulation | |
| | |
| AC cord | as requested |
| Display Features |
| Display Technology | TFT Digital Touch screen LCD Display |
| Screen | 7" wide screen |
| Resolution | 640 x 480 |
| Brightness | 300 cd/m 2 |
| Contrast | 300:1 |
| View Angle | 60º |
| Colors | 260K Ture Color |
| Hardware |
| CPU | Intel PXA270C5, 416MHz |
| RAM | 64MB |
| Internal Storage | 1GB Built-in Flash, maximum 2GB |
| Extend Storage | SD/MMC Card, up to 4GB |
| Keyboard | Support external keyboard |
| Hot Key | H1~H2 |
| VGA | Support external VGA |
| Reset Key | yes |
| | |
| Software |
| Operation System | WinCE 5.0 net |
| Microsoft Office | optional |
| Internet Explorer | optional |
| Windows Media Player | optional |
| Others | as requested |
| Audio |
| Built-in Stereo Speakers | 1W x 1 |
| Earphone | 0.5Wx2 |
| Microphone(Build in) | 1 |
| Terminals |
| Power Input | 1, DC 10V |
| Mini USB Port (DEVICE) | 1 |
| Standard USB Port | 3 ( 500MA x 1 , 100MA x2 ) |
| SD/MMC Card Reader | 1 |
| Network Connect (RJ45) | 1(USB to RJ45) |
| Earphone Output | 1 |
| | |
| Accessories |
| Rechargeable Battery | Li-polymer Battery 3.7V, 2100mAh |
| AC/DC Power Adapter | 1 |
| USB Cable | Optional |
| Stereo Headphone | 1 |
| Touch pen | 1 |
| Guide Manual | 1, English |
| Protection bag | 1 |
| Power supply | AC 100-240V 50/60Hz, DC 10V, 2.0A |
| Shipping Details |
| Dimension (WxDxH)-Unit | 196×126×16.8mm |
| -Giftbox | 300X180X120 mm |
| - Carton | 320x660x400mm |
| Weight-Net | 518g (including battery) |
| -Giftbox | 1050g |
| -Carton | 11kg |
| 20’’/40’’/40’’HQ Loading: | 3150/6450/7740 PCS |
Established in 2004, Aimson has been one of the first pioneers in the consumption Field in Shenzen of China who has been capable of applying consumption Technology based products into the various Vertical Market needs like Mobiles, MP3/4/5 Players, USB Sticks, different kinds of Memory Cards, Digital Photo Frame, All-in-one TV PCS, Laptop and Embedded products (IPC).
With years of experiences in the Vertical product field, we have realized that the most profitable business focus of our business partners in the Vertical System Integration Market, the so called Vertical System Integrators or VSI Distributors value the most on their Project based businesses, in order to fulfill this needs, our entire team has been tuned up to address our main efforts on the unique business model "PACTS" which leads us further to our slogan_"Customized Solutions with PASSION".
The Business Model "PACTS"--
1) Passionate Flexibility
2) A+ Accuracy
3) Competitive Customization
4) Time-to-market
5) Satisfactory Solutions
The Three Principles:
The whole company's focus is running by the "PACTS" business model, with the motivation of the three principles, "Value-Added", "Differentiated Value-Add" & "Customized", these three principles go for the way we see our vendors, the way we act and the way how we work with our business partners, we always think about how we should apply these three principles into our daily interaction/cooperation with our Vendors & business Partners, we know the fact is, if we can create the Value-Add, Differentiated Value-Add or even better the Customized Differentiated Value-Add, then
The chance for all parties to stay in the food chain for the long run is more secured.
The Consistent Quality:
We know that the Quality should be designed-in right from the very beginning and must be carried out with long term commitment to ensure its consistency can be stabilized.
