1. Introduction:

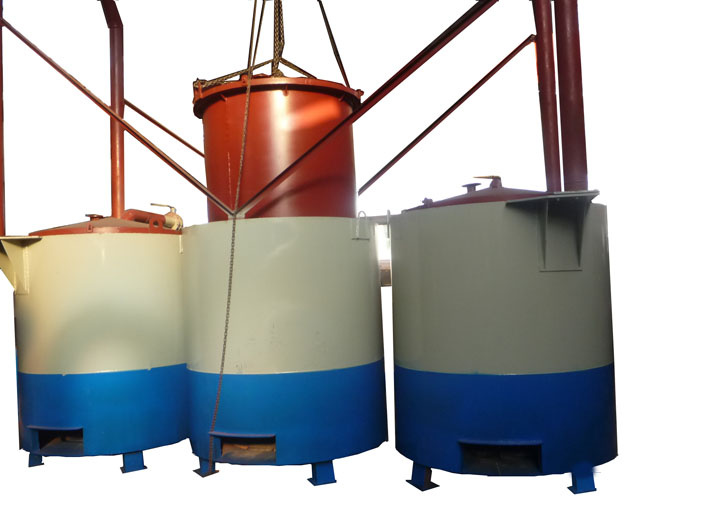

The whole gas flow type includes the outer stove, three set of inner stoves, and the 3ton hoisting tools.
When one inner stove have been finished carbonization, we will use the hoisting tools hoist the inner stove from the outer stove, then let the inner stove natural cooling, at the same time, we can put another inner stove into the outer stove, which will save a lot of cooling time, so the productivity effect increase a lot, it is the ideal choice for mass production of charcoal.
And the tube of fume extraction will recycle the gas flow which come from the inner stove during the carbonizing process for continue warming the stove, and it will save 70% energy consumption and will recycle 95% smoking, This method will not pollute the environment.
The whole machine include:
1. Outer stove
Includes heating room (for heating the stove), furnace body and heat-keeping layer (it is made of the heat insulating material, used for keep the heating)
2. Inner stove:
Consist of the stove tank body and the sealed top cap. Both of them are made of the heat resistance thermal steel. One set of carbonization stove include two or three carbonization basket, and the diameter are 1460mm, 1430mm, and 1400mm, and the three carbonization basket can be stack together, easy for loading and transporting, and it will save a lot of space and transport charge.
3. Fume extraction tube:
When during the process of carbonizing, there will be some smoke. ( can be burning) the smoke can return to the furnace through tube for purifying, after purification, the combustible smoking can be flow into the heating room of the main furnace for heating the stove again, ( see picture NO. 1)
4. Smoking purification system
This system is consisting of purification tank and the exhaust-heated cycle pipe. And the Smoking
Purification system are used for purify the smoking (can not Burning) and filter the wood tar. The
Smoking through the purification system will Become water vapor, and it will not pollute the air.
5. The hoisting equipment: It is one ladder with one 360 degree lifting tools. And it is easy for loading and unloading the stove, and can reduce labor intensity, and it can be avoid the high-temperature burn when lift the carbonization basket
The feature of the equipment
1. Easy operate and maintain, higher safety, energy saving
2. High carbonization rate, no smoking, little pollution, high efficiency
3. Newly developed carbonization stove, which can dry the materials with the superfluous energy produced in the process of carbonization. 6-8 hours per stove and can work continuously
4. The tube of fume extraction will recycle the gas flow which come from the inner stove during the carbonizing process for continue warming the stove, and it will save 70% energy consumption and recycle 95% smoking
|
specification |
carbonization stove |
|
capacity |
3ton/day |
|
weight |
4.8ton |
Gongyi Xiaoyi Mingyang Machinery Plant is located in Zhengzhou City, which is the biggest manufacturing base of charcoal making machinery. And we are the one of the earliest and largest manufacturers of renewable fuel & energy equipments and related machinery.
After 15 years development, now our company becomes an independent economic entity with the integration of science, engineering and trading department. our products and are widely accepted in both domestic and world market, and also exported to more than 30 countries, such as England, Russia, Sweden, Poland, Iran, Sudan, South Malaysia, Indonesia, Vietnam, etc.
Why the client choose us, because:
1. one of the largest manufactures of the briquette machine in China
2. the earliest manufacture of the briquette machine in China with 20 years experience,
3. get the ISO certificate and SGS certificate
4. We have the test center of the machine, and we bulit one realted company ( making the briquette and charcoal )with our machine.
5. Every machine will test before delivery and we will send the test video and other realted video to our client
6. all the motor of the machine with the CE certificate
7. product quality get the local government
guarantee
8. recommend clients for free, offer the layout drawing and the profit table
9. change the electrical power for free during warranty time.
10. offer the install video and free stuff training
