| Prod Model: |
MAR-15 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Mini Amplifier |
| Function: |
Pre-amplifier |
| Usage: |
Hi-Fi |
| Element Number: |
Monoamplifier |
| Used For: |
Professional |
| Conductive Mode: |
D |
| Tube Type: |
Transistor Amplifier |
| Voltage: |
AC220V or AC110V |
| Output Number: |
2 Channel Amplifier |
| Sound Channel: |
3 Channel Input Insert Amplifier |
Product Description

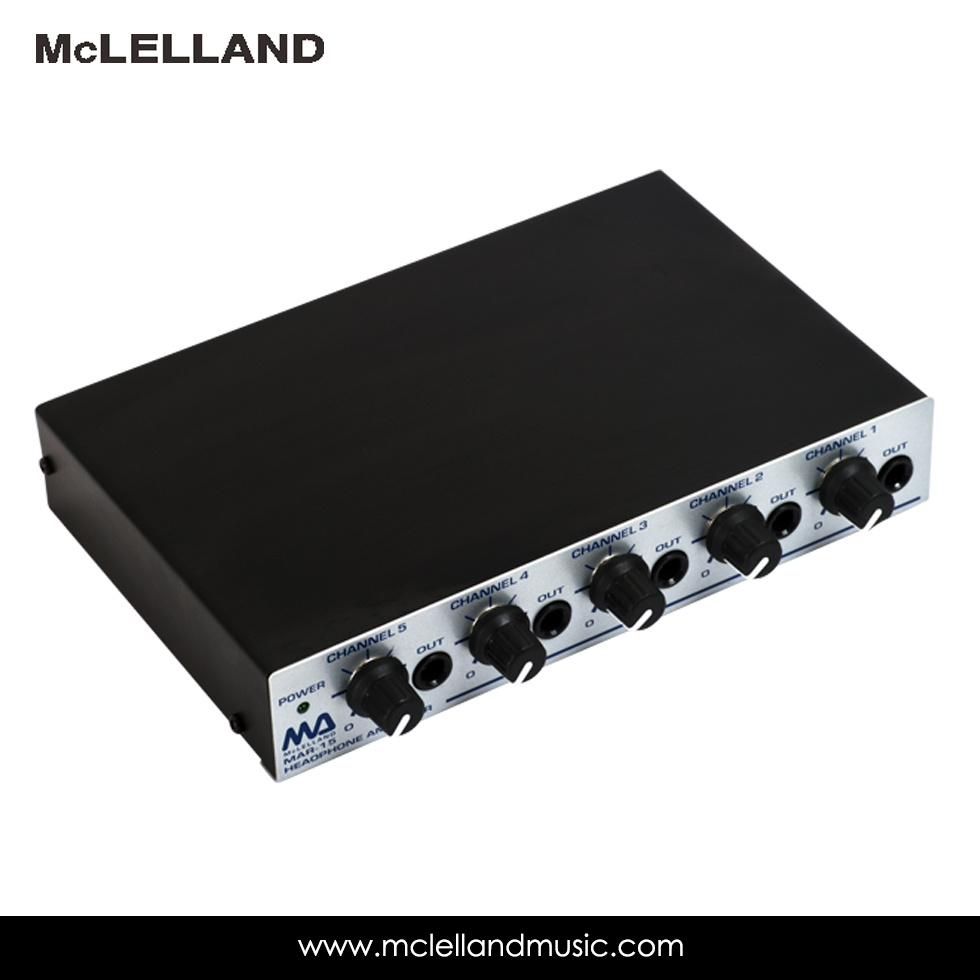

Headphone Amplifier(MAR-15)
Features:
5: 1/4 TRS Headphone Outputs with Individual Level Control
Lots of Gain
1/4 and RCA right and Left Inputs
Inserts on Two channels
1/4 TRS Stereo Input
Link Input/Output for combing Two Units
Specification:
Input Impedance: 10K Ohms
Max Input Level: +18 dBV
Max Gain: 26dB per channel
Maximum Output Power: 300 mW per channel
Output Impedance: 10 Ohms
S/N Ratio: < 0.08%
THD: < 0.08%
IMD(SMPTE): < 0.08%
Power: 12DC/12AC(adapter included)
Size: 7.5L x 4.8 W x 1.4 H(inch)
