| Prod Model: |
MQS-53R |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 100k Ù (Unbalanced): |
Max Input Level: +14dbv |
| Stereo 1/4" Trs Phone: |
Max Gain: 20dB |
| Type: |
Home Amplifier |
| Tube Type: |
Transistor Amplifier |
| Function: |
Pre-amplifier |
| Output Number: |
4 |
| Element Number: |
Monoamplifier |
| Usage: |
Professional, Civilian |
| Used For: |
Professional, Civilian |
| Sound Channel: |
4 Channel Output Stereo |
| Voltage: |
12V DC Adapter |
| Conductive Mode: |
12V DC Adapter |
Product Description

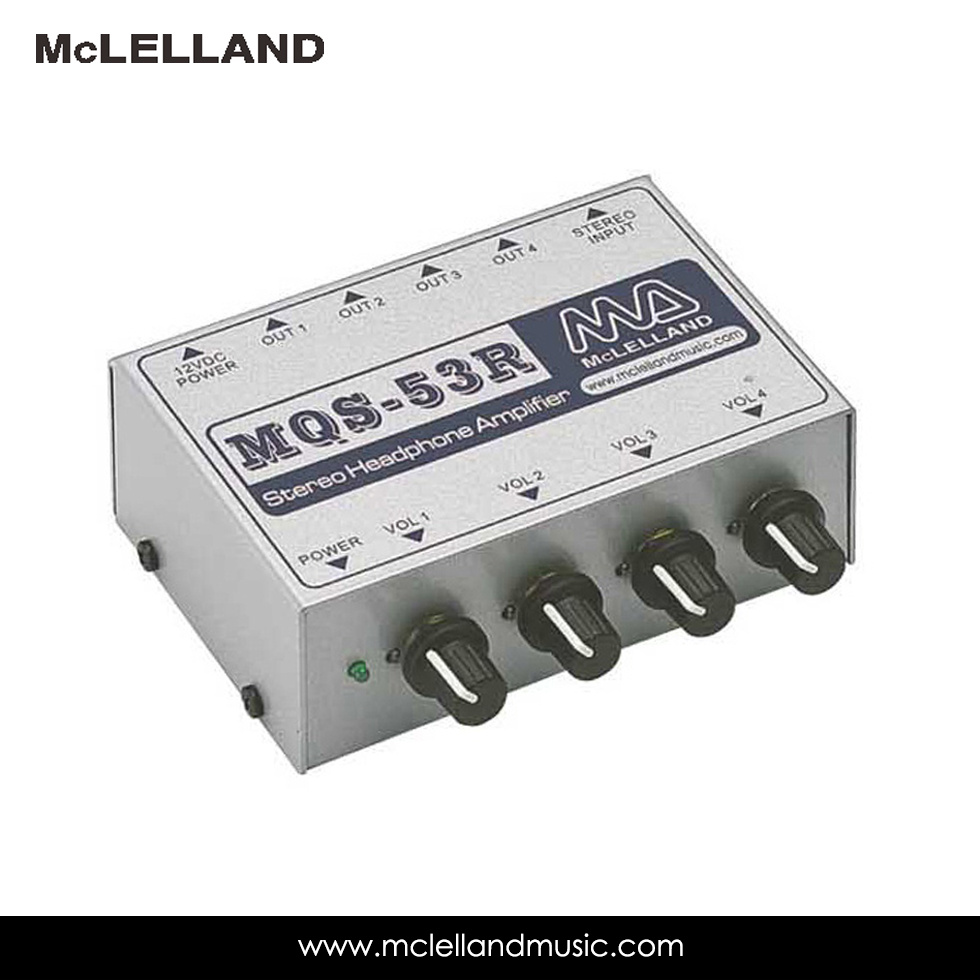

Single Input/ Four Output Stereo Headphone Amplifier(MQS-53R)
Feature:
It be used for band rehearsals and even home entertainment,
which provides amplification and individual volume control for up to 4
headsets and can be driven by either line-level or headphone amp
signals, stereo or mono.With Knob tybe volume control
1. Input impedance: 100KΩ (Unbance)
2. Max Input Level: +14dBV
3. Input connectors: Stereo 1/4" TRS phone Jack
4. Max Gain: 20dB
5. S/N Ratio: >90dB
6. THD: <0.08%
7. Power: 12V DC adapter
8. Dimension: 113*73*40(mm)
9. Weight: 336KG
| Input Impedance | 100K Ù (Unbalanced) |
| Max Input Level | +14dBV |
| Input Connectors | Stereo 1/4" TRS Phone jack |
| Output Impedance | 51Ù each output |
| Frequency Response | 20Hz ~ 20 KHz |
| Max Gain | 20dB |
| S/N Ratio | > 90dB |
| THD | < 0.08% |
| IMD (SMPTE) | <0.08% |
| Power | 12V DC adapter |
| Size | 113x 73x 40 (mm) |
| Weight | 336g |
Mansion Industry Co., Ltd. is a professional audio manufacturer, which includes R&D, design, sales and services department, was established in 1985, at the following address 5F, NO. 6, Szu-Wei Lane, Cheng Road, Hsin-Tien City, Taipei, Taiwan, R. O. C.
Our main products are Equalizers, Crossovers, Power Amplifiers, Video Signal Solution, MIDI Controller, USB/Firewire Audio Interface, Mixers, Digital Effect Processors, Speaker, Microphones and Home Installation Audio products.
We promote our own products all over the world, also we welcome the OEM cooperation. To keep the quality be perfect and satisfy customer's requirements is our company's top target.
At present, we own more than 300 employees. Among them, engineers and technical personnel fifty six people. The high-level employees group and advanced technique help to produce the products with competitive.
Mansion would like to set up a faithful partner relationship with every friend and provide the sincere service. We have been move a new factory about 16000 SQM located within the town of Shenzhen.
