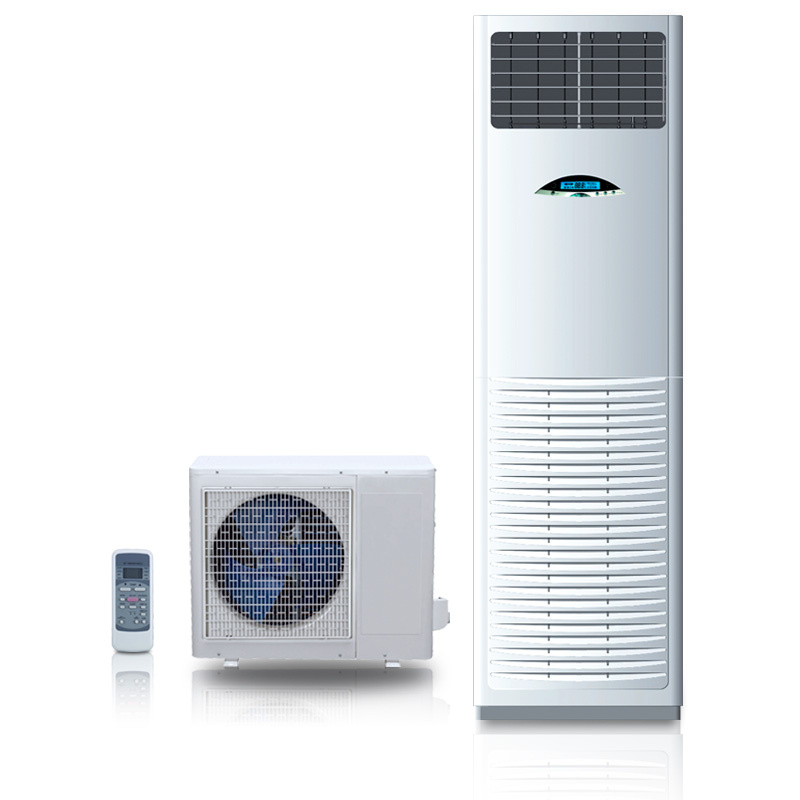

Floor Standing Type Air Conditioner With Remote Controller
Feature
1) Auti-rust cabinet, easy-cleaned panel,
2) Independent dehumidification
3) Quiet design
4) Intelligen defrosting
5) CE, UL, Energy Star...Etc approved
6) Intelligent controller, easy operation
7) Wide voltage design
8) Mmeory function
9) Dual air guide plate technology
10) Sleeping mode automatic control
11) Audio prompt diagnosis on failures
12) Timed switch-on and switch-off
Specification
| Power Supply | Ph-V-Hz | 1Ph, 220~240V, 50Hz |
| Cooling | Capacity | Btu/h | 36000 |
| Input | W | 3700 |
| Rated Current | A | 16.8 |
| EER | W/W | 2.41 |
| Heating | Capacity | Btu/h | 36000 |
| Input | W | 2900 |
| Rated Current | A | 15 |
| COP | W/W | 3.64 |
| Compressor | Model |
| LH53VBDC |
| Type |
| Rotary |
| Brand |
| MISTUBISHI |
| Indoor Noise Level(Hi/Mi/Lo) | dB(A) | 58 / 53 |
| Indoor Unit | Dimension(W*D*H) | mm | 540x379x1775 |
| Package(W*D*H) | mm | 1915x475x660 |
| Net / Gross Weight | kg | 50 / 60 |
| Outdoor Noise Level | dB(A) | 62 |
| Outdoor Unit | Dimension(W*D*H) | mm | 900x315x860 |
| Package(W*D*H) | mm | 1043x395x915 |
| Net / Gross Weight | kg | 70 / 73 |
| Refrigerant Type | g | R22 / 2600g |
| Refrigerant Piping | Liquid side / Gas Side | mm(inch) | Ø12.7 / Ø19(1/2''/3/4'') |
| Max. Refrigerant Pipw Length | m | 25 |
| Max. Difference In Level | m | 10 |
| Operation Temperature | Indoor (Cooling / Heating) | ºC | 17~32 / 0~30 |
| Outdoor (Cooling / Heating) | ºC | 18~52 / -7~24 |
| Application Area | m2 | 51-85 |
