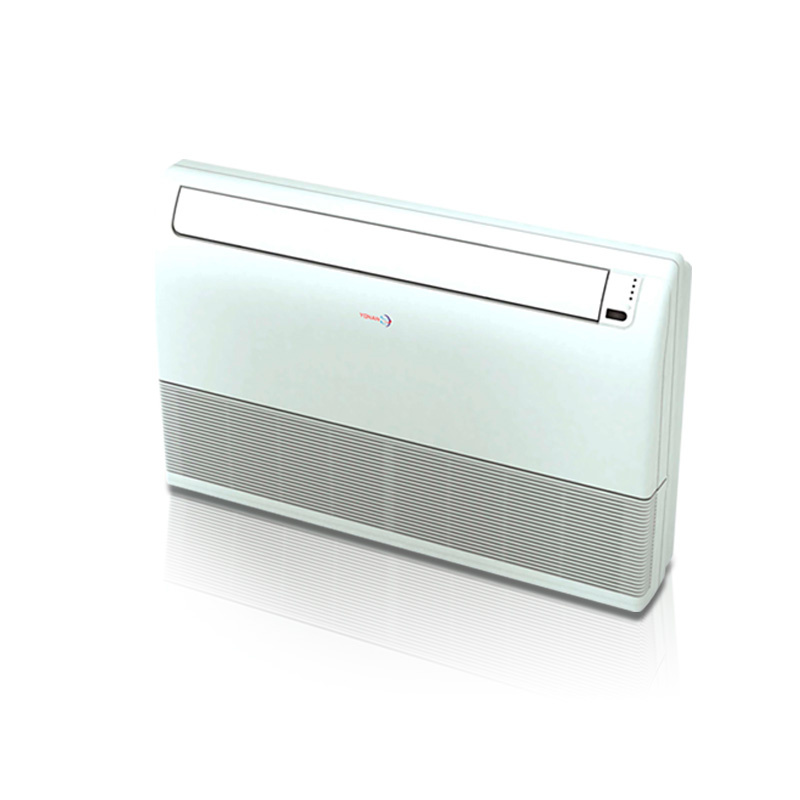

12000Btu 220~240V 50Hz Floor Ceiling Air Conditioner
Feature
1. High efficiency with R410A refrigerant, the known brand compressor and optimized design.
2. Intelligent design for easy maintenance of whole unit and replacing filter.
3. Swing torsion angles
4. The unit can be installed either horizontally on the ceiling or vertically against the wall
5. Wide angle of air flow, Auto swing assure the comfortable feeling.
6. Elegan appearance for beautiful decoration
7. Independent dehumidification
8. Low ambient cooling
Specification
Power supply | V-ph-Hz | 220~240-1-50 |
| Cooling | Capacity | Btu/h | 12000 |
| Input | W | 1260 |
| Current | A | 5.77 |
| EER | W/W | 2.79 |
| Heating | Capacity | Btu/h | / |
| Input | W | / |
| Current | A | / |
| COP | W/W | / |
| Indoor fan motor | Model |
| YSK25-6L |
| Qty |
| 1 |
| Input | W | 33.4/31.1/29.5 |
| Capacitor | uF | 1.2uF/450V |
| Speed(Hi/Med/Lo) | r/min | 756/666/592 |
| Indoor coil | Number of rows |
| 2 |
| Tube pitch(a)x row pitch(b) | mm | 21×13.37 |
| Fin spacing | mm | 1.3 |
| Fin type |
| Hydrophilic aluminum |
| Tube outside dia.and type | mm | Φ7,Inner grooved tube |
| Coil length x height x width | mm | 804×252×26.74 |
| Number of circuits |
| 3 |
| Indoor air flow(Hi/Med/Lo) | m3/h | 600/480/400 |
| Indoor noise level (sound pressure)(Hi/Med/Lo) | dB(A) | 43/41/38 |
| Throttle type |
| / |
| Indoor unit | Dimension (WxDxH) | mm | 990x660x203 |
| Packing (WxDxH) | mm | 1090x745x297 |
| Net/Gross weight | kg | 24/28.5 |
| Design pressure | MPa | 4.2/1.5 |
| Drainage water pipe diameter | mm | ODΦ25 |
| Refrigerant piping | Liquid side/Gas side | mm | Φ6.35/Φ12.7(1/4"/1/2") |
| Controller |
| RG51Q1/BGE |
| Operation temperature | Cooling | ºC | 17~32 |
| Heating | ºC | /
|
