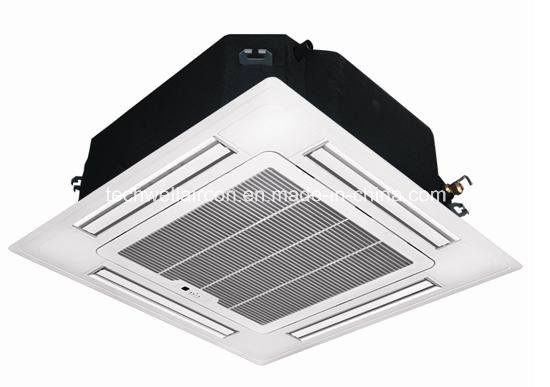

VRF air conditioners cassette type evaporating units
-Power supply: 220~240V/1pH/50Hz, 208~230V/1pH/60Hz
-Cooling capacity: 2.8kw to 16kw
-Standard controller: Remote controller
-Four ways air delivering
-Built-in drainage pipe
-Slim body, easy to be installed
| Four-way Cassette Unit |
| Model name | Power type | Capacity | Motor input | Air flow | Sound Level | ESP | Dimension (W×H×D) | Body Weight | Connecting pipe | Standard controller |
| Cooling | Heating | Packing | Body | packing | Panel | Net | Gross | Gas | Liquid | Drain |
| kW | kBtu/h | kW | kBtu/h | kW | m3/h | CFM | dB(A) | Pa | mm | mm | mm | mm | kg | kg | mm | mm | mm |
| CMV-V28Q/HR1-B | 50Hz | 2.8 | 9.5 | 3.2 | 10.9 | 0.065 | 850 | 500.000 | 35~38 | / | 920×310×960 | 840×230×893 | 1030×105×1030 | 950×50×950 | 26 | 32 | Ø12.7 | Ø6.35 | Ø25 | Remote controller |
| CMV-V28Q/HNR1-B | 60Hz |
| CMV-V36Q/HR1-B | 50Hz | 3.6 | 12.2 | 4.0 | 13.6 | 26 | 32 |
| CMV-V36Q/HNR1-B | 60Hz |
| CMV-V45Q/HR1-B | 50Hz | 4.5 | 15.3 | 5.0 | 17 | 26 | 32 |
| CMV-V45Q/HNR1-B | 60Hz |
| CMV-V56Q/HR1-B | 50Hz | 5.6 | 19.1 | 6.3 | 21.4 | 0.065 | 850 | 500 | 35~38 | 26 | 32 |
| CMV-V56Q/HNR1-B | 60Hz |
| CMV-V71Q/HR1-B | 50Hz | 7.1 | 24.2 | 8.0 | 27.2 | 0.154 | 1150 | 670 | 36~39 | 28 | 34 | Ø15.9 | Ø9.53 |
| CMV-V71Q/HNR1-B | 60Hz |
| CMV-V80Q/HR1-B | 50Hz | 8 | 27.2 | 8.8 | 30 | 28 | 34 |
| CMV-V80Q/HNR1-B | 60Hz |
| CMV-V90Q/HR1-B | 50Hz | 9 | 30.7 | 10.0 | 34.1 | 0.170 | 1800 | 1050 | 37~41 | 920×375×960 | 840×285×893 | 32 | 38 | Ø19.1 |
| CMV-V90Q/HNR1-B | 60Hz |
| CMV-V100Q/HR1-B | 50Hz | 10 | 34.1 | 11.0 | 37.5 | 32 | 38 |
| CMV-V100Q/HNR1-B | 60Hz |
| CMV-V112Q/HR1-B | 50Hz | 11.2 | 38.2 | 12.5 | 42.6 | 32 | 38 |
| CMV-V112Q/HNR1-B | 60Hz |
| CMV-V125Q/HR1-B | 50Hz | 12.5 | 42.6 | 14.0 | 47.7 | 32 | 38 |
| CMV-V125Q/HNR1-B | 60Hz |
| CMV-V140Q/HR1-B | 50Hz | 14.0 | 47.7 | 15.0 | 51.1 | 32 | 38 |
| CMV-V140Q/HNR1-B | 60Hz |
| CMV-V160Q/HR1-B | 50Hz | 16.0 | 54.5 | 17.0 | 58 | 32 | 38 |
| CMV-V160Q/HNR1-B | 60Hz |
| Four-way Cassette Unit (Compact type) |
| Model name | Power type | Capacity | Motor input | Air flow | Sound Level | ESP | Dimension (W×H×D) | Body Weight | Connecting pipe | Standard controller |
| Cooling | Heating | Packing | Body | packing | Panel | Net | Gross | Gas | Liquid | Drain |
| kW | kBtu/h | kW | kBtu/h | kW | m3/h | CFM | dB(A) | Pa | mm | mm | mm | mm | kg | kg | mm | mm | mm |
| CMV-V22Q4/HR1-B | 50Hz | 2.2 | 7.5 | 2.5 | 8.5 | 0.065 | 500 | 290 | 35~38 | / | 745×375×675 | 633×275×580 | 750×95×750 | 650×30×650 | 23 | 25 | 9.53 | 6.35 | 25 | Remote controller |
| CMV-V22Q4/HNR1-B | 60Hz |
| CMV-V28Q4/HR1-B | 50Hz | 2.8 | 9.5 | 3.2 | 10.9 | 23 | 25 |
| CMV-V28Q4/HNR1-B | 60Hz |
| CMV-V36Q4/HR1-B | 50Hz | 3.6 | 12.2 | 4.0 | 13.6 | 0.070 | 600 | 350 | 35~38 | 26 | 28 | 12.7 |
| CMV-V36Q4/HNR1-B | 60Hz |
| CMV-V45Q4/HR1-B | 50Hz | 4.5 | 15.3 | 5.0 | 17 | 0.075 | 750 | 440 | 35~39 | 26 | 28 |
| CMV-V45Q4/HNR1-B | 60Hz |
