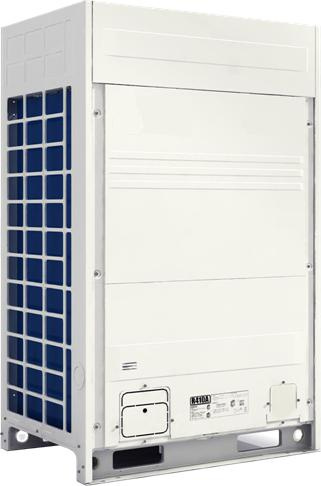

VRF air conditioners condensing units
-DC-inverter, R410A gas
-Power supply: 380~415V/3pH/50Hz
-Modular outdoor units design:
5 basic modules: 8HP, 10HP, 12HP, 14HP and 16HP.
Free combination of outdoor units
Max capacity of combination up to 64HP(180kw)
-Wide operation temperature range: -20ºC~50ºC
-Stable cooling or heating performance
-With DC fan motor, low noise operation
-Anti snow function, intelligent defrosting.
-Intelligent defrosting
-Longest pipe 200 meters, Max height difference: 70 meters.
| HP | Model name | Basic module | Capacity (kW) | Max. indoor unit quantity |
| 8HP | 10HP | 12HP | 14HP | 16HP | Cooling | Heating |
| 8 | CMV-V252W/ZR1-B | * | | | | | 25.2 | 27.0 | 13 |
| 10 | CMV-V280W/ZR1-B | | * | | | | 28.0 | 31.5 | 16 |
| 12 | CMV-V335W/ZR1-B | | | * | | | 33.5 | 37.5 | 16 |
| 14 | CMV-V400W/ZR1-B | | | | * | | 40.0 | 45.0 | 16 |
| 16 | CMV-V450W/ZR1-B | | | | | * | 45.0 | 50.0 | 20 |
| 18 | CMV-V532W/ZR1-B | * | * | | | | 53.2 | 58.5 | 20 |
| 20 | CMV-V560W/ZR1-B | | ** | | | | 56.0 | 63.0 | 24 |
| 22 | CMV-V615W/ZR1-B | | * | * | | | 61.5 | 69.0 | 24 |
| 24 | CMV-V680W/ZR1-B | | * | | * | | 68.0 | 76.5 | 28 |
| 26 | CMV-V730W/ZR1-B | | * | | | * | 73.0 | 81.5 | 28 |
| 28 | CMV-V785W/ZR1-B | | | * | | * | 78.5 | 87.5 | 28 |
| 30 | CMV-V850W/ZR1-B | | | | * | * | 85.0 | 95.0 | 32 |
| 32 | CMV-V900W/ZR1-B | | | | | ** | 90.0 | 100.0 | 32 |
| 34 | CMV-V960W/ZR1-B | | ** | | * | | 96.0 | 108.0 | 36 |
| 36 | CMV-V1010W/ZR1-B | | ** | | | * | 101.0 | 113.0 | 36 |
| 38 | CMV-V1065W/ZR1-B | | * | * | | * | 106.5 | 119.0 | 36 |
| 40 | CMV-V1130W/ZR1-B | | * | | * | * | 113.0 | 126.5 | 42 |
| 42 | CMV-V1180W/ZR1-B | | * | | | ** | 118.0 | 131.5 | 42 |
| 44 | CMV-V1235W/ZR1-B | | | * | | ** | 123.5 | 137.5 | 42 |
| 46 | CMV-V1300W/ZR1-B | | | | * | ** | 130.0 | 145.0 | 48 |
| 48 | CMV-V1350W/ZR1-B | | | | | *** | 135.0 | 150.0 | 48 |
| 50 | CMV-V1432W/ZR1-B | * | * | | | ** | 143.2 | 158.9 | 54 |
| 52 | CMV-V1460W/ZR1-B | | ** | | | ** | 146.0 | 163.0 | 54 |
| 54 | CMV-V1515W/ZR1-B | | * | * | | ** | 151.5 | 169.0 | 54 |
| 56 | CMV-V1580W/ZR1-B | | * | | * | ** | 158.0 | 176.5 | 58 |
| 58 | CMV-V1630W/ZR1-B | | * | | | *** | 163.0 | 181.5 | 58 |
| 60 | CMV-V1685W/ZR1-B | | | * | | *** | 168.5 | 187.5 | 58 |
| 62 | CMV-V1750W/ZR1-B | | | | * | *** | 175.0 | 195.0 | 64 |
| 64 | CMV-V1800W/ZR1-B | | | | | **** | 180.0 | 200.0 | 64 |
