Enping Yongfeng Audio Equipment Factory >> Ap-260

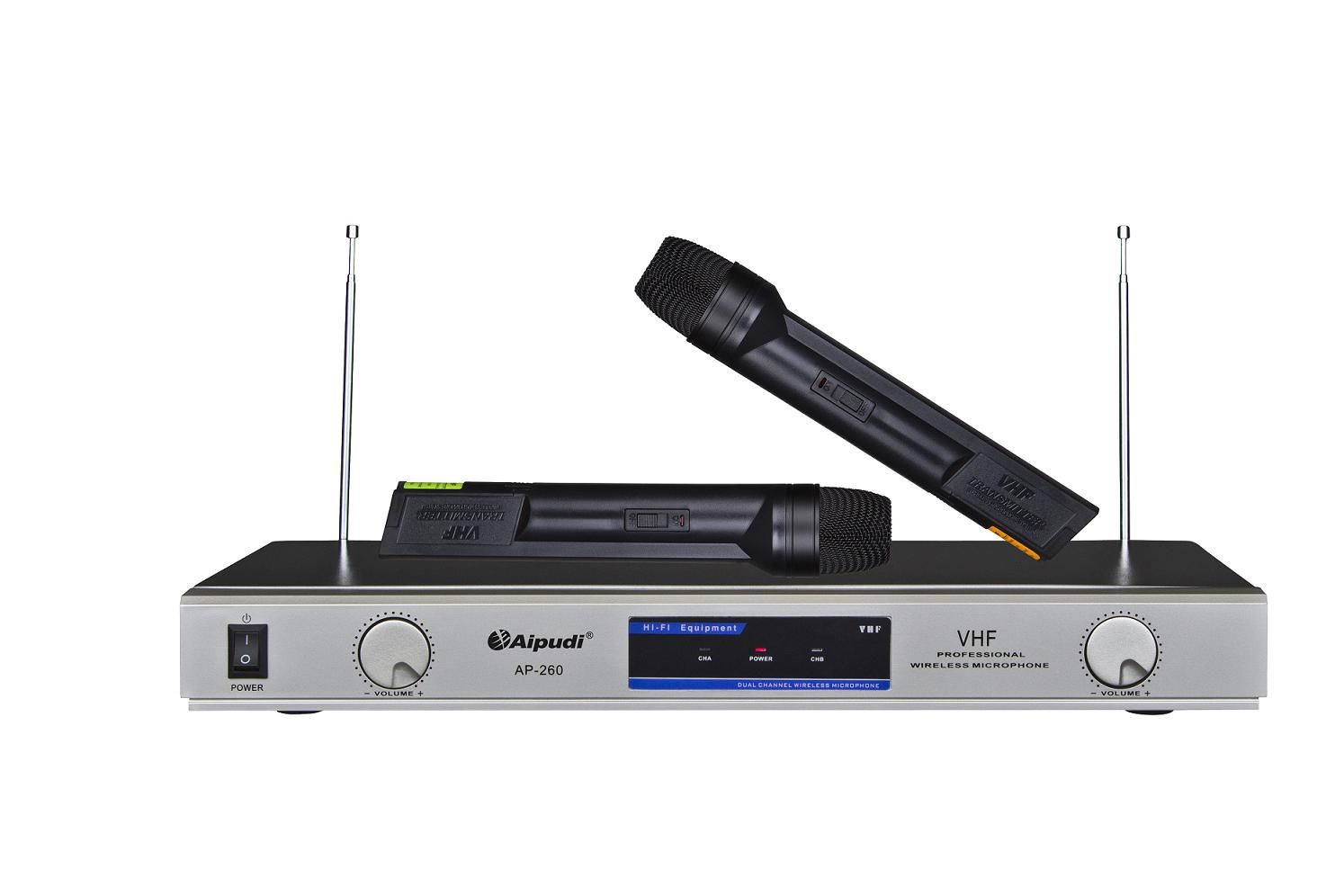

Ap-260

Ap-260
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 300/Piece
Pay Type: T/T

Product Description

Overall System
Audio Frequency Range: 40~15000Hz
Dynamic Range: ≥ 100dB
System Distortion: ≤ 0.5%
Signal-to-Noise Ratio: ≥ 100dB
Operating Range: Appr. 100M
Operating Temperature Range: -10° C~55° C
Carrier Frequency Range: 180~280MHz

Receiver
Sensitivity(S/N=30dB): >2mV
Image Rejection: >40dB
De-Emphasis: 50μS
Audio Output Impedance: 600Ω± %
Audio Output Level: 0~0.5V
Power Supply: AC220V~50Hz
Current Consumption: <5W
Dimensions: 423× 220× 58mm
Weight: Aprr. 2300g
Transmitter
Frequency Stability: ± 0.005%
RF Output Power: ≤ 10mW
Spurious Rejection: >40dB
Modulation Mode: FM
Maximum Deviation Range: ± 25KHz
Microphone Mode: Dynamic
Pre-Emphasis: 50μS
Power Supply: DC9V
Current Consumption: <35mA
Dimensions: Φ53× 250mm
Weight: Aprr. 235g (No Batt. )
ENPING YONGFENG AUDIO EQUIPMENT FACTORY is a research and development, design. Production and sales of high-tech enterprises. Specializing in the production of UHF, VHF wireless microphone, wired microphone, condenser microphone session, audio mixer and other equipment.

For the operation of the principle of sincere welcome to thirsty customers at home and abroad come to discuss business, or OEM, ODM, such as cooperation, create brilliant.
