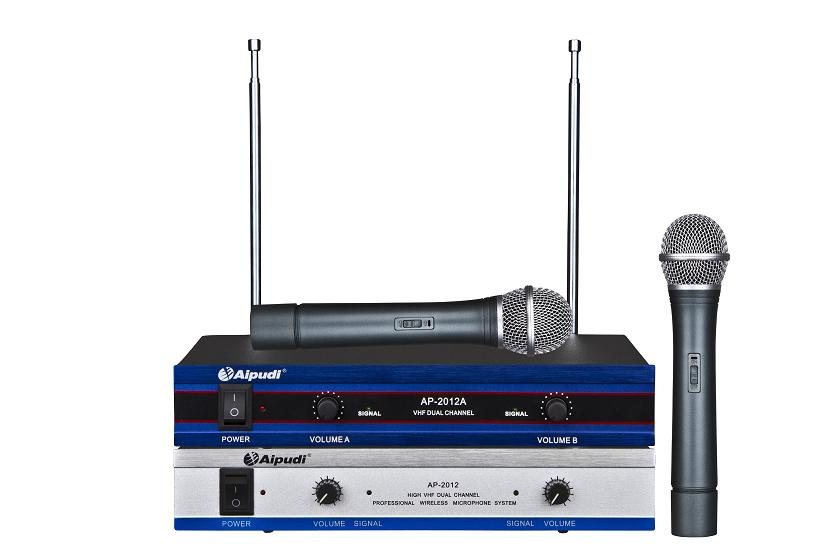

Ap-2012/Ap-2012A

Name: Ap-2012/Ap-2012A
Brand: ec-portal.com
SKU: 738799115
Availability: InStock
Rating: 4.4 (58 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	300/Piece
Pay Type:	T/T

Send Inquiry

Showroom Product Company Profile

Markets:	North America,South America,Southeast Asia,Africa,Mid East,Eastern Asia

Product Description

Overall System
Audio Frequency Range: 80~12000Hz
Dynamic Range: ≥ 80dB
System Distortion: ≤ 1%
Signal-to-Noise Ratio: ≥ 80dB
Operating Range: Appr. 80-100M
Operating Temperature Range: 5° C~45° C
Carrier Frequency Range: 180~280MHz
Receiver
Sensitivity(S/N=30dB): >2mV
Image Rejection: >40dB
De-Emphasis: 50μS
Audio Output Impedance: 600Ω
Audio Output Level: 0~0.5V
Power Supply: AC220V~50Hz
Current Consumption: <5W
Dimensions: 210× 155× 45mm
Weight: Aprr. 700g
Transmitter
Frequency Stability: ± 0.005%
RF Output Power: ≤ 30mW
Spurious Rejection: >40dB
Modulation Mode: FM
Maximum Deviation Range: ± 25KHz
Microphone Mode: Dynamic
Pre-Emphasis: 50μS
Power Supply: DC9V
Current Consumption: <30mA
Dimensions: Φ53× 250mm
Weight: Aprr. 175g (No Batt. )

ENPING YONGFENG AUDIO EQUIPMENT FACTORY is a research and development, design. Production and sales of high-tech enterprises. Specializing in the production of UHF, VHF wireless microphone, wired microphone, condenser microphone session, audio mixer and other equipment.

For the operation of the principle of sincere welcome to thirsty customers at home and abroad come to discuss business, or OEM, ODM, such as cooperation, create brilliant.
