| Prod Model: |
BR650D20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Advertising |
Product Description
Product Description
65 Inches Ultra Low Power High Brigthness (2000nits) LED Backlight LCD Panel

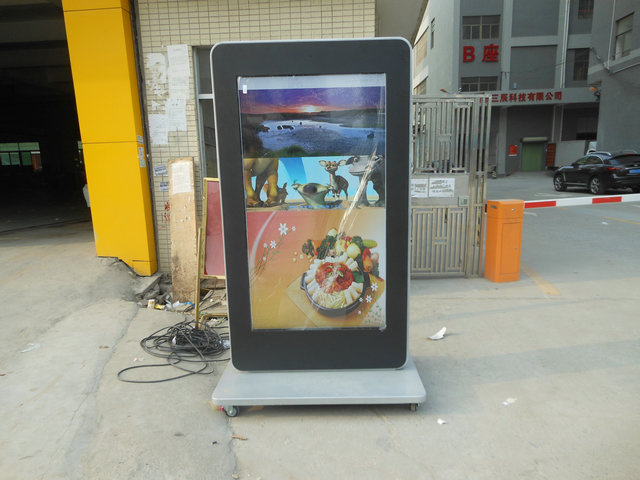

The outdoor sunlight visible high brightness panel for advertising display is a kind of LCD panel with high efficiency, playing the video in the open air and Visibility in sunlight. This product adopts the latest LED backlight source which makes the brightness of the products up to 2500nits in low power working state. Under outdoors high brightness's environment, user can read the displaying content clearly. It also can adjust the brightness and the contrast ratio through the screen menu in order to use under the general brightness environment. It is suitable for the publicity of the product image and it can pass a full range of products information and promotion information to the consumers, especially for placed in the supermarket, kitchen window to advertise. The high brightness backlight module of this product is made by our independent research and development, the driver with automatic temperature control technology, automatic backlight compensation technology, and automatic brightness correction technology.
Features:
High brightness LED-backlight system is adopted, with high luminous efficiency and excellent color saturation
Ultra-high dynamic contrast ratio, Colorful, delicate dynamic effects, high definition, bright colors, contrast obviously
Ultra-fast response time, unique black field insert and backlight scanning technology
Automatic brightness adjustment system, with the environment brightness changes to change
Enhances the visual performance of the dynamic picture
Unique heating system guarantees extremely low temperature requirements
With the function of automatic eliminating blur, guarantees the LCD screen long-term use
High reliability, good stability, especially for working under harsh environments
Professional Driver makes screen display more clear and stable and a better color performance
Conform to industrial components and meet long time continuous use
|
Active screen size |
64.53 inches diagonal |
|
Outline Dimension |
1508.0(W) X 878.0(H) X 60.0(D) mm(Typ. ) |
|
Pixel Pitch |
0.774 mmx 0.774 mm |
|
Pixel Format |
1920 horiz. by 1080 vert. Pixels. RGB stripe arrangement |
|
Display Colors |
16.7Mcolors |
|
Contrast ratio |
4000: 1 |
|
Luminance, white |
2000 nits(Typ. Center 1 point) |
|
Power Consumption |
< 930 |
Watts(Typ. ) |
|
Visible angle |
178/178(° ) |
|
Aspect Ratio |
16: 9 |
|
Response time(S) |
8(ms) |
|
Display operating mode |
Transmissive mode, normally white |
|
Surface treatments |
Hard coating (3H), Anti-glare treatment of the front polarizer |
Berise Technology (Shenzhen) Limited, is a Hi-Tech company specializing in producing High Brightness LED Backlight LCD, optics binding, LCD panel cutting technology and the other general reinforcement technique etc.
Products are mainly divided into two categories: outdoor advertising and military reinforcement displays
In outdoor display, The products of our company all used the top High Brightness LED backlight module and DID splicing techniques breaking the monopoly of foreign technology and making the popularity of home-based LED possible.
Now we have the patents in controlling the core technologies of the backlight module. We all inherit the management philosophy of "Rise in Shenzhen, Service the global"and innovate continuously for excellence in technique and service. We are making every effort to become the most powerful and the most effective enterprise in the LED backlight field. Because of the hi-quality and high-rank displaying effect, our products received a considerable acclaim. And we also have estabished a good partnership with some major industry, e. G. TCL and Zhuhai Satow ect
In military reinforcement display products, after years of development, has a number of patented technologies, products cover a wide range, meet the requirements of multiservice to display products
optics binding and optical coating technology, can greatly improve the visibility of the display product in the sun, product vibration resistance and the characteristics of low pressure, at the same time can prevent the inside the product of the fog; Independent research and development of the LCD panel cutting technology, and is not restricted by space, according to the customer request custom display screens of all sizes; LED backlight technology, expanding the product color gamut space, improves the performance of vibration resistance, improves temperature characteristics of the product LED; high-performance, high-bandwidth military board technology, adopted FPGA research and development of IP technology, which can realize the 2 D / 3 D graphics generation, it can realize pip, pop, color key, overlay drafting, Image fusion such as a variety of display mode, can support up to 4090 * 2048 resolution
