General description:

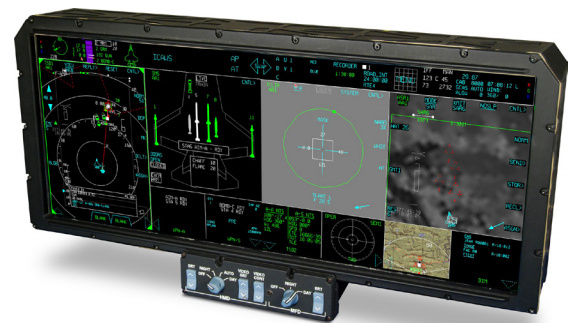

This is a large area avionics display(LAAD) which is an open system architecture compatible multi-functional airborne display. The LAAD presents clear, crisp, high-fidelity graphics and video overlays/windows onto a separately addressable, left and right 1280x1024 displays via one, monolithic 2560x1024 active matrix LCD
Key features:
Open system architecture( OSA) compatible
Presents crisp, clear, high fidelity graphics and video overlays/ windows,
Dual separately addressable left and right 1280x1024 displays via one, monolithic 2560x1024 AMLCD
Can be "dumb" display only device or "smart", with internal graphics and systems processing
Optical ARINC 818, video inputs, touch screen, MFD bezel
|
Optical performance |
|
Viewable Area |
20.0"(w)x8.0"(h) |
|
Addressability |
Flexible autoscaling |
|
Backlight |
LED |
|
Resolution |
2560x1024(Dual left/Right 1280x1024)
8 bit color |
|
Luminance |
>890nits |
|
Viewing angle |
90 horizontal/vertical inherent, |
|
Touch screen |
Dual infrared, anti-reflective coating |
|
Contrast ratio |
>10:1(high ambient lighting) |
|
NVIS |
Type II, class B(MIL-L-85762) |
|
Physical description |
|
Dimensions |
21.60" ( w ) x9.55"(H)x5.0"(d) |
|
Weight |
20 lbs minimum |
|
Cooling |
internal fans |
|
Primary Power |
28VDC,5VAC bezel, 250 watts nominal |
|
Bezel configuration |
MFD, custom, inclinometer |
|
Functional description |
|
Video interfaces |
DVI ,ARINC 818 |
|
Signal interfaces |
RS-232/422,discretes |
|
|
Optical:MIL-STD-1553 |
|
|
ARINC 429/453/708A,RS-232/422/485,
Fibre Channel, IEEE-1394,Ethernet |
|
Evironmental performance |
|
Temperature |
operating:-40 to +71 celcius
storage:-54 to +85 celcius |
