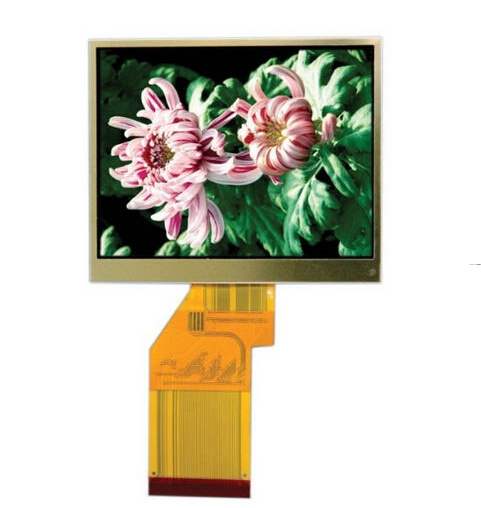

3.5" TFT LCD Module TM035kbh02 Tianma LCD Module Display
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
100/Piece |
| Pay Type: |
T/T |
| Module number | TM035KBH02 |
| Resolution | 320(RGB) x 240 |
| Pixel Pitch | 0.219 x 0.219 (mm) |
| Active Area | 70.08 x 52.56 (mm) |
| View angle | R/L/U/D 60/60/40/60(Deg) |
| Mode | TN |
| LCD Surface | Anti-glare,3H |
| Number of Colors | 16.7M |
| Electrical Interface | RGB/CCIR656/601 |
| Brightness | 350 cd/m2 |
| Contrast ratio | 350:1 |
| Outline dimension | 76.9 x 63.9 x 4.00 (mm) |
| Gross weight | 38.3g (Typ.) |
| Backlight | WLED |
| Supply Voltage (V) | 3.3V |
| Response time | 25(ms) |
| Operate temperature | -20-60 (°C) |
| Storage temperature | -30-70 (° |
TM035KBH02
with original touch integrated
WLED backlight
100%original brand
RoHS compliant
Yaosheng provide total solutions for LCD panels and modules. We support both monochrome STNs and full-color TFT LCDs. We provide full customized monochrome STN, and semi-customized TFT modules. We are supplying a wide variety of LCD modules to meet the ever-growing demands.
Yaosheng Solutions get strong support from Tianma, Truly, and Innolux, we provide flexible support to our customers, fast delivery, flexible MOQ, and competitive cost.
Please check the following website to find the products supported by us.
Our products include LCD panels of TN, STN, FSTN; LCMs with COG, COB, TAB; And TFT LCD modules.
Custom LCD Panels: Segment, icon, chracter, and mixed
Custom / Standard Character: 16X1, 16X2, 16X4, 20X2, 20X4, 24X2, 40X2, 40X4
Custom / Standard Graphic: 128X64, 128X128, 160X128, X160X160, 240X128, 240X64, 320X240
Semi-custom / Standard TFT Modules: 2.8", 3.5", 4.3", 4.7", 5.0", 7.0", 10.4"
All of our displays are RoHS compliant, which have been used in wide range of applications: Communication, Medical, Instrumentation, Metering, and Industrial applications.
We endeavour to serve our customers with Quality Products, Competitive Cost, Excelled Service, and Fast Delivery.
