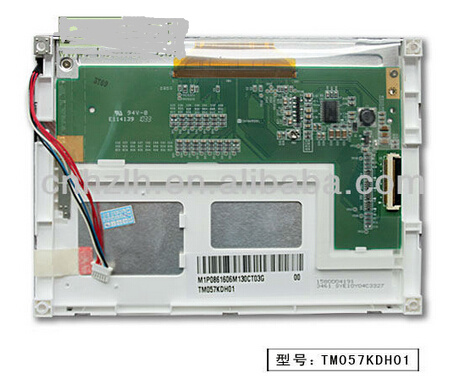

LCD Display TM057kdh01
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
100/Piece |
| Pay Type: |
T/T |
| Prod Model: |
TM057KDH01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Industry: |
Medical |
| Application: |
Indoor |
| Type: |
TFT |
Product Description
Quick Details
Place of Origin: |
Shanghai China (Mainland) |
Brand Name: |
Tianma |
Model Number: |
TM057KDH01 |
Type: |
TFT |
Brightness: |
400cd/m2 |
Resolution (pixel): |
320(RGB) x 240 |
TM057KDH01 Size: |
5.7 inch |
Pixel Pitch (mm): |
0.360 x 0.360 |
Viewing Angle (R/L/U/L): |
70/70/70/60 |
Light Source: |
LED |
Contrast Ratio: |
500:1 |
Interface: |
Parallel RGB(1 ch, 6-bit) |
Temperature range: |
-20 to +70°C |
Weight: |
160g (Typ.) |
Specifications
Tianma 5.7 inch tft lcd display TM057KDH01:
1)Ideal for industrial use;
2)Surface:anti-glare;
3)WLED backlight.
Tianma industrial 5.7 inch tft lcd display TM057KDH01:
Specification:
Model |
TM057KDH01 |
Size | 5.7" |
| Resolution (pixel) |
320(RGB) x 240 |
Active Area(mm) |
115.20 x 86.40 |
Pixel Pitch (mm) |
0.360 x 0.360 |
Display Mode |
TM with Normally White |
Uniformity(%) |
80 |
NTSC(%) |
50 |
Color Depth |
6 bits |
Viewing Angle (R/L/U/L) |
70/50/70/70 |
Brightness (cd/m²) | 400 |
| Contrast Ratio | 500:1 |
| Response Time (ms) | 25(on+off) |
| Outline Dimension (mm) |
144.00x104.60x12.30 |
Weight (g) |
TBD |
Light Source |
LED |
Temperature Range |
operating: -30 to +85°C
storage: -30 to +85 °C |
Humidity |
operation: 90 (%RH)
storage: 90 (%RH) |
Surface Treatment |
Anti-Glare, Hardness 3H |
Electrical Interface |
RGB 18 bit |
ROHS Compliance |
ROHS Compliance |
Yaosheng provide total solutions for LCD panels and modules. We support both monochrome STNs and full-color TFT LCDs. We provide full customized monochrome STN, and semi-customized TFT modules. We are supplying a wide variety of LCD modules to meet the ever-growing demands.
Yaosheng Solutions get strong support from Tianma, Truly, and Innolux, we provide flexible support to our customers, fast delivery, flexible MOQ, and competitive cost.
Please check the following website to find the products supported by us.
Our products include LCD panels of TN, STN, FSTN; LCMs with COG, COB, TAB; And TFT LCD modules.
Custom LCD Panels: Segment, icon, chracter, and mixed
Custom / Standard Character: 16X1, 16X2, 16X4, 20X2, 20X4, 24X2, 40X2, 40X4
Custom / Standard Graphic: 128X64, 128X128, 160X128, X160X160, 240X128, 240X64, 320X240
Semi-custom / Standard TFT Modules: 2.8", 3.5", 4.3", 4.7", 5.0", 7.0", 10.4"
All of our displays are RoHS compliant, which have been used in wide range of applications: Communication, Medical, Instrumentation, Metering, and Industrial applications.
We endeavour to serve our customers with Quality Products, Competitive Cost, Excelled Service, and Fast Delivery.
