Prod Model: |
W2-M202 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Combination: |
iPod |
Placement: |
Dashboard |
Certification: |
CE |
Voltage: |
12/24V |
Screen Size: |
6.2' |
Product Description

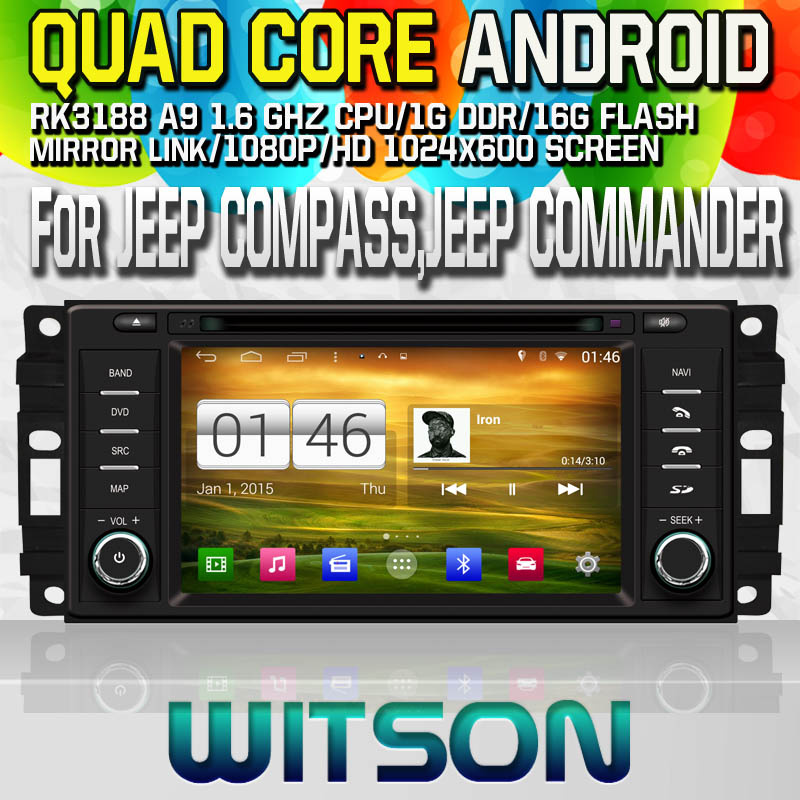

W2- C202 For JEEP COMPASS,JEEP COMMANDER,JEEP GRAND CHEROKEE(2008-2010),DODGE CALIBER,
DODGE COLIBER,
CHRYSLER PTCruiser,CHRYSLER Grand Voager, CHRYSLER 300C,CHRYSLER SEBRING(2008-2011)
W2- C202-1 For JEEP GRAND CHEROKEE(2011),DODGE JOURNEY (2008-2011)
W2- C202-2 For JEEP Wrangler
Android 4.4.4 System
CPU: Rockchip 3188 Quad-Core 1.6GHZ Frequency
CAPACITIVE Screen
Mirror Link Function (One way control,Android-Support Android phone version 4.2 and above. iPhone-Support iOS 7.0 and above)
Built In 16GB Inand
1G DDR3 RAM Memory
1080P HD Video
External Bluetooth Microphone
Built-In WiFi Module
Built In ATV Function
Front DVR Camera-Operate by Touch Screen of DVD (High Solution & Speed) (DVR Camera Optional-Click For Details)
DVB-T MPEG4 Box-Operate by Touch Screen of DVD (DVB-T Box Optional-Click For Details)
Support External 3G Dongle
Support HD 2D & 3D Games
Front And Rear Camera Can Work Together
Support Thousands Of Softwares Downloading From Android Market
Support SD/MMC/SDHC SD Ports, SDHC Supports Max 64G, HDD
S160 Platform Specify Info of Hardware and System |
Type | Name | Description |
Main CPU | RK3188 |
CPU main frequency | Frequency 1.6GHZ | True Quad-Core Processors, Increase performance markedly |
ROM | DDR III 1G | Standard ROM |
Flash/harddisc capacitance | INAND FLASH 16G | Very large memory |
Screen size | 6.2" 16:9 | 800*480 screen |
Color | 65000 color | Colorful display |
Display screen | Mirror surface high definition and high transmittance LCD |
OS | ANDROID 4.4.4 | Fast response, stable system |
Touch panel | Capacitive multi touch screen |
Display | Support high-definition screen, support LVDS input |
Network | Connect external 3G/4G network card) |
GPS receiver | Frequency:1575.42MHZ C/A CODE |
Protocol standard:NMEA-0183 V3.01 |
Channel - 66 channels for searching satellite, 22 channels for tracking. | Tracking sense: -164dBm |
Locate:3m 2D RMS | Receivermodule:G591C GPS1613 |
BT module | Working frequency:2.402GHZ-2.480GHZ ISM Band |
MIC sense:-42dB | BC6 Bluetooth module BT MDC732 |
Radio | Radio module 7706 IC |
Video decoder | All format decoding,support 1080P |
Audio Sounds(import) | America TDA 7415CB(Better sounds) |
Amplifier IC(import) | Amplifier IC (TDA 7851L); High power, low dissipation |
DVD Mechanism | Specification | LE CHI DVD Mechanism |
Optical head | Sanyo 860C |
Remark: |
1.System updates: no other equipment just insert the SD card can upgrade system, interface, MCU, Bluetooth, canbus program and etc; |
2.Bigscreen machine have no Traverse. |
